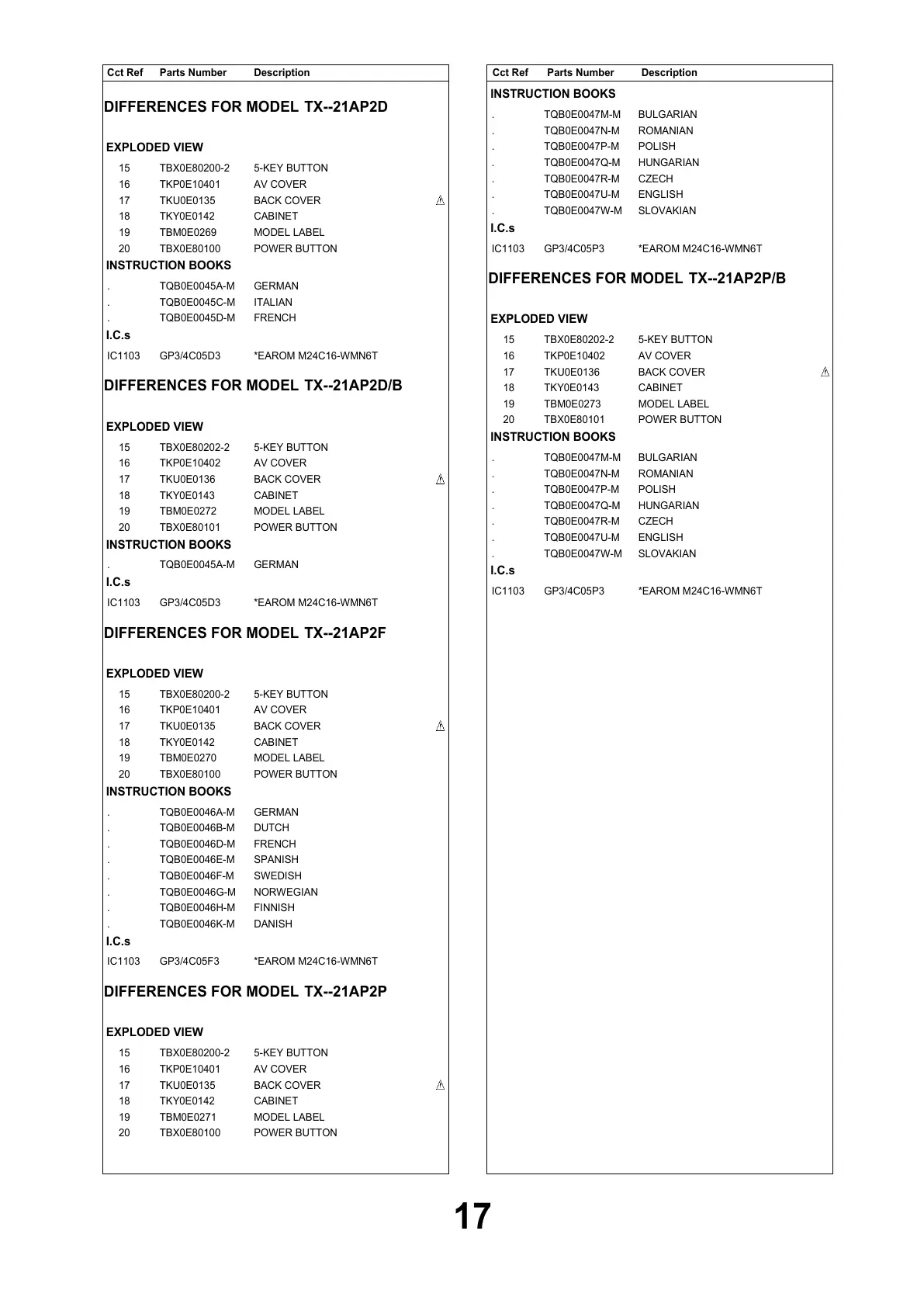

Panasonic TX-21AP2D - Page 17

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
DIFFERENCES FOR MODEL TX--21AP2D
EXPLODED VIEW
5-KEY BUTTON 15 TBX0E80200-2
AV COVER 16 TKP0E10401
BACK COVER 17 TKU0E0135
CABINET 18 TKY0E0142
MODEL LABEL 19 TBM0E0269
POWER BUTTON 20 TBX0E80100
INSTRUCTION BOOKS
GERMAN . TQB0E0045A-M
ITALIAN . TQB0E0045C-M
FRENCH . TQB0E0045D-M
I.C.s
*EAROM M24C16-WMN6TIC1103 GP3/4C05D3
DIFFERENCES FOR MODEL TX--21AP2D/B
EXPLODED VIEW
5-KEY BUTTON 15 TBX0E80202-2
AV COVER 16 TKP0E10402
BACK COVER 17 TKU0E0136
CABINET 18 TKY0E0143
MODEL LABEL 19 TBM0E0272
POWER BUTTON 20 TBX0E80101
INSTRUCTION BOOKS
GERMAN . TQB0E0045A-M
I.C.s
*EAROM M24C16-WMN6TIC1103 GP3/4C05D3
DIFFERENCES FOR MODEL TX--21AP2F
EXPLODED VIEW
5-KEY BUTTON 15 TBX0E80200-2
AV COVER 16 TKP0E10401
BACK COVER 17 TKU0E0135
CABINET 18 TKY0E0142
MODEL LABEL 19 TBM0E0270
POWER BUTTON 20 TBX0E80100
INSTRUCTION BOOKS
GERMAN . TQB0E0046A-M
DUTCH . TQB0E0046B-M
FRENCH . TQB0E0046D-M
SPANISH . TQB0E0046E-M
SWEDISH . TQB0E0046F-M
NORWEGIAN . TQB0E0046G-M
FINNISH . TQB0E0046H-M
DANISH . TQB0E0046K-M
I.C.s
*EAROM M24C16-WMN6TIC1103 GP3/4C05F3
DIFFERENCES FOR MODEL TX--21AP2P
EXPLODED VIEW
5-KEY BUTTON 15 TBX0E80200-2
AV COVER 16 TKP0E10401
BACK COVER 17 TKU0E0135
CABINET 18 TKY0E0142
MODEL LABEL 19 TBM0E0271
POWER BUTTON 20 TBX0E80100
INSTRUCTION BOOKS
BULGARIAN . TQB0E0047M-M
ROMANIAN . TQB0E0047N-M
POLISH . TQB0E0047P-M
HUNGARIAN . TQB0E0047Q-M
CZECH . TQB0E0047R-M
ENGLISH . TQB0E0047U-M
SLOVAKIAN . TQB0E0047W-M
I.C.s
*EAROM M24C16-WMN6TIC1103 GP3/4C05P3
DIFFERENCES FOR MODEL TX--21AP2P/B
EXPLODED VIEW
5-KEY BUTTON 15 TBX0E80202-2
AV COVER 16 TKP0E10402
BACK COVER 17 TKU0E0136
CABINET 18 TKY0E0143
MODEL LABEL 19 TBM0E0273
POWER BUTTON 20 TBX0E80101
INSTRUCTION BOOKS
BULGARIAN . TQB0E0047M-M
ROMANIAN . TQB0E0047N-M
POLISH . TQB0E0047P-M
HUNGARIAN . TQB0E0047Q-M
CZECH . TQB0E0047R-M
ENGLISH . TQB0E0047U-M
SLOVAKIAN . TQB0E0047W-M
I.C.s
*EAROM M24C16-WMN6TIC1103 GP3/4C05P3
17
