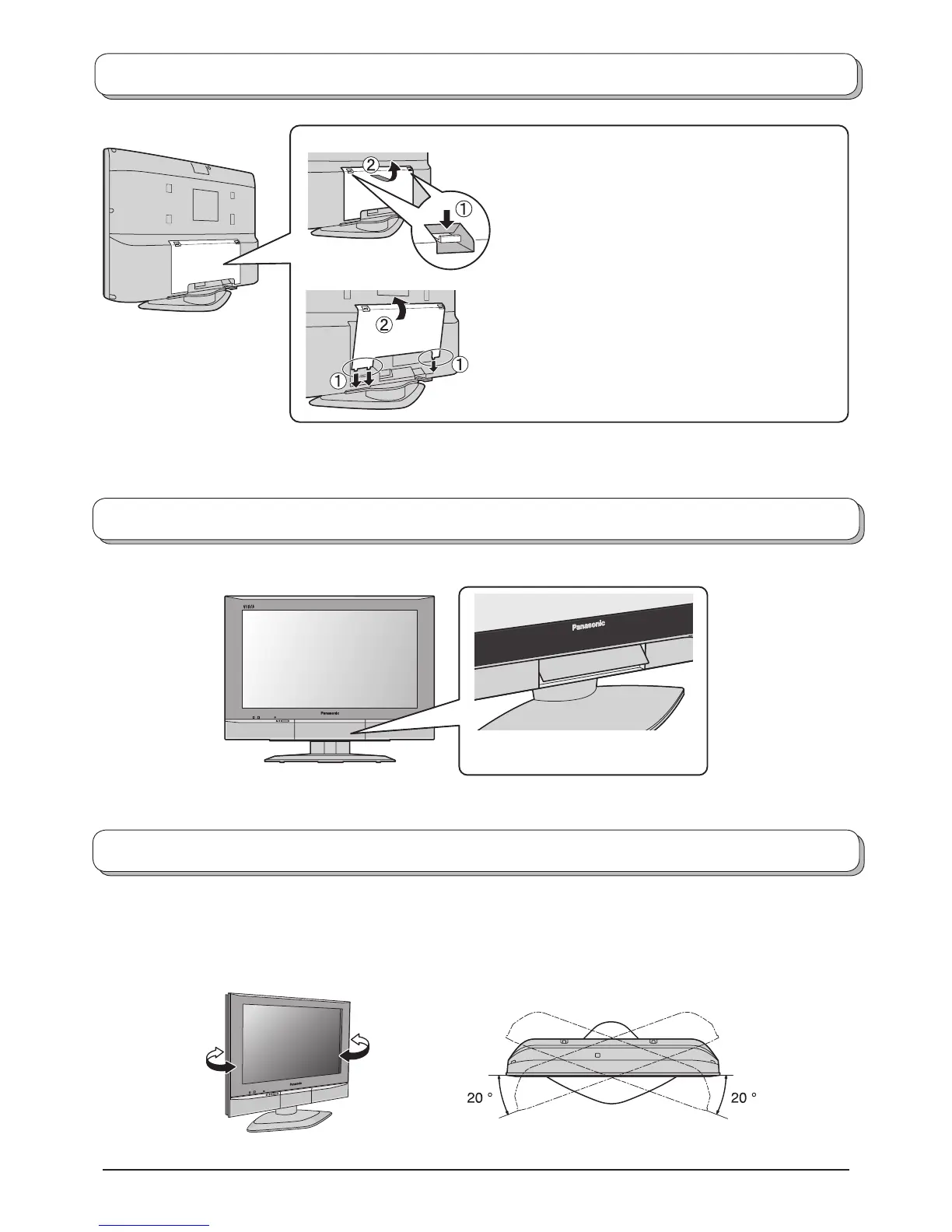

Adjust the LCD panel to your desired angle.
The LCD panel can be adjusted the following direction:
20° Right
20° Left
How to use the LCD stand
(View from the top)
Cable cover removal and fi tting
How to open the front cover
Note:
To avoid interference appearing on the screen, do not bundle the RF cable and mains lead together.
Removal
Fitting
1. Push down hooks and pull the cover slightly towards
yourself to disengage the claws (at 3 points).
2. Slowly pull out in the downward direction.
1. Insert the claws (at 3 points) at the bottom end.
2. Push until it clicks.
PULL
PULL
Raise the lower part of the door
labeled “PULL”.
