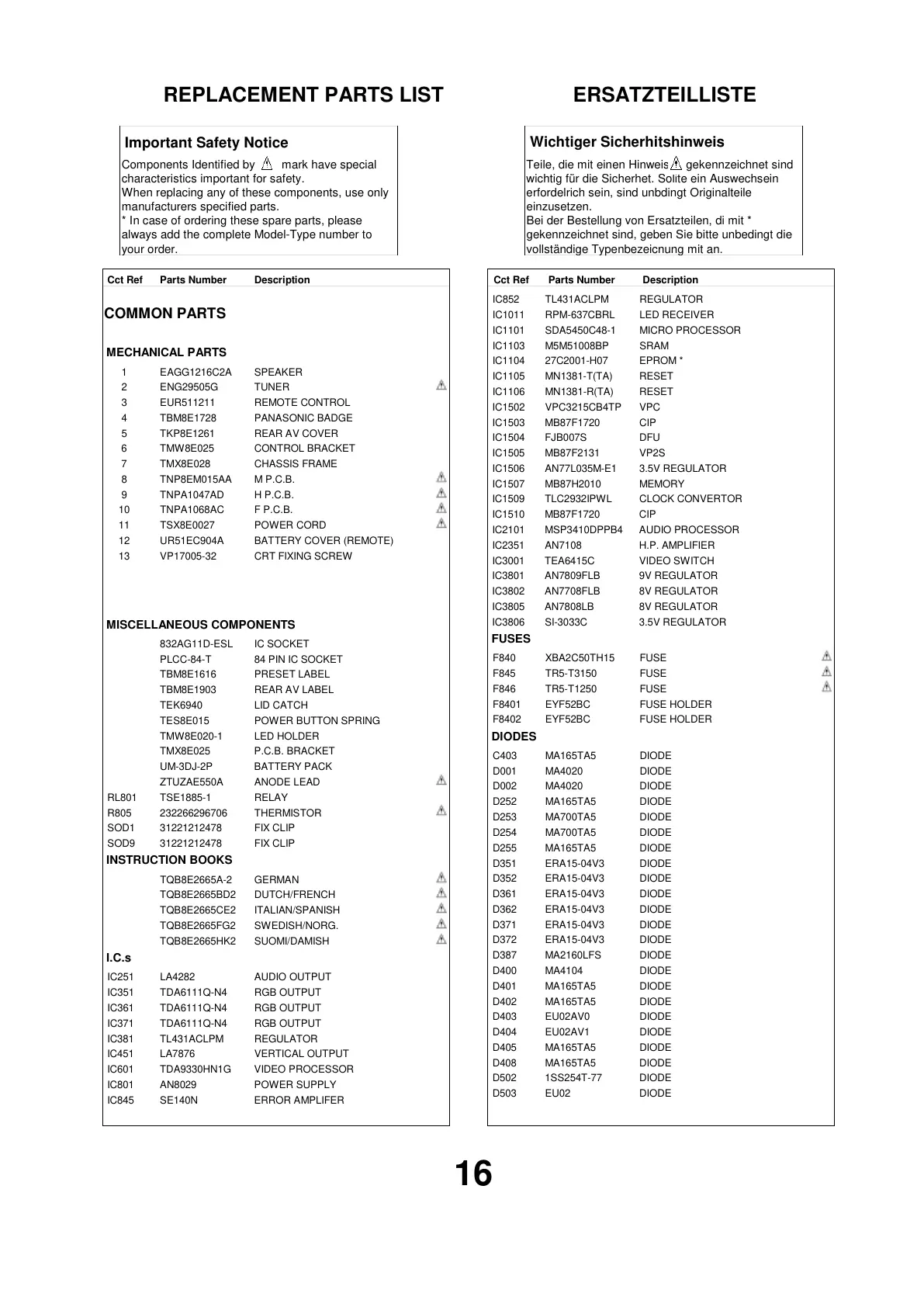

Panasonic TX-28XD90F/A - Replacement Parts List; Ersatzteilliste

Teile, die mit einen Hinweis gekennzeichnet sind
wichtig für die Sicherhet. Solite ein Auswechsein
erfordelrich sein, sind unbdingt Originalteile
einzusetzen.
Bei der Bestellung von Ersatzteilen, di mit *
gekennzeichnet sind, geben Sie bitte unbedingt die
vollständi
g
e T
y
penbezeicnun
g
mit an.
Components Identified by mark have special
characteristics important for safety.
When replacing any of these components, use only
manufacturers specified parts.
* In case of ordering these spare parts, please
always add the complete Model-Type number to
y
our order.
Important Safety Notice
ERSATZTEILLISTEREPLACEMENT PARTS LIST
Wichti
g
er Sicherhitshinweis
DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
COMMON PARTS
MECHANICAL PARTS
SPEAKER 1 EAGG1216C2A
TUNER 2 ENG29505G
REMOTE CONTROL 3 EUR511211
PANASONIC BADGE 4 TBM8E1728
REAR AV COVER 5 TKP8E1261
CONTROL BRACKET 6 TMW8E025
CHASSIS FRAME 7 TMX8E028
M P.C.B. 8 TNP8EM015AA
H P.C.B. 9 TNPA1047AD
F P.C.B. 10 TNPA1068AC
POWER CORD 11 TSX8E0027
BATTERY COVER (REMOTE) 12 UR51EC904A
CRT FIXING SCREW 13 VP17005-32
MISCELLANEOUS COMPONENTS
IC SOCKET 832AG11D-ESL
84 PIN IC SOCKET PLCC-84-T
PRESET LABEL TBM8E1616
REAR AV LABEL TBM8E1903
LID CATCH TEK6940
POWER BUTTON SPRING TES8E015
LED HOLDER TMW8E020-1
P.C.B. BRACKET TMX8E025
BATTERY PACK UM-3DJ-2P
ANODE LEAD ZTUZAE550A
RELAY RL801 TSE1885-1
THERMISTOR R805 232266296706
FIX CLIP SOD1 31221212478
FIX CLIP SOD9 31221212478
INSTRUCTION BOOKS
GERMAN TQB8E2665A-2
DUTCH/FRENCH TQB8E2665BD2
ITALIAN/SPANISH TQB8E2665CE2
SWEDISH/NORG. TQB8E2665FG2
SUOMI/DAMISH TQB8E2665HK2
I.C.s
AUDIO OUTPUT IC251 LA4282
RGB OUTPUT IC351 TDA6111Q-N4
RGB OUTPUT IC361 TDA6111Q-N4
RGB OUTPUT IC371 TDA6111Q-N4
REGULATOR IC381 TL431ACLPM
VERTICAL OUTPUT IC451 LA7876
VIDEO PROCESSOR IC601 TDA9330HN1G
POWER SUPPLY IC801 AN8029
ERROR AMPLIFERIC845 SE140N
REGULATOR IC852 TL431ACLPM
LED RECEIVER IC1011 RPM-637CBRL
MICRO PROCESSOR IC1101 SDA5450C48-1
SRAM IC1103 M5M51008BP
EPROM * IC1104 27C2001-H07
RESET IC1105 MN1381-T(TA)
RESET IC1106 MN1381-R(TA)
VPC IC1502 VPC3215CB4TP
CIP IC1503 MB87F1720
DFU IC1504 FJB007S
VP2S IC1505 MB87F2131
3.5V REGULATOR IC1506 AN77L035M-E1
MEMORY IC1507 MB87H2010
CLOCK CONVERTOR IC1509 TLC2932IPWL
CIP IC1510 MB87F1720
AUDIO PROCESSORIC2101 MSP3410DPPB4
H.P. AMPLIFIER IC2351 AN7108
VIDEO SWITCHIC3001 TEA6415C
9V REGULATOR IC3801 AN7809FLB
8V REGULATOR IC3802 AN7708FLB
8V REGULATOR IC3805 AN7808LB
3.5V REGULATOR IC3806 SI-3033C
FUSES
FUSEF840 XBA2C50TH15
FUSE F845 TR5-T3150
FUSEF846 TR5-T1250
FUSE HOLDERF8401 EYF52BC
FUSE HOLDERF8402 EYF52BC
DIODES
DIODEC403 MA165TA5
DIODE D001 MA4020
DIODE D002 MA4020
DIODED252 MA165TA5
DIODE D253 MA700TA5
DIODE D254 MA700TA5
DIODED255 MA165TA5
DIODE D351 ERA15-04V3
DIODE D352 ERA15-04V3
DIODE D361 ERA15-04V3
DIODE D362 ERA15-04V3
DIODE D371 ERA15-04V3
DIODE D372 ERA15-04V3
DIODE D387 MA2160LFS
DIODE D400 MA4104
DIODED401 MA165TA5
DIODED402 MA165TA5
DIODE D403 EU02AV0
DIODE D404 EU02AV1
DIODED405 MA165TA5
DIODED408 MA165TA5
DIODED502 1SS254T-77
DIODE D503 EU02
16
