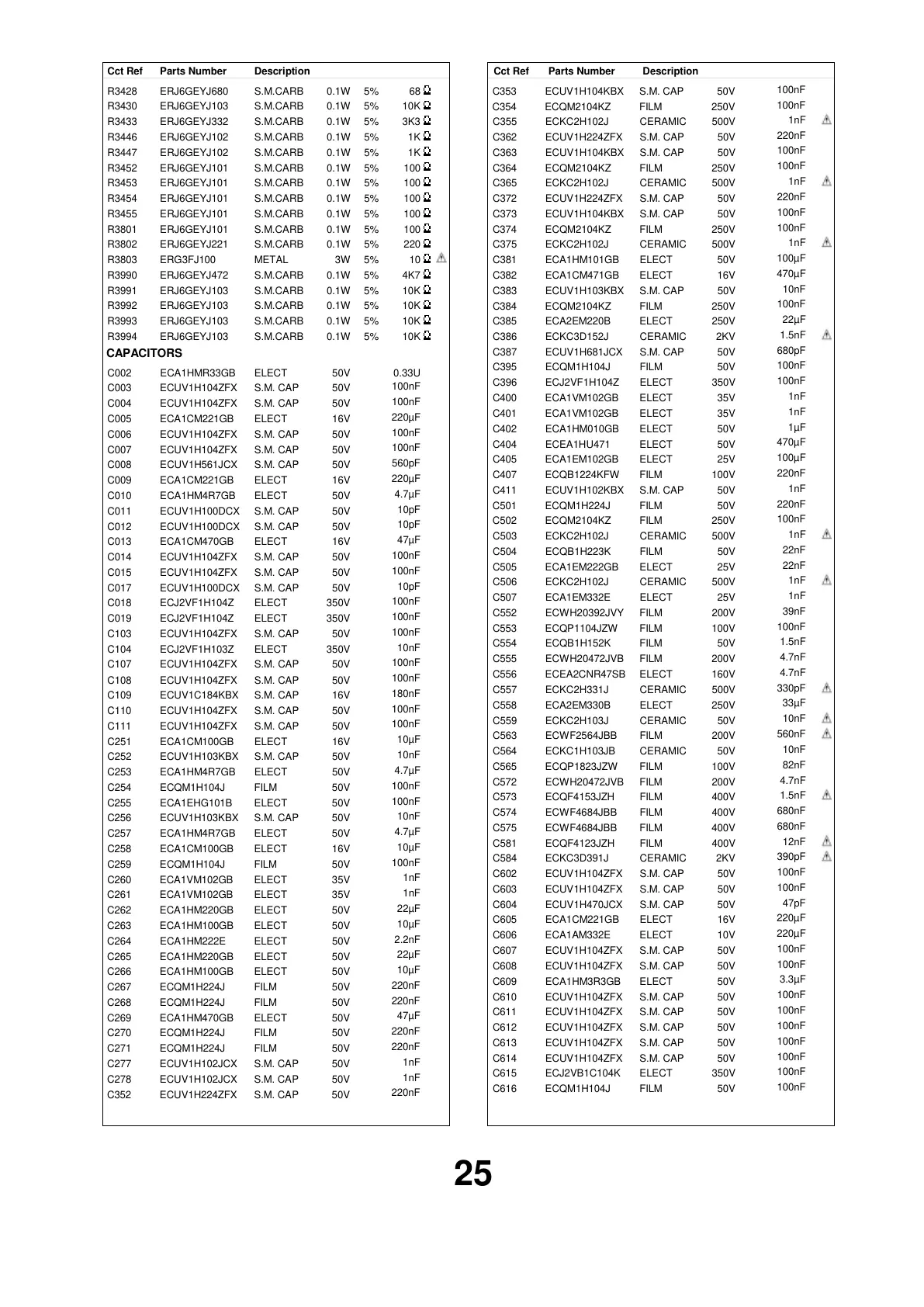

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CARBR3428 ERJ6GEYJ680 0.1W 5% 68
S.M.CARBR3430 ERJ6GEYJ103 0.1W 5% 10K
S.M.CARBR3433 ERJ6GEYJ332 0.1W 5% 3K3
S.M.CARBR3446 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3447 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3452 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3453 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3454 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3455 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3801 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3802 ERJ6GEYJ221 0.1W 5% 220
METALR3803 ERG3FJ100 3W 5% 10
S.M.CARBR3990 ERJ6GEYJ472 0.1W 5% 4K7
S.M.CARBR3991 ERJ6GEYJ103 0.1W 5% 10K
S.M.CARBR3992 ERJ6GEYJ103 0.1W 5% 10K
S.M.CARBR3993 ERJ6GEYJ103 0.1W 5% 10K
S.M.CARBR3994 ERJ6GEYJ103 0.1W 5% 10K
CAPACITORS
ELECT C002 ECA1HMR33GB 50V 0.33U
S.M. CAPC003 ECUV1H104ZFX 50V
100nF
S.M. CAPC004 ECUV1H104ZFX 50V
100nF
ELECT C005 ECA1CM221GB 16V
220µF
S.M. CAPC006 ECUV1H104ZFX 50V
100nF
S.M. CAPC007 ECUV1H104ZFX 50V
100nF
S.M. CAPC008 ECUV1H561JCX 50V
560pF
ELECT C009 ECA1CM221GB 16V
220µF
ELECT C010 ECA1HM4R7GB 50V
4.7µF
S.M. CAPC011 ECUV1H100DCX 50V
10pF
S.M. CAPC012 ECUV1H100DCX 50V
10pF
ELECT C013 ECA1CM470GB 16V
47µF
S.M. CAPC014 ECUV1H104ZFX 50V
100nF
S.M. CAPC015 ECUV1H104ZFX 50V
100nF
S.M. CAPC017 ECUV1H100DCX 50V
10pF
ELECTC018 ECJ2VF1H104Z 350V
100nF
ELECTC019 ECJ2VF1H104Z 350V
100nF
S.M. CAPC103 ECUV1H104ZFX 50V
100nF
ELECTC104 ECJ2VF1H103Z 350V
10nF
S.M. CAPC107 ECUV1H104ZFX 50V
100nF
S.M. CAPC108 ECUV1H104ZFX 50V
100nF
S.M. CAPC109 ECUV1C184KBX 16V
180nF
S.M. CAPC110 ECUV1H104ZFX 50V
100nF
S.M. CAPC111 ECUV1H104ZFX 50V
100nF
ELECT C251 ECA1CM100GB 16V
10µF
S.M. CAPC252 ECUV1H103KBX 50V
10nF
ELECT C253 ECA1HM4R7GB 50V
4.7µF
FILMC254 ECQM1H104J 50V
100nF
ELECTC255 ECA1EHG101B 50V
100nF
S.M. CAPC256 ECUV1H103KBX 50V
10nF
ELECT C257 ECA1HM4R7GB 50V
4.7µF
ELECT C258 ECA1CM100GB 16V
10µF
FILMC259 ECQM1H104J 50V
100nF
ELECT C260 ECA1VM102GB 35V
1nF
ELECT C261 ECA1VM102GB 35V
1nF
ELECT C262 ECA1HM220GB 50V
22µF
ELECT C263 ECA1HM100GB 50V
10µF
ELECTC264 ECA1HM222E 50V
2.2nF
ELECT C265 ECA1HM220GB 50V
22µF
ELECT C266 ECA1HM100GB 50V
10µF
FILMC267 ECQM1H224J 50V
220nF
FILMC268 ECQM1H224J 50V
220nF
ELECT C269 ECA1HM470GB 50V
47µF
FILMC270 ECQM1H224J 50V
220nF
FILMC271 ECQM1H224J 50V
220nF
S.M. CAPC277 ECUV1H102JCX 50V
1nF
S.M. CAPC278 ECUV1H102JCX 50V
1nF
S.M. CAPC352 ECUV1H224ZFX 50V
220nF
S.M. CAPC353 ECUV1H104KBX 50V
100nF
FILMC354 ECQM2104KZ 250V
100nF
CERAMIC C355 ECKC2H102J 500V
1nF
S.M. CAPC362 ECUV1H224ZFX 50V
220nF
S.M. CAPC363 ECUV1H104KBX 50V
100nF
FILMC364 ECQM2104KZ 250V
100nF
CERAMIC C365 ECKC2H102J 500V
1nF
S.M. CAPC372 ECUV1H224ZFX 50V
220nF
S.M. CAPC373 ECUV1H104KBX 50V
100nF
FILMC374 ECQM2104KZ 250V
100nF
CERAMIC C375 ECKC2H102J 500V
1nF
ELECT C381 ECA1HM101GB 50V
100µF
ELECT C382 ECA1CM471GB 16V
470µF
S.M. CAPC383 ECUV1H103KBX 50V
10nF
FILMC384 ECQM2104KZ 250V
100nF
ELECTC385 ECA2EM220B 250V
22µF
CERAMIC C386 ECKC3D152J 2KV
1.5nF
S.M. CAPC387 ECUV1H681JCX 50V
680pF
FILMC395 ECQM1H104J 50V
100nF
ELECTC396 ECJ2VF1H104Z 350V
100nF
ELECT C400 ECA1VM102GB 35V
1nF
ELECT C401 ECA1VM102GB 35V
1nF
ELECT C402 ECA1HM010GB 50V
1µF
ELECT C404 ECEA1HU471 50V
470µF
ELECT C405 ECA1EM102GB 25V
100µF
FILMC407 ECQB1224KFW 100V
220nF
S.M. CAPC411 ECUV1H102KBX 50V
1nF
FILMC501 ECQM1H224J 50V
220nF
FILMC502 ECQM2104KZ 250V
100nF
CERAMIC C503 ECKC2H102J 500V
1nF
FILMC504 ECQB1H223K 50V
22nF
ELECT C505 ECA1EM222GB 25V
22nF
CERAMIC C506 ECKC2H102J 500V
1nF
ELECT C507 ECA1EM332E 25V
1nF
FILMC552 ECWH20392JVY 200V
39nF
FILMC553 ECQP1104JZW 100V
100nF
FILMC554 ECQB1H152K 50V
1.5nF
FILMC555 ECWH20472JVB 200V
4.7nF
ELECT C556 ECEA2CNR47SB 160V
4.7nF
CERAMIC C557 ECKC2H331J 500V
330pF
ELECT C558 ECA2EM330B 250V
33µF
CERAMIC C559 ECKC2H103J 50V
10nF
FILMC563 ECWF2564JBB 200V
560nF
CERAMIC C564 ECKC1H103JB 50V
10nF
FILMC565 ECQP1823JZW 100V
82nF
FILMC572 ECWH20472JVB 200V
4.7nF
FILMC573 ECQF4153JZH 400V
1.5nF
FILMC574 ECWF4684JBB 400V
680nF
FILMC575 ECWF4684JBB 400V
680nF
FILMC581 ECQF4123JZH 400V
12nF
CERAMIC C584 ECKC3D391J 2KV
390pF
S.M. CAPC602 ECUV1H104ZFX 50V
100nF
S.M. CAPC603 ECUV1H104ZFX 50V
100nF
S.M. CAPC604 ECUV1H470JCX 50V
47pF
ELECT C605 ECA1CM221GB 16V
220µF
ELECT C606 ECA1AM332E 10V
220µF
S.M. CAPC607 ECUV1H104ZFX 50V
100nF
S.M. CAPC608 ECUV1H104ZFX 50V
100nF
ELECT C609 ECA1HM3R3GB 50V
3.3µF
S.M. CAPC610 ECUV1H104ZFX 50V
100nF
S.M. CAPC611 ECUV1H104ZFX 50V
100nF
S.M. CAPC612 ECUV1H104ZFX 50V
100nF
S.M. CAPC613 ECUV1H104ZFX 50V
100nF
S.M. CAPC614 ECUV1H104ZFX 50V
100nF
ELECTC615 ECJ2VB1C104K 350V
100nF
FILMC616 ECQM1H104J 50V
100nF
