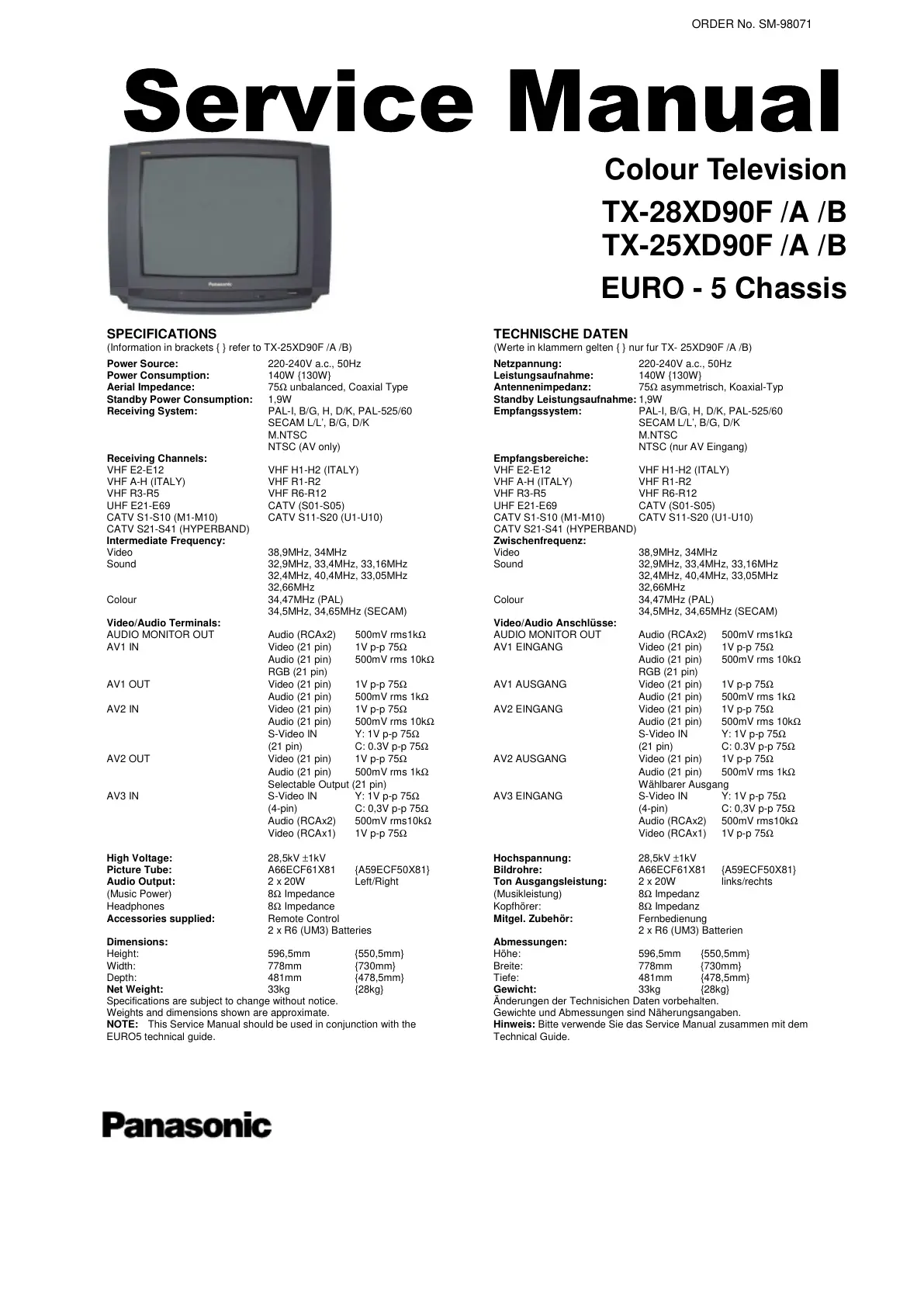

Panasonic TX-28XD90F/A - Page 3

Colour Television
TX-28XD90F /A /B
TX-25XD90F /A /B
EURO - 5 Chassis
SPECIFICATIONS
(Information in brackets { } refer to TX-25XD90F /A /B)
Power Source: 220-240V a.c., 50Hz
Power Consumption: 140W {130W}
Aerial Impedance: 75
Ω
unbalanced, Coaxial Type
Standby Power Consumption: 1,9W
Receiving System: PAL-I, B/G, H, D/K, PAL-525/60
SECAM L/L’, B/G, D/K
M.NTSC
NTSC (AV only)
Receiving Channels:
VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video 38,9MHz, 34MHz
Sound 32,9MHz, 33,4MHz, 33,16MHz
32,4MHz, 40,4MHz, 33,05MHz
32,66MHz
Colour 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Terminals:
AUDIO MONITOR OUT Audio (RCAx2) 500mV rms1k
Ω
AV1 IN Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 10k
Ω
RGB (21 pin)
AV1 OUT Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 1k
Ω
AV2 IN Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 10k
Ω
S-Video IN Y: 1V p-p 75
Ω
(21 pin) C: 0.3V p-p 75
Ω
AV2 OUT Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 1k
Ω
Selectable Output (21 pin)
AV3 IN S-Video IN Y: 1V p-p 75
Ω
(4-pin) C: 0,3V p-p 75
Ω
Audio (RCAx2) 500mV rms10k
Ω
Video (RCAx1) 1V p-p 75
Ω
High Voltage: 28,5kV
±
1kV
Picture Tube: A66ECF61X81 {A59ECF50X81}
Audio Output: 2 x 20W Left/Right
(Music Power) 8
Ω
Impedance
Headphones 8
Ω
Impedance
Accessories supplied: Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 596,5mm {550,5mm}
Width: 778mm {730mm}
Depth: 481mm {478,5mm}
Net Weight: 33kg {28kg}
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with the
EURO5 technical guide.
TECHNISCHE DATEN
(Werte in klammern gelten { } nur fur TX- 25XD90F /A /B)
Netzpannung: 220-240V a.c., 50Hz
Leistungsaufnahme: 140W {130W}
Antennenimpedanz: 75
Ω
asymmetrisch, Koaxial-Typ
Standby Leistungsaufnahme: 1,9W
Empfangssystem: PAL-I, B/G, H, D/K, PAL-525/60
SECAM L/L’, B/G, D/K
M.NTSC
NTSC (nur AV Eingang)
Empfangsbereiche:
VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Zwischenfrequenz:
Video 38,9MHz, 34MHz
Sound 32,9MHz, 33,4MHz, 33,16MHz
32,4MHz, 40,4MHz, 33,05MHz
32,66MHz
Colour 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Anschlüsse:
AUDIO MONITOR OUT Audio (RCAx2) 500mV rms1k
Ω
AV1 EINGANG Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 10k
Ω
RGB (21 pin)
AV1 AUSGANG Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 1k
Ω
AV2 EINGANG Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 10k
Ω
S-Video IN Y: 1V p-p 75
Ω
(21 pin) C: 0.3V p-p 75
Ω
AV2 AUSGANG Video (21 pin) 1V p-p 75
Ω
Audio (21 pin) 500mV rms 1k
Ω
Wählbarer Ausgang
AV3 EINGANG S-Video IN Y: 1V p-p 75
Ω
(4-pin) C: 0,3V p-p 75
Ω
Audio (RCAx2) 500mV rms10k
Ω
Video (RCAx1) 1V p-p 75
Ω
Hochspannung: 28,5kV
±
1kV
Bildrohre: A66ECF61X81 {A59ECF50X81}
Ton Ausgangsleistung: 2 x 20W links/rechts
(Musikleistung) 8
Ω
Impedanz
Kopfhörer: 8
Ω
Impedanz
Mitgel. Zubehör: Fernbedienung
2 x R6 (UM3) Batterien
Abmessungen:
Höhe: 596,5mm {550,5mm}
Breite: 778mm {730mm}
Tiefe: 481mm {478,5mm}
Gewicht: 33kg {28kg}
Änderungen der Technisichen Daten vorbehalten.
Gewichte und Abmessungen sind Näherungsangaben.
Hinweis: Bitte verwende Sie das Service Manual zusammen mit dem
Technical Guide.
ORDER No. SM-98071
