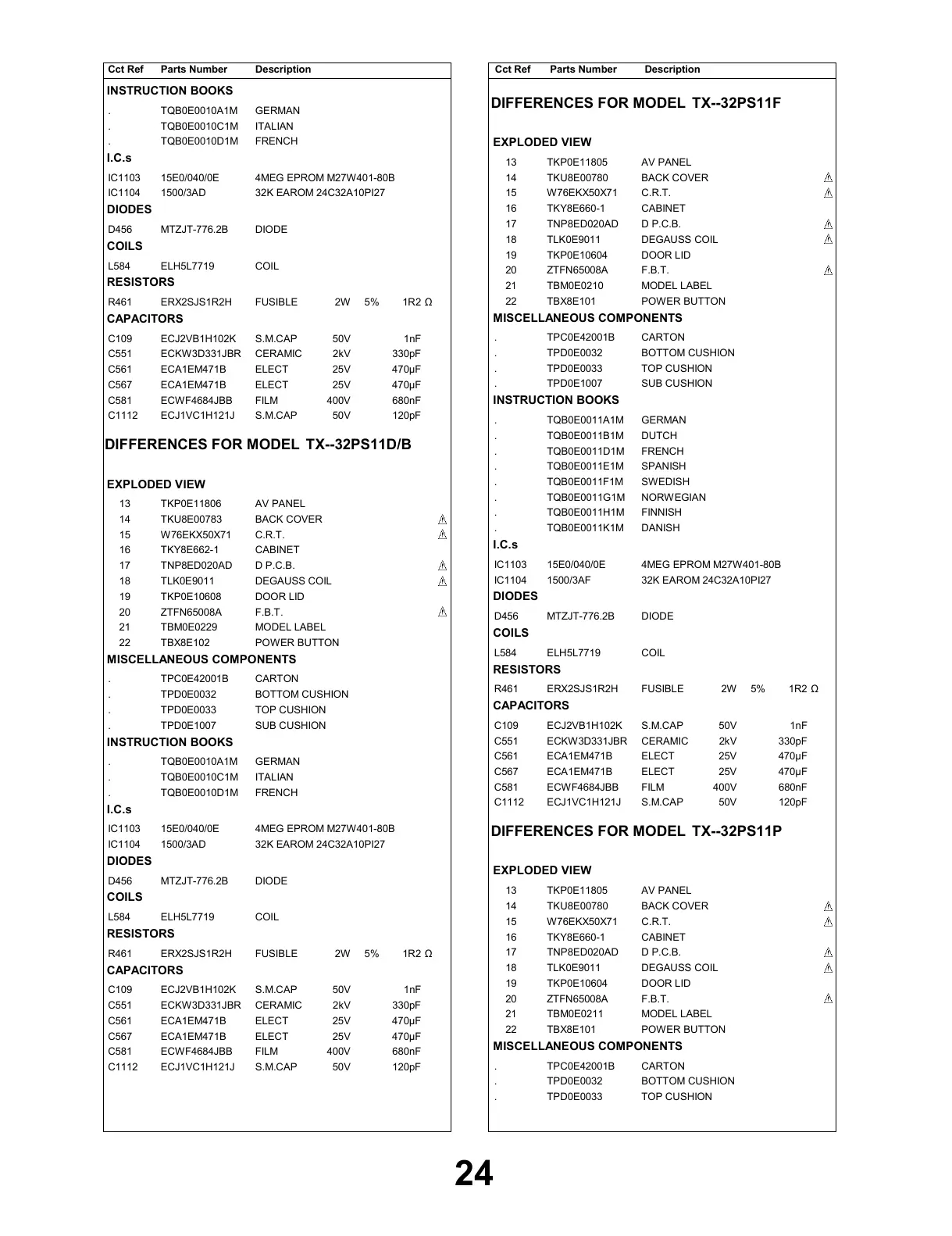

Panasonic TX-29PS11D - Page 24

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
INSTRUCTION BOOKS
GERMAN . TQB0E0010A1M
ITALIAN . TQB0E0010C1M
FRENCH . TQB0E0010D1M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/3AD
DIODES
DIODE D456 MTZJT-776.2B
COILS
COIL L584 ELH5L7719
RESISTORS
FUSIBLER461 ERX2SJS1R2H 2W 5% 1R2 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D331JBR 2kV 330pF
ELECTC561 ECA1EM471B 25V 470µF
ELECTC567 ECA1EM471B 25V 470µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--32PS11D/B
EXPLODED VIEW
AV PANEL 13 TKP0E11806
BACK COVER 14 TKU8E00783
C.R.T. 15 W76EKX50X71
CABINET 16 TKY8E662-1
D P.C.B. 17 TNP8ED020AD
DEGAUSS COIL 18 TLK0E9011
DOOR LID 19 TKP0E10608
F.B.T. 20 ZTFN65008A
MODEL LABEL 21 TBM0E0229
POWER BUTTON 22 TBX8E102
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42001B
BOTTOM CUSHION . TPD0E0032
TOP CUSHION . TPD0E0033
SUB CUSHION . TPD0E1007
INSTRUCTION BOOKS
GERMAN . TQB0E0010A1M
ITALIAN . TQB0E0010C1M
FRENCH . TQB0E0010D1M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/3AD
DIODES
DIODE D456 MTZJT-776.2B
COILS
COIL L584 ELH5L7719
RESISTORS
FUSIBLER461 ERX2SJS1R2H 2W 5% 1R2 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D331JBR 2kV 330pF
ELECTC561 ECA1EM471B 25V 470µF
ELECTC567 ECA1EM471B 25V 470µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--32PS11F
EXPLODED VIEW
AV PANEL 13 TKP0E11805
BACK COVER 14 TKU8E00780
C.R.T. 15 W76EKX50X71
CABINET 16 TKY8E660-1
D P.C.B. 17 TNP8ED020AD
DEGAUSS COIL 18 TLK0E9011
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65008A
MODEL LABEL 21 TBM0E0210
POWER BUTTON 22 TBX8E101
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42001B
BOTTOM CUSHION . TPD0E0032
TOP CUSHION . TPD0E0033
SUB CUSHION . TPD0E1007
INSTRUCTION BOOKS
GERMAN . TQB0E0011A1M
DUTCH . TQB0E0011B1M
FRENCH . TQB0E0011D1M
SPANISH . TQB0E0011E1M
SWEDISH . TQB0E0011F1M
NORWEGIAN . TQB0E0011G1M
FINNISH . TQB0E0011H1M
DANISH . TQB0E0011K1M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/3AF
DIODES
DIODE D456 MTZJT-776.2B
COILS
COIL L584 ELH5L7719
RESISTORS
FUSIBLER461 ERX2SJS1R2H 2W 5% 1R2 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D331JBR 2kV 330pF
ELECTC561 ECA1EM471B 25V 470µF
ELECTC567 ECA1EM471B 25V 470µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--32PS11P
EXPLODED VIEW
AV PANEL 13 TKP0E11805
BACK COVER 14 TKU8E00780
C.R.T. 15 W76EKX50X71
CABINET 16 TKY8E660-1
D P.C.B. 17 TNP8ED020AD
DEGAUSS COIL 18 TLK0E9011
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65008A
MODEL LABEL 21 TBM0E0211
POWER BUTTON 22 TBX8E101
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42001B
BOTTOM CUSHION . TPD0E0032
TOP CUSHION . TPD0E0033
24
