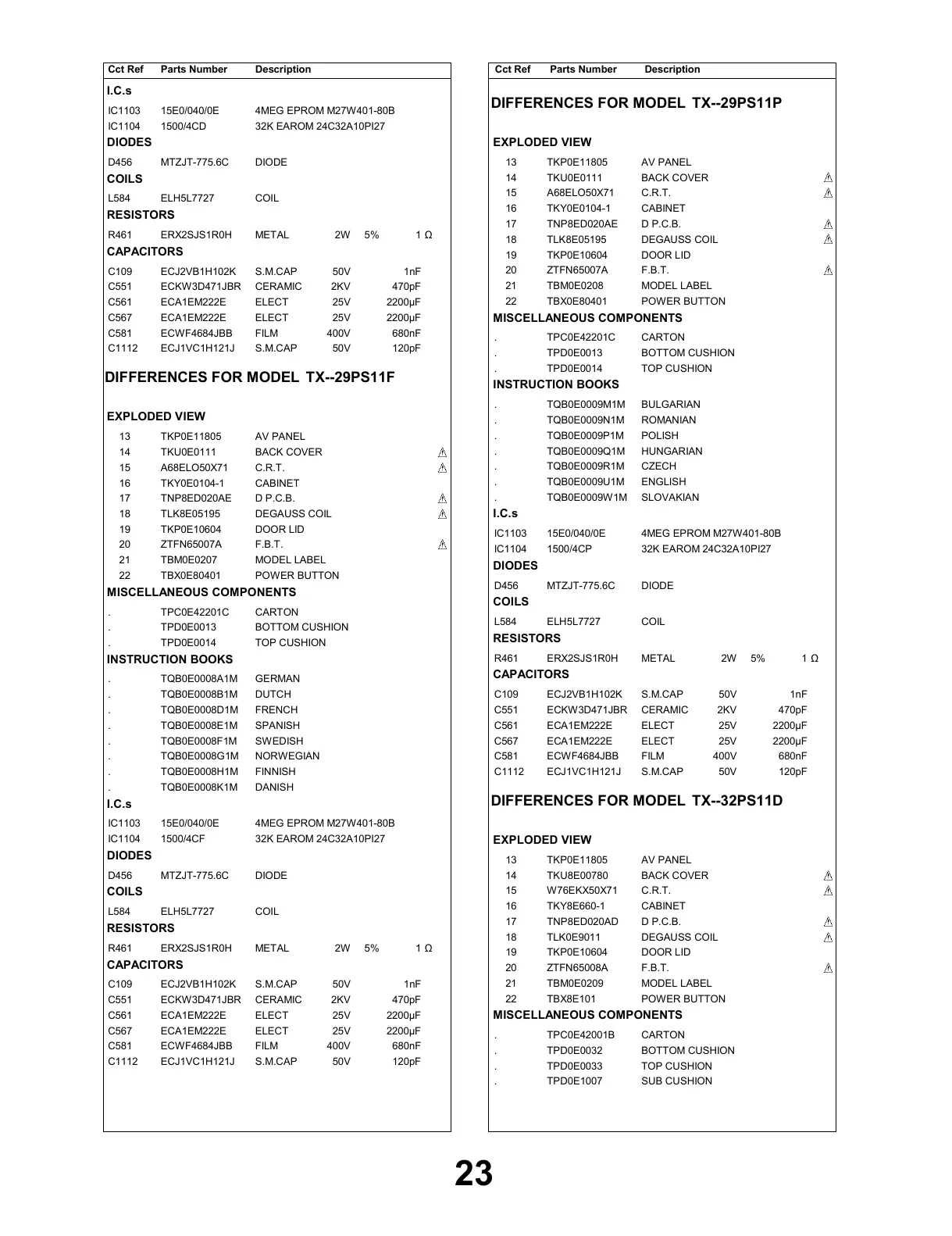

Panasonic TX-29PS11D - Page 23

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/4CD
DIODES
DIODE D456 MTZJT-775.6C
COILS
COIL L584 ELH5L7727
RESISTORS
METALR461 ERX2SJS1R0H 2W 5% 1 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D471JBR 2KV 470pF
ELECTC561 ECA1EM222E 25V 2200µF
ELECTC567 ECA1EM222E 25V 2200µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--29PS11F
EXPLODED VIEW
AV PANEL 13 TKP0E11805
BACK COVER 14 TKU0E0111
C.R.T. 15 A68ELO50X71
CABINET 16 TKY0E0104-1
D P.C.B. 17 TNP8ED020AE
DEGAUSS COIL 18 TLK8E05195
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65007A
MODEL LABEL 21 TBM0E0207
POWER BUTTON 22 TBX0E80401
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42201C
BOTTOM CUSHION . TPD0E0013
TOP CUSHION . TPD0E0014
INSTRUCTION BOOKS
GERMAN . TQB0E0008A1M
DUTCH . TQB0E0008B1M
FRENCH . TQB0E0008D1M
SPANISH . TQB0E0008E1M
SWEDISH . TQB0E0008F1M
NORWEGIAN . TQB0E0008G1M
FINNISH . TQB0E0008H1M
DANISH . TQB0E0008K1M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/4CF
DIODES
DIODE D456 MTZJT-775.6C
COILS
COIL L584 ELH5L7727
RESISTORS
METALR461 ERX2SJS1R0H 2W 5% 1 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D471JBR 2KV 470pF
ELECTC561 ECA1EM222E 25V 2200µF
ELECTC567 ECA1EM222E 25V 2200µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--29PS11P
EXPLODED VIEW
AV PANEL 13 TKP0E11805
BACK COVER 14 TKU0E0111
C.R.T. 15 A68ELO50X71
CABINET 16 TKY0E0104-1
D P.C.B. 17 TNP8ED020AE
DEGAUSS COIL 18 TLK8E05195
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65007A
MODEL LABEL 21 TBM0E0208
POWER BUTTON 22 TBX0E80401
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42201C
BOTTOM CUSHION . TPD0E0013
TOP CUSHION . TPD0E0014
INSTRUCTION BOOKS
BULGARIAN . TQB0E0009M1M
ROMANIAN . TQB0E0009N1M
POLISH . TQB0E0009P1M
HUNGARIAN . TQB0E0009Q1M
CZECH . TQB0E0009R1M
ENGLISH . TQB0E0009U1M
SLOVAKIAN . TQB0E0009W1M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/4CP
DIODES
DIODE D456 MTZJT-775.6C
COILS
COIL L584 ELH5L7727
RESISTORS
METALR461 ERX2SJS1R0H 2W 5% 1 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D471JBR 2KV 470pF
ELECTC561 ECA1EM222E 25V 2200µF
ELECTC567 ECA1EM222E 25V 2200µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--32PS11D
EXPLODED VIEW
AV PANEL 13 TKP0E11805
BACK COVER 14 TKU8E00780
C.R.T. 15 W76EKX50X71
CABINET 16 TKY8E660-1
D P.C.B. 17 TNP8ED020AD
DEGAUSS COIL 18 TLK0E9011
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65008A
MODEL LABEL 21 TBM0E0209
POWER BUTTON 22 TBX8E101
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42001B
BOTTOM CUSHION . TPD0E0032
TOP CUSHION . TPD0E0033
SUB CUSHION . TPD0E1007
23
