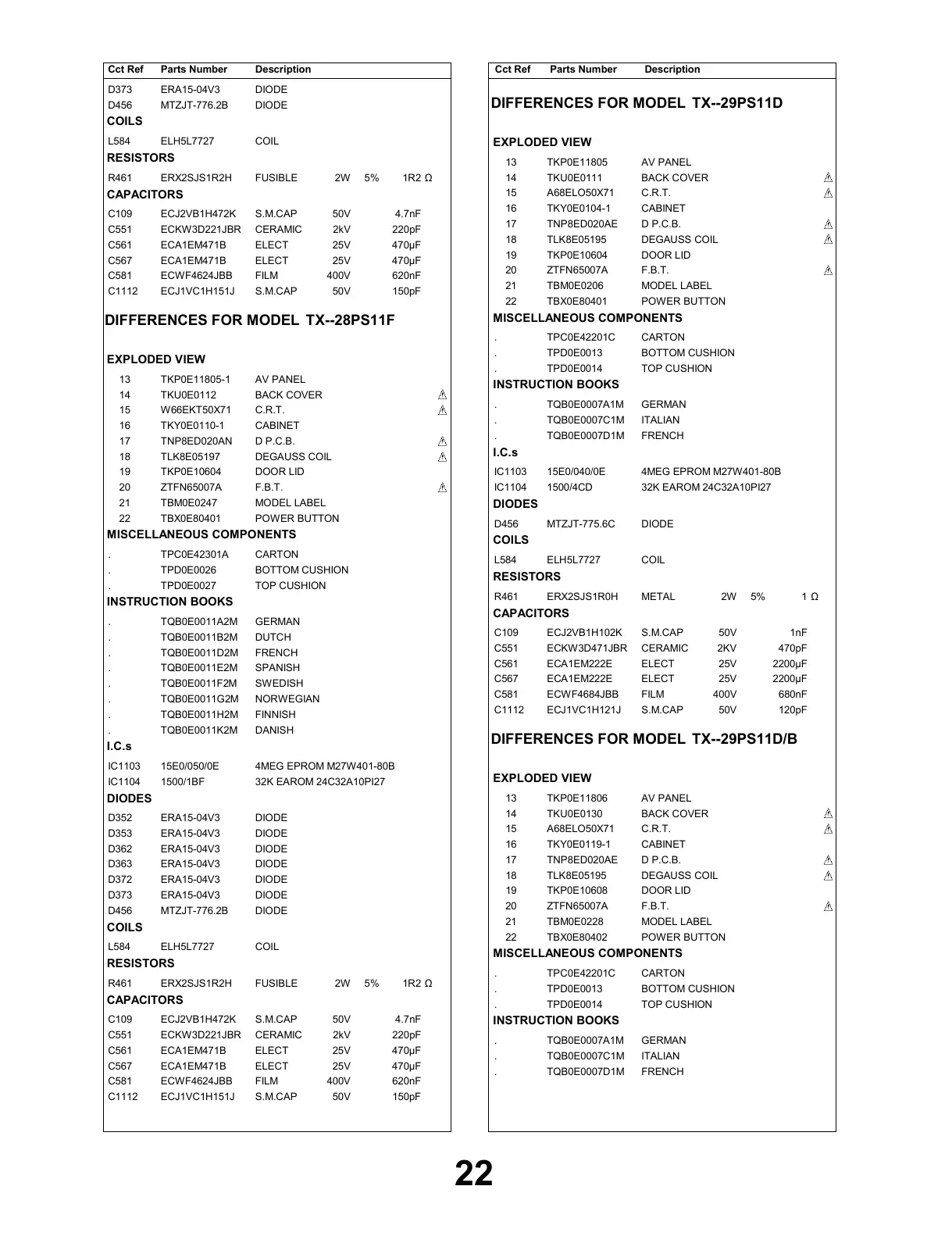

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
DIODE D373 ERA15-04V3
DIODE D456 MTZJT-776.2B
COILS
COIL L584 ELH5L7727
RESISTORS
FUSIBLER461 ERX2SJS1R2H 2W 5% 1R2 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H472K 50V 4.7nF
CERAMICC551 ECKW3D221JBR 2kV 220pF
ELECTC561 ECA1EM471B 25V 470µF
ELECTC567 ECA1EM471B 25V 470µF
FILMC581 ECWF4624JBB 400V 620nF
S.M.CAPC1112 ECJ1VC1H151J 50V 150pF
DIFFERENCES FOR MODEL TX--28PS11F
EXPLODED VIEW
AV PANEL 13 TKP0E11805-1
BACK COVER 14 TKU0E0112
C.R.T. 15 W66EKT50X71
CABINET 16 TKY0E0110-1
D P.C.B. 17 TNP8ED020AN
DEGAUSS COIL 18 TLK8E05197
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65007A
MODEL LABEL 21 TBM0E0247
POWER BUTTON 22 TBX0E80401
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42301A
BOTTOM CUSHION . TPD0E0026
TOP CUSHION . TPD0E0027
INSTRUCTION BOOKS
GERMAN . TQB0E0011A2M
DUTCH . TQB0E0011B2M
FRENCH . TQB0E0011D2M
SPANISH . TQB0E0011E2M
SWEDISH . TQB0E0011F2M
NORWEGIAN . TQB0E0011G2M
FINNISH . TQB0E0011H2M
DANISH . TQB0E0011K2M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/050/0E
32K EAROM 24C32A10PI27IC1104 1500/1BF
DIODES
DIODE D352 ERA15-04V3
DIODE D353 ERA15-04V3
DIODE D362 ERA15-04V3
DIODE D363 ERA15-04V3
DIODE D372 ERA15-04V3
DIODE D373 ERA15-04V3
DIODE D456 MTZJT-776.2B
COILS
COIL L584 ELH5L7727
RESISTORS
FUSIBLER461 ERX2SJS1R2H 2W 5% 1R2 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H472K 50V 4.7nF
CERAMICC551 ECKW3D221JBR 2kV 220pF
ELECTC561 ECA1EM471B 25V 470µF
ELECTC567 ECA1EM471B 25V 470µF
FILMC581 ECWF4624JBB 400V 620nF
S.M.CAPC1112 ECJ1VC1H151J 50V 150pF
DIFFERENCES FOR MODEL TX--29PS11D
EXPLODED VIEW
AV PANEL 13 TKP0E11805
BACK COVER 14 TKU0E0111
C.R.T. 15 A68ELO50X71
CABINET 16 TKY0E0104-1
D P.C.B. 17 TNP8ED020AE
DEGAUSS COIL 18 TLK8E05195
DOOR LID 19 TKP0E10604
F.B.T. 20 ZTFN65007A
MODEL LABEL 21 TBM0E0206
POWER BUTTON 22 TBX0E80401
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42201C
BOTTOM CUSHION . TPD0E0013
TOP CUSHION . TPD0E0014
INSTRUCTION BOOKS
GERMAN . TQB0E0007A1M
ITALIAN . TQB0E0007C1M
FRENCH . TQB0E0007D1M
I.C.s
4MEG EPROM M27W401-80BIC1103 15E0/040/0E
32K EAROM 24C32A10PI27IC1104 1500/4CD
DIODES
DIODE D456 MTZJT-775.6C
COILS
COIL L584 ELH5L7727
RESISTORS
METALR461 ERX2SJS1R0H 2W 5% 1 Ω
CAPACITORS
S.M.CAPC109 ECJ2VB1H102K 50V 1nF
CERAMICC551 ECKW3D471JBR 2KV 470pF
ELECTC561 ECA1EM222E 25V 2200µF
ELECTC567 ECA1EM222E 25V 2200µF
FILMC581 ECWF4684JBB 400V 680nF
S.M.CAPC1112 ECJ1VC1H121J 50V 120pF
DIFFERENCES FOR MODEL TX--29PS11D/B
EXPLODED VIEW
AV PANEL 13 TKP0E11806
BACK COVER 14 TKU0E0130
C.R.T. 15 A68ELO50X71
CABINET 16 TKY0E0119-1
D P.C.B. 17 TNP8ED020AE
DEGAUSS COIL 18 TLK8E05195
DOOR LID 19 TKP0E10608
F.B.T. 20 ZTFN65007A
MODEL LABEL 21 TBM0E0228
POWER BUTTON 22 TBX0E80402
MISCELLANEOUS COMPONENTS
CARTON . TPC0E42201C
BOTTOM CUSHION . TPD0E0013
TOP CUSHION . TPD0E0014
INSTRUCTION BOOKS
GERMAN . TQB0E0007A1M
ITALIAN . TQB0E0007C1M
FRENCH . TQB0E0007D1M
22
