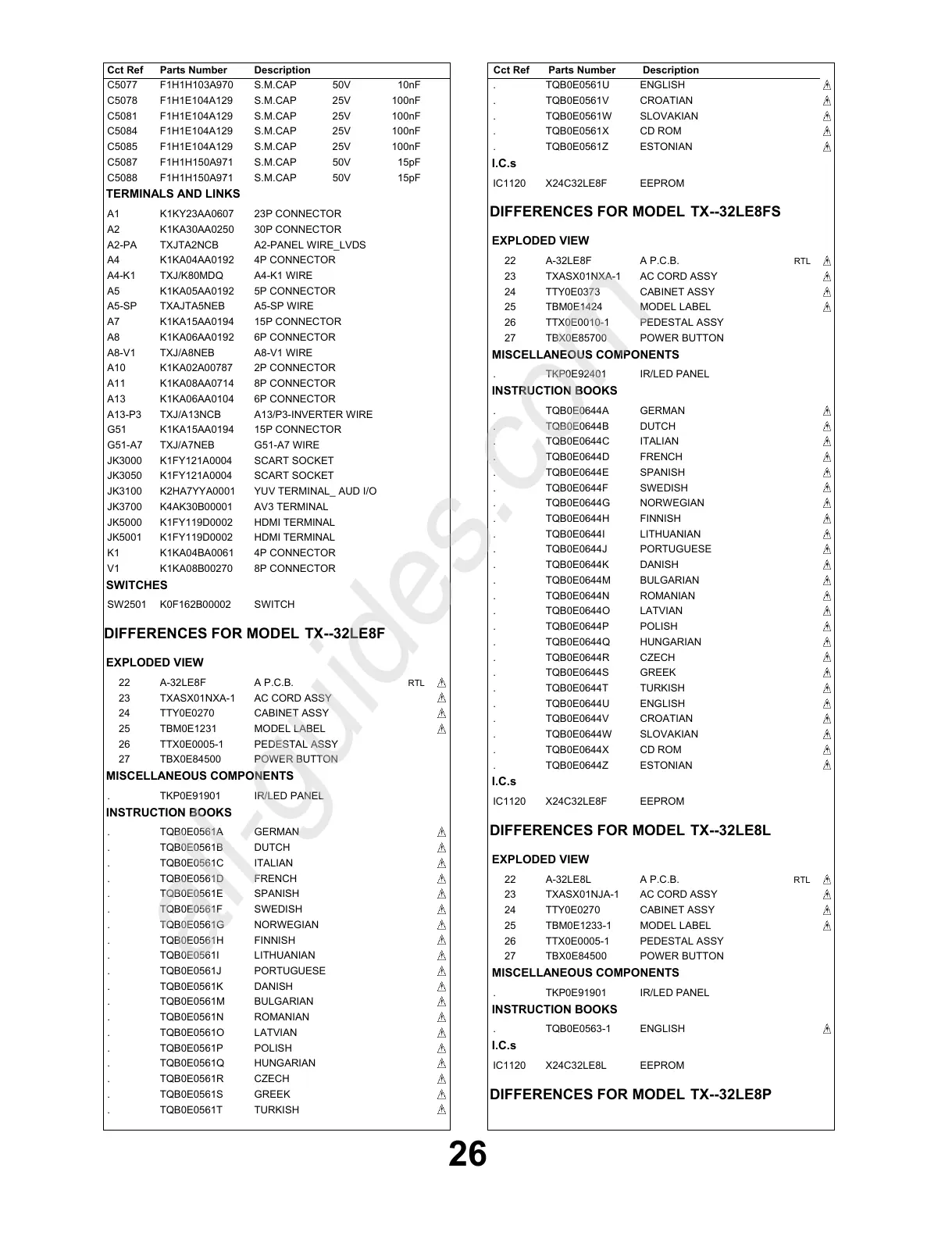

Panasonic TX-32LE8F - Page 26

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CAPC5077 F1H1H103A970 50V 10nF
S.M.CAPC5078 F1H1E104A129 25V 100nF
S.M.CAPC5081 F1H1E104A129 25V 100nF
S.M.CAPC5084 F1H1E104A129 25V 100nF
S.M.CAPC5085 F1H1E104A129 25V 100nF
S.M.CAPC5087 F1H1H150A971 50V 15pF
S.M.CAPC5088 F1H1H150A971 50V 15pF
TERMINALS AND LINKS
23P CONNECTOR A1 K1KY23AA0607
30P CONNECTOR A2 K1KA30AA0250
A2-PANEL WIRE_LVDSA2-PA TXJTA2NCB
4P CONNECTOR A4 K1KA04AA0192
A4-K1 WIRE A4-K1 TXJ/K80MDQ
5P CONNECTOR A5 K1KA05AA0192
A5-SP WIRE A5-SP TXAJTA5NEB
15P CONNECTOR A7 K1KA15AA0194
6P CONNECTOR A8 K1KA06AA0192
A8-V1 WIRE A8-V1 TXJ/A8NEB
2P CONNECTOR A10 K1KA02A00787
8P CONNECTOR A11 K1KA08AA0714
6P CONNECTOR A13 K1KA06AA0104
A13/P3-INVERTER WIREA13-P3 TXJ/A13NCB
15P CONNECTOR G51 K1KA15AA0194
G51-A7 WIRE G51-A7 TXJ/A7NEB
SCART SOCKET JK3000 K1FY121A0004
SCART SOCKET JK3050 K1FY121A0004
YUV TERMINAL_ AUD I/OJK3100 K2HA7YYA0001
AV3 TERMINAL JK3700 K4AK30B00001
HDMI TERMINAL JK5000 K1FY119D0002
HDMI TERMINAL JK5001 K1FY119D0002
4P CONNECTOR K1 K1KA04BA0061
8P CONNECTOR V1 K1KA08B00270
SWITCHES
SWITCH SW2501 K0F162B00002
DIFFERENCES FOR MODEL TX--32LE8F
EXPLODED VIEW
A P.C.B. 22 A-32LE8F
AC CORD ASSY 23 TXASX01NXA-1
CABINET ASSY 24 TTY0E0270
MODEL LABEL 25 TBM0E1231
PEDESTAL ASSY 26 TTX0E0005-1
POWER BUTTON 27 TBX0E84500
MISCELLANEOUS COMPONENTS
IR/LED PANEL . TKP0E91901
INSTRUCTION BOOKS
GERMAN . TQB0E0561A
DUTCH . TQB0E0561B
ITALIAN . TQB0E0561C
FRENCH . TQB0E0561D
SPANISH . TQB0E0561E
SWEDISH . TQB0E0561F
NORWEGIAN . TQB0E0561G
FINNISH . TQB0E0561H
LITHUANIAN . TQB0E0561I
PORTUGUESE . TQB0E0561J
DANISH . TQB0E0561K
BULGARIAN . TQB0E0561M
ROMANIAN . TQB0E0561N
LATVIAN . TQB0E0561O
POLISH . TQB0E0561P
HUNGARIAN . TQB0E0561Q
CZECH . TQB0E0561R
GREEK . TQB0E0561S
TURKISH . TQB0E0561T
ENGLISH . TQB0E0561U
CROATIAN . TQB0E0561V
SLOVAKIAN . TQB0E0561W
CD ROM . TQB0E0561X
ESTONIAN . TQB0E0561Z
I.C.s
EEPROM IC1120 X24C32LE8F
DIFFERENCES FOR MODEL TX--32LE8FS
EXPLODED VIEW
A P.C.B. 22 A-32LE8F
AC CORD ASSY 23 TXASX01NXA-1
CABINET ASSY 24 TTY0E0373
MODEL LABEL 25 TBM0E1424
PEDESTAL ASSY 26 TTX0E0010-1
POWER BUTTON 27 TBX0E85700
MISCELLANEOUS COMPONENTS
IR/LED PANEL . TKP0E92401
INSTRUCTION BOOKS
GERMAN . TQB0E0644A
DUTCH . TQB0E0644B
ITALIAN . TQB0E0644C
FRENCH . TQB0E0644D
SPANISH . TQB0E0644E
SWEDISH . TQB0E0644F
NORWEGIAN . TQB0E0644G
FINNISH . TQB0E0644H
LITHUANIAN . TQB0E0644I
PORTUGUESE . TQB0E0644J
DANISH . TQB0E0644K
BULGARIAN . TQB0E0644M
ROMANIAN . TQB0E0644N
LATVIAN . TQB0E0644O
POLISH . TQB0E0644P
HUNGARIAN . TQB0E0644Q
CZECH . TQB0E0644R
GREEK . TQB0E0644S
TURKISH . TQB0E0644T
ENGLISH . TQB0E0644U
CROATIAN . TQB0E0644V
SLOVAKIAN . TQB0E0644W
CD ROM . TQB0E0644X
ESTONIAN . TQB0E0644Z
I.C.s
EEPROM IC1120 X24C32LE8F
DIFFERENCES FOR MODEL TX--32LE8L
EXPLODED VIEW
A P.C.B. 22 A-32LE8L
AC CORD ASSY 23 TXASX01NJA-1
CABINET ASSY 24 TTY0E0270
MODEL LABEL 25 TBM0E1233-1
PEDESTAL ASSY 26 TTX0E0005-1
POWER BUTTON 27 TBX0E84500
MISCELLANEOUS COMPONENTS
IR/LED PANEL . TKP0E91901
INSTRUCTION BOOKS
ENGLISH . TQB0E0563-1
I.C.s
EEPROM IC1120 X24C32LE8L
DIFFERENCES FOR MODEL TX--32LE8P
26
