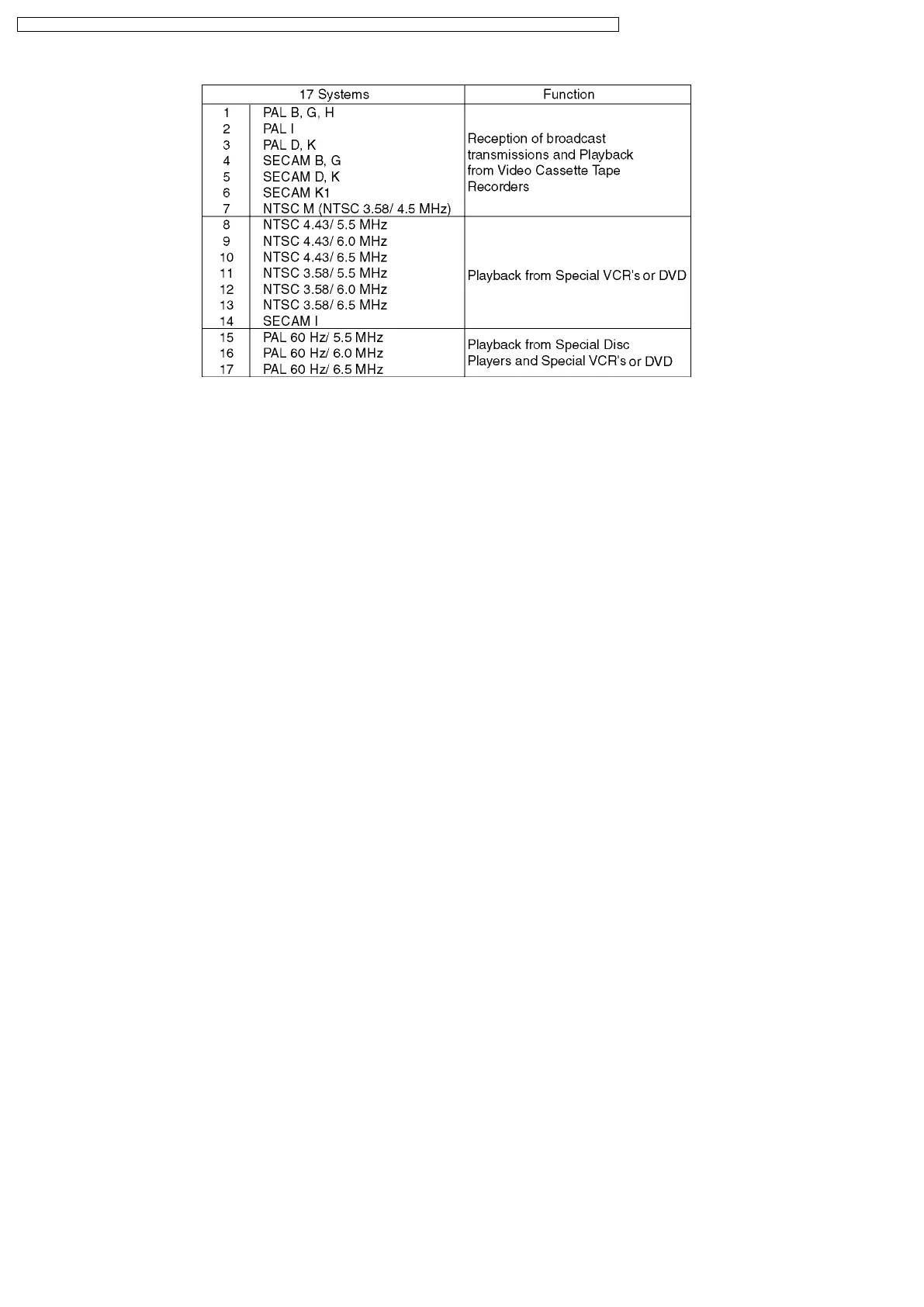

Receiving Channels
Regular TV
VHF BAND
2-12 (PAL /SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M U.S.A)
UHF BAND
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M U.S.A)
CATV
S1-S20 (OSCAR)
1-125 (U.S.A CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)
Aerial-Rear
UHF/ VHF
Operating Conditions
Temperature : 0°C - 40°C
Humidity : 20 % - 90 % RH (non-condensing)
Connection Terminals
AV1
VIDEO (RCA Pin Type) 1.0 Vp-p (75 Ω)
S-VIDEO (MINI DIN 4-pin) Y: 1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)
AUDIO L-R (RCA Pin Type × 2) 0.5 Vrms
AV2
VIDEO (RCA Pin Type) 1.0 Vp-p (75 Ω)
AUDIO L-R (RCA Pin Type × 2) 0.5 Vrms
Y 1.0 Vp-p (including synchronization)
P
B
C
B
/P
R
C
R
±0.35 Vp-p
AV3
VIDEO (RCA Pin Type) 1.0 Vp-p (75 Ω)
S-VIDEO (MINI DIN 4-pin) Y: 1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)
AUDIO L-R (RCA Pin Type × 2) 0.5 Vrms
HDMI 1/2
TYPE A Connectors
Audio Input for HDMI1
RCA PIN Type × 2 0.5 Vrms
MONITOR OUT
VIDEO (RCA Pin Type) 1.0 Vp-p (75 Ω)
AUDIO L-R (RCA Pin Type × 2) 0.5 Vrms
Dimensions ( W x H x D )
Including TV Stand
657mm × 525mm × 239mm 791mm × 615mm × 239mm
TV Set Only
657mm × 473mm × 127mm (TX-26LX70X/A/Y) 791mm × 563mm × 127mm (TX-32LX70X/A/Y)
2
TX-32LX70X / TX-32LX70A / TX-32LX70Y / TX-32LE7X / TX-32LE7Y / TX-26LX70X / TX-26LX70A / TX-26LX70Y / TX-26LE7X / TX-26LE7Y
