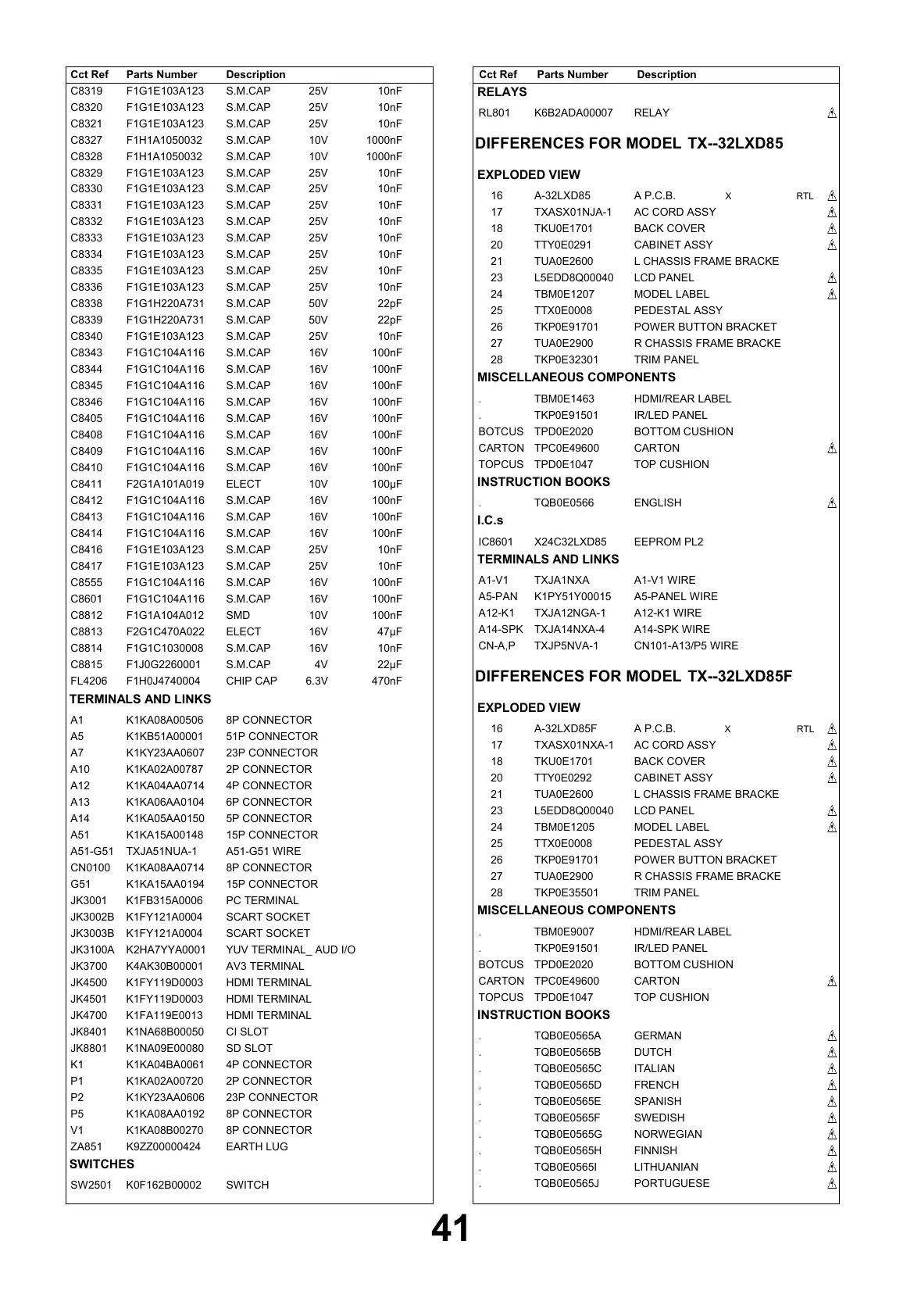

Panasonic TX-37LXD85F - Page 41

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CAPC8319 F1G1E103A123 25V 10nF
S.M.CAPC8320 F1G1E103A123 25V 10nF
S.M.CAPC8321 F1G1E103A123 25V 10nF
S.M.CAPC8327 F1H1A1050032 10V 1000nF
S.M.CAPC8328 F1H1A1050032 10V 1000nF
S.M.CAPC8329 F1G1E103A123 25V 10nF
S.M.CAPC8330 F1G1E103A123 25V 10nF
S.M.CAPC8331 F1G1E103A123 25V 10nF
S.M.CAPC8332 F1G1E103A123 25V 10nF
S.M.CAPC8333 F1G1E103A123 25V 10nF
S.M.CAPC8334 F1G1E103A123 25V 10nF
S.M.CAPC8335 F1G1E103A123 25V 10nF
S.M.CAPC8336 F1G1E103A123 25V 10nF
S.M.CAPC8338 F1G1H220A731 50V 22pF
S.M.CAPC8339 F1G1H220A731 50V 22pF
S.M.CAPC8340 F1G1E103A123 25V 10nF
S.M.CAPC8343 F1G1C104A116 16V 100nF
S.M.CAPC8344 F1G1C104A116 16V 100nF
S.M.CAPC8345 F1G1C104A116 16V 100nF
S.M.CAPC8346 F1G1C104A116 16V 100nF
S.M.CAPC8405 F1G1C104A116 16V 100nF
S.M.CAPC8408 F1G1C104A116 16V 100nF
S.M.CAPC8409 F1G1C104A116 16V 100nF
S.M.CAPC8410 F1G1C104A116 16V 100nF
ELECTC8411 F2G1A101A019 10V 100µF
S.M.CAPC8412 F1G1C104A116 16V 100nF
S.M.CAPC8413 F1G1C104A116 16V 100nF
S.M.CAPC8414 F1G1C104A116 16V 100nF
S.M.CAPC8416 F1G1E103A123 25V 10nF
S.M.CAPC8417 F1G1E103A123 25V 10nF
S.M.CAPC8555 F1G1C104A116 16V 100nF
S.M.CAPC8601 F1G1C104A116 16V 100nF
SMDC8812 F1G1A104A012 10V 100nF
ELECTC8813 F2G1C470A022 16V 47µF
S.M.CAPC8814 F1G1C1030008 16V 10nF
S.M.CAPC8815 F1J0G2260001 4V 22µF
CHIP CAPFL4206 F1H0J4740004 6.3V 470nF
TERMINALS AND LINKS
8P CONNECTOR A1 K1KA08A00506
51P CONNECTOR A5 K1KB51A00001
23P CONNECTOR A7 K1KY23AA0607
2P CONNECTOR A10 K1KA02A00787
4P CONNECTOR A12 K1KA04AA0714
6P CONNECTOR A13 K1KA06AA0104
5P CONNECTOR A14 K1KA05AA0150
15P CONNECTOR A51 K1KA15A00148
A51-G51 WIRE A51-G51 TXJA51NUA-1
8P CONNECTOR CN0100 K1KA08AA0714
15P CONNECTOR G51 K1KA15AA0194
PC TERMINAL JK3001 K1FB315A0006
SCART SOCKET JK3002B K1FY121A0004
SCART SOCKET JK3003B K1FY121A0004
YUV TERMINAL_ AUD I/OJK3100A K2HA7YYA0001
AV3 TERMINAL JK3700 K4AK30B00001
HDMI TERMINAL JK4500 K1FY119D0003
HDMI TERMINAL JK4501 K1FY119D0003
HDMI TERMINAL JK4700 K1FA119E0013
CI SLOT JK8401 K1NA68B00050
SD SLOT JK8801 K1NA09E00080
4P CONNECTOR K1 K1KA04BA0061
2P CONNECTOR P1 K1KA02A00720
23P CONNECTOR P2 K1KY23AA0606
8P CONNECTOR P5 K1KA08AA0192
8P CONNECTOR V1 K1KA08B00270
EARTH LUG ZA851 K9ZZ00000424
SWITCHES
SWITCH SW2501 K0F162B00002
RELAYS
RELAY RL801 K6B2ADA00007
DIFFERENCES FOR MODEL TX--32LXD85
EXPLODED VIEW
A P.C.B. 16 A-32LXD85
AC CORD ASSY 17 TXASX01NJA-1
BACK COVER 18 TKU0E1701
CABINET ASSY 20 TTY0E0291
L CHASSIS FRAME BRACKE 21 TUA0E2600
LCD PANEL 23 L5EDD8Q00040
MODEL LABEL 24 TBM0E1207
PEDESTAL ASSY 25 TTX0E0008
POWER BUTTON BRACKET 26 TKP0E91701
R CHASSIS FRAME BRACKE 27 TUA0E2900
TRIM PANEL 28 TKP0E32301
MISCELLANEOUS COMPONENTS
HDMI/REAR LABEL . TBM0E1463
IR/LED PANEL . TKP0E91501
BOTTOM CUSHION BOTCUS TPD0E2020
CARTON CARTON TPC0E49600
TOP CUSHION TOPCUS TPD0E1047
INSTRUCTION BOOKS
ENGLISH . TQB0E0566
I.C.s
EEPROM PL2 IC8601 X24C32LXD85
TERMINALS AND LINKS
A1-V1 WIRE A1-V1 TXJA1NXA
A5-PANEL WIRE A5-PAN K1PY51Y00015
A12-K1 WIRE A12-K1 TXJA12NGA-1
A14-SPK WIRE A14-SPK TXJA14NXA-4
CN101-A13/P5 WIRECN-A,P TXJP5NVA-1
DIFFERENCES FOR MODEL TX--32LXD85F
EXPLODED VIEW
A P.C.B. 16 A-32LXD85F
AC CORD ASSY 17 TXASX01NXA-1
BACK COVER 18 TKU0E1701
CABINET ASSY 20 TTY0E0292
L CHASSIS FRAME BRACKE 21 TUA0E2600
LCD PANEL 23 L5EDD8Q00040
MODEL LABEL 24 TBM0E1205
PEDESTAL ASSY 25 TTX0E0008
POWER BUTTON BRACKET 26 TKP0E91701
R CHASSIS FRAME BRACKE 27 TUA0E2900
TRIM PANEL 28 TKP0E35501
MISCELLANEOUS COMPONENTS
HDMI/REAR LABEL . TBM0E9007
IR/LED PANEL . TKP0E91501
BOTTOM CUSHION BOTCUS TPD0E2020
CARTON CARTON TPC0E49600
TOP CUSHION TOPCUS TPD0E1047
INSTRUCTION BOOKS
GERMAN . TQB0E0565A
DUTCH . TQB0E0565B
ITALIAN . TQB0E0565C
FRENCH . TQB0E0565D
SPANISH . TQB0E0565E
SWEDISH . TQB0E0565F
NORWEGIAN . TQB0E0565G
FINNISH . TQB0E0565H
LITHUANIAN . TQB0E0565I
PORTUGUESE . TQB0E0565J
41
