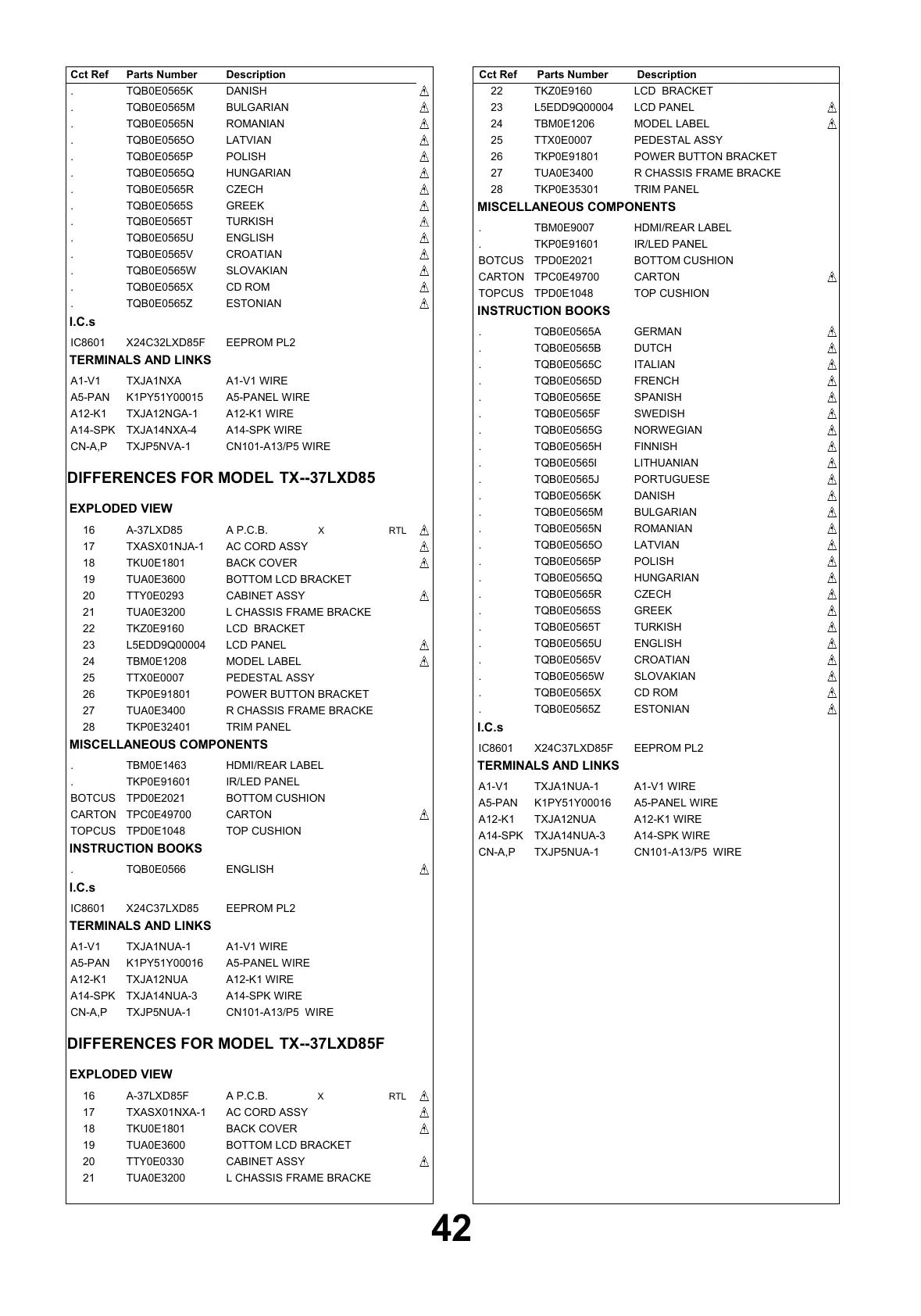

Panasonic TX-37LXD85F - Page 42

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
DANISH . TQB0E0565K
BULGARIAN . TQB0E0565M
ROMANIAN . TQB0E0565N
LATVIAN . TQB0E0565O
POLISH . TQB0E0565P
HUNGARIAN . TQB0E0565Q
CZECH . TQB0E0565R
GREEK . TQB0E0565S
TURKISH . TQB0E0565T
ENGLISH . TQB0E0565U
CROATIAN . TQB0E0565V
SLOVAKIAN . TQB0E0565W
CD ROM . TQB0E0565X
ESTONIAN . TQB0E0565Z
I.C.s
EEPROM PL2 IC8601 X24C32LXD85F
TERMINALS AND LINKS
A1-V1 WIRE A1-V1 TXJA1NXA
A5-PANEL WIRE A5-PAN K1PY51Y00015
A12-K1 WIRE A12-K1 TXJA12NGA-1
A14-SPK WIRE A14-SPK TXJA14NXA-4
CN101-A13/P5 WIRECN-A,P TXJP5NVA-1
DIFFERENCES FOR MODEL TX--37LXD85
EXPLODED VIEW
A P.C.B. 16 A-37LXD85
AC CORD ASSY 17 TXASX01NJA-1
BACK COVER 18 TKU0E1801
BOTTOM LCD BRACKET 19 TUA0E3600
CABINET ASSY 20 TTY0E0293
L CHASSIS FRAME BRACKE 21 TUA0E3200
LCD BRACKET 22 TKZ0E9160
LCD PANEL 23 L5EDD9Q00004
MODEL LABEL 24 TBM0E1208
PEDESTAL ASSY 25 TTX0E0007
POWER BUTTON BRACKET 26 TKP0E91801
R CHASSIS FRAME BRACKE 27 TUA0E3400
TRIM PANEL 28 TKP0E32401
MISCELLANEOUS COMPONENTS
HDMI/REAR LABEL . TBM0E1463
IR/LED PANEL . TKP0E91601
BOTTOM CUSHION BOTCUS TPD0E2021
CARTON CARTON TPC0E49700
TOP CUSHION TOPCUS TPD0E1048
INSTRUCTION BOOKS
ENGLISH . TQB0E0566
I.C.s
EEPROM PL2 IC8601 X24C37LXD85
TERMINALS AND LINKS
A1-V1 WIRE A1-V1 TXJA1NUA-1
A5-PANEL WIRE A5-PAN K1PY51Y00016
A12-K1 WIRE A12-K1 TXJA12NUA
A14-SPK WIRE A14-SPK TXJA14NUA-3
CN101-A13/P5 WIRECN-A,P TXJP5NUA-1
DIFFERENCES FOR MODEL TX--37LXD85F
EXPLODED VIEW
A P.C.B. 16 A-37LXD85F
AC CORD ASSY 17 TXASX01NXA-1
BACK COVER 18 TKU0E1801
BOTTOM LCD BRACKET 19 TUA0E3600
CABINET ASSY 20 TTY0E0330
L CHASSIS FRAME BRACKE 21 TUA0E3200
LCD BRACKET 22 TKZ0E9160
LCD PANEL 23 L5EDD9Q00004
MODEL LABEL 24 TBM0E1206
PEDESTAL ASSY 25 TTX0E0007
POWER BUTTON BRACKET 26 TKP0E91801
R CHASSIS FRAME BRACKE 27 TUA0E3400
TRIM PANEL 28 TKP0E35301
MISCELLANEOUS COMPONENTS
HDMI/REAR LABEL . TBM0E9007
IR/LED PANEL . TKP0E91601
BOTTOM CUSHION BOTCUS TPD0E2021
CARTON CARTON TPC0E49700
TOP CUSHION TOPCUS TPD0E1048
INSTRUCTION BOOKS
GERMAN . TQB0E0565A
DUTCH . TQB0E0565B
ITALIAN . TQB0E0565C
FRENCH . TQB0E0565D
SPANISH . TQB0E0565E
SWEDISH . TQB0E0565F
NORWEGIAN . TQB0E0565G
FINNISH . TQB0E0565H
LITHUANIAN . TQB0E0565I
PORTUGUESE . TQB0E0565J
DANISH . TQB0E0565K
BULGARIAN . TQB0E0565M
ROMANIAN . TQB0E0565N
LATVIAN . TQB0E0565O
POLISH . TQB0E0565P
HUNGARIAN . TQB0E0565Q
CZECH . TQB0E0565R
GREEK . TQB0E0565S
TURKISH . TQB0E0565T
ENGLISH . TQB0E0565U
CROATIAN . TQB0E0565V
SLOVAKIAN . TQB0E0565W
CD ROM . TQB0E0565X
ESTONIAN . TQB0E0565Z
I.C.s
EEPROM PL2 IC8601 X24C37LXD85F
TERMINALS AND LINKS
A1-V1 WIRE A1-V1 TXJA1NUA-1
A5-PANEL WIRE A5-PAN K1PY51Y00016
A12-K1 WIRE A12-K1 TXJA12NUA
A14-SPK WIRE A14-SPK TXJA14NUA-3
CN101-A13/P5 WIRECN-A,P TXJP5NUA-1
42
RTL
RTL
X
X
