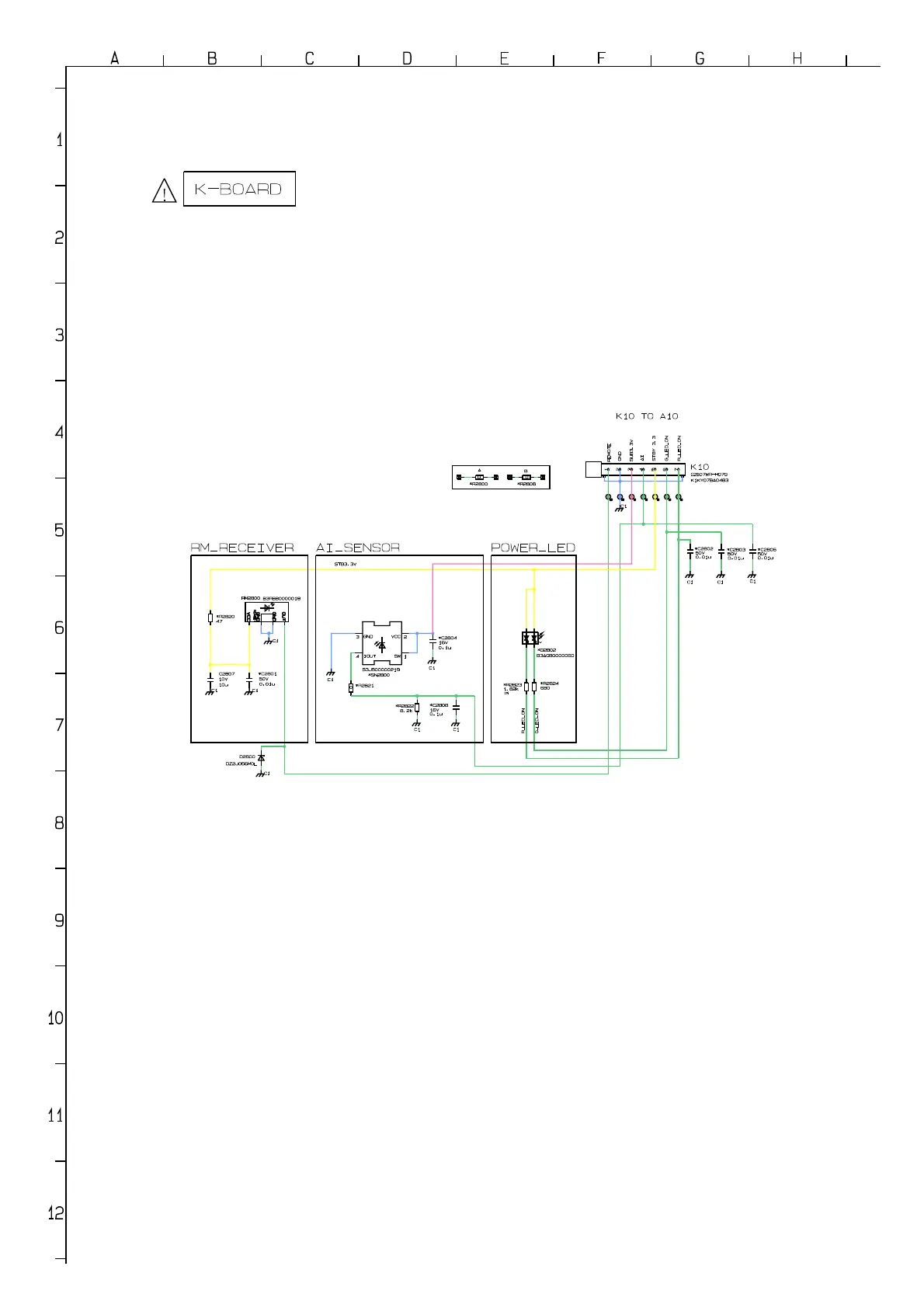

Panasonic TX-42A400B - K-BOARD Schematics

G R
(CASE)
GND
VCC GND OUT
G_LED_ON
STB3.3V
R_LED_ON
*C2801
0.01u
50V
*C2803
0.01u
50V
*C2802
0.01u
50V
*C2804
0.1u
16V
C2807
10u
10V
*C2806
50V
0.01u
*C2808
0.1u
16V
*D2802
B3AGB0000060
<
D2800
DZ2J056M0L
K10
K1KY07BA0483
12507WR-H07G
1 2 3 4 5 6 7
C1C1
C1
C1
C1
C1
C1
C1
C1
C1
C1
C1
*SN2800
B3JB00000219
1
SW
2
VCC
3
GND
4
IOUT
RM2800
B3RBB0000018
*R2824
680
*R2820
47
*R2821
0
1%
*R2823
1.82k
*R2822
8.2k
*R2800
0
*R2808
0
R_LED_ON AI STBY 3.3 GND G_LED_ON
SUB3.3V
REMOTE
A
B
RM_RECEIVER AI_SENSOR POWER_LED
K10 TO A10
K-BOARD
!
A B C D E F G H
1
2
3
4
5
6
7
8
9
10
11
12
57
