26

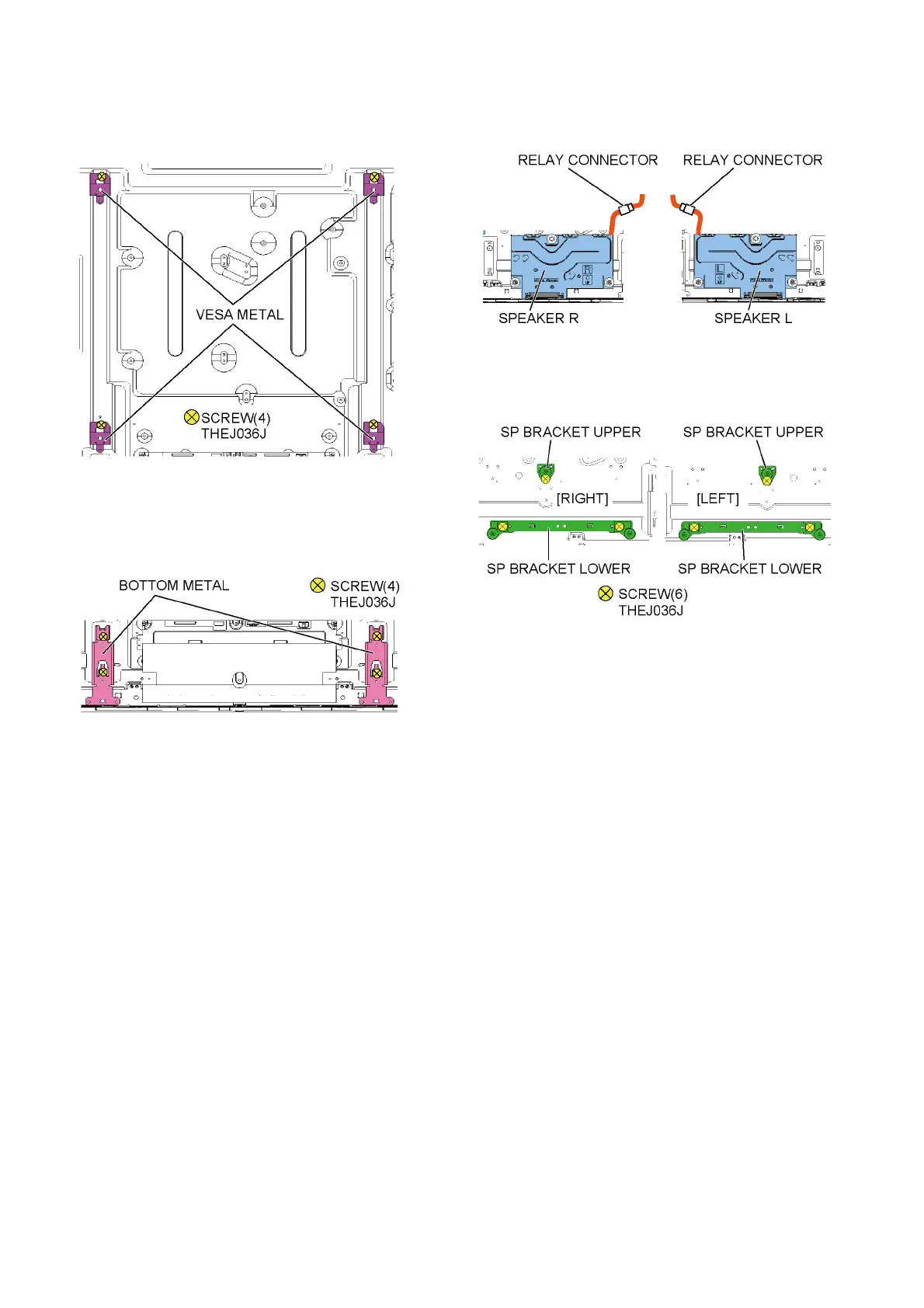

8.2.9. VESA Metals
1. Remove the 4 screws.
2. Remove the 4 VESA Metals.
8.2.10. Bottom Metals
1. Remove the 4 screws.
2. Remove the 2 Bottom Metals.
8.2.11. Speaker L/R
1. Disconnect the 2 relay connectors.
2. Remove the Speaker L/R.
3. Remove the 6 screws.
4. Remove the 2 SP Bracket Uppers and 2 SP Bracket
Lowers.
