Panasonic TX-51P100X - Chassis Boards Layout

- 4 -

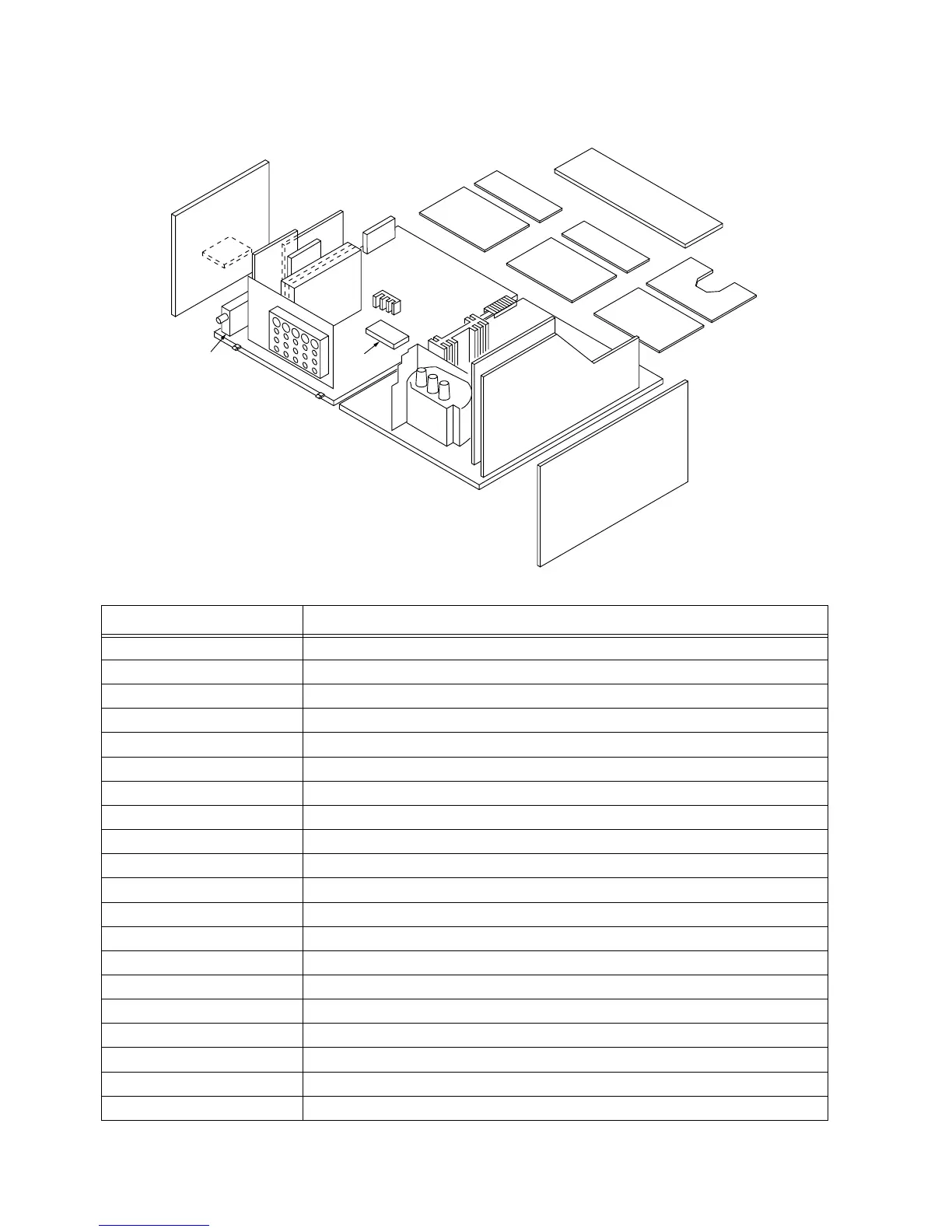

Chassis Board Layout
P
D
FBT
MPU
E
A
G
H
B2
DG
CF
LB
LG
LR
SB
SG
SR
DC
CP
W
T
F
TNR
Board-Name Function
A-Board Main
D-Board Main Power
P-Board Line Filter
G-Board Control Panel
E-Board Horizontal Deflection, High Voltage
F-Board Vertical Deflection
CP-Board Converter Output
DC-Board Digital Converter
W-Board White Balance
LR-Board CRT Drive (R)
LG-Board CRT Drive (G)
LB-Board CRT Drive (B)
SG-Board VM Output (G)
SR-Board VM Output (R)
SB-Board VM Output (B)
DG1-Board Digital Core
H-Board Rear terminal
T-Board Text
B2-Board VIF/SIF
CF-Board Interface correction
