Receiving System
Receiving Channels Regular TV
VHF BAND
2-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M U.S.A)
UHF BAND
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M U.S.A)
CATV
S1-S20 (OSCAR)
1-125 (U.S.A CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)

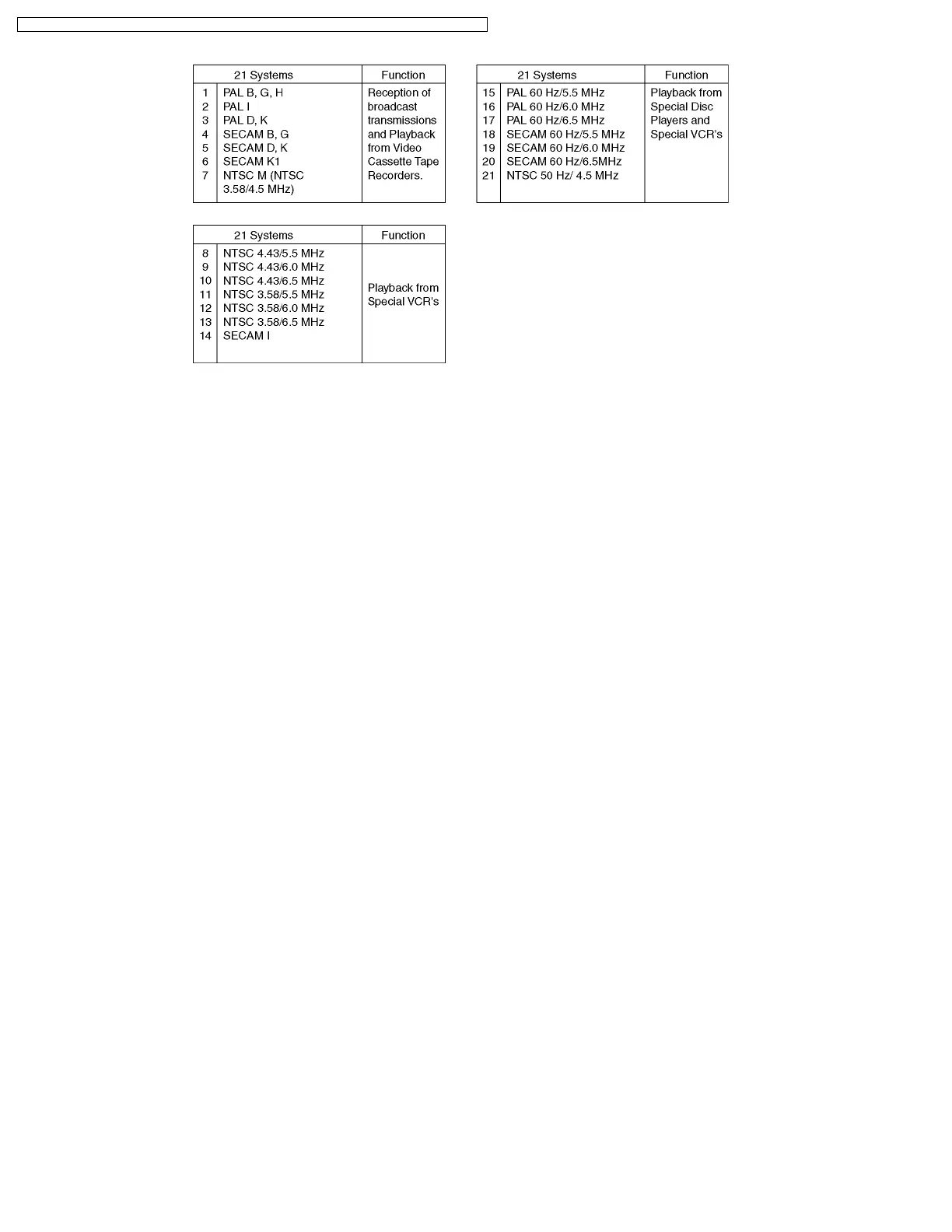

Receiving Stereo System NICAM I, NICAM B/G, NICAM D, A2 (German)
Tuning System Frequency synthesizer
A
uto Search Tuning
POSITION: 100 Position
DIRECT: 125 Position
Audio Output 40 W [20 W + 20 W] (10 % THD)
Speaker System Woofer (13 cm) × 2 + Squawker (12 cm × 6 cm) × 2.....TX-43P800H/X
Woofer (13 cm) × 2 + Squawker (12 cm × 6 cm) × 2 + Tweeter (5 cm) × 2.....TX-51P800H/X
Headphones 3.5mmPlug×1
Aerial Impedance 75 9 Unbalanced coaxial
Video / Audio / Component Terminals
AV 1, 2, 3, 4, S Video In Y: 1 V p-p, 75 9
C: 0.3 V p-p, 75 9
DVD (Y/ P
B
/P
R
)
Video In 1 V p-p, 75 9
Audio In
A
pprox. 0.5 V 47 K9
Monitor Out Video Out 1 V p-p, 75 9
Audio Out
A
pprox. 0.5 V, 1 K9
2
TX-51P800X / TX-51P800HM / TX-51P800HQ / TX-43P800X / TX-43P800HM / TX-43P800HQ / TX-43P800HZ
