8.2.28. Metal Frames, Support Metal
Frames, Metal Rear Panel BTM and
AL Cabinet Assy

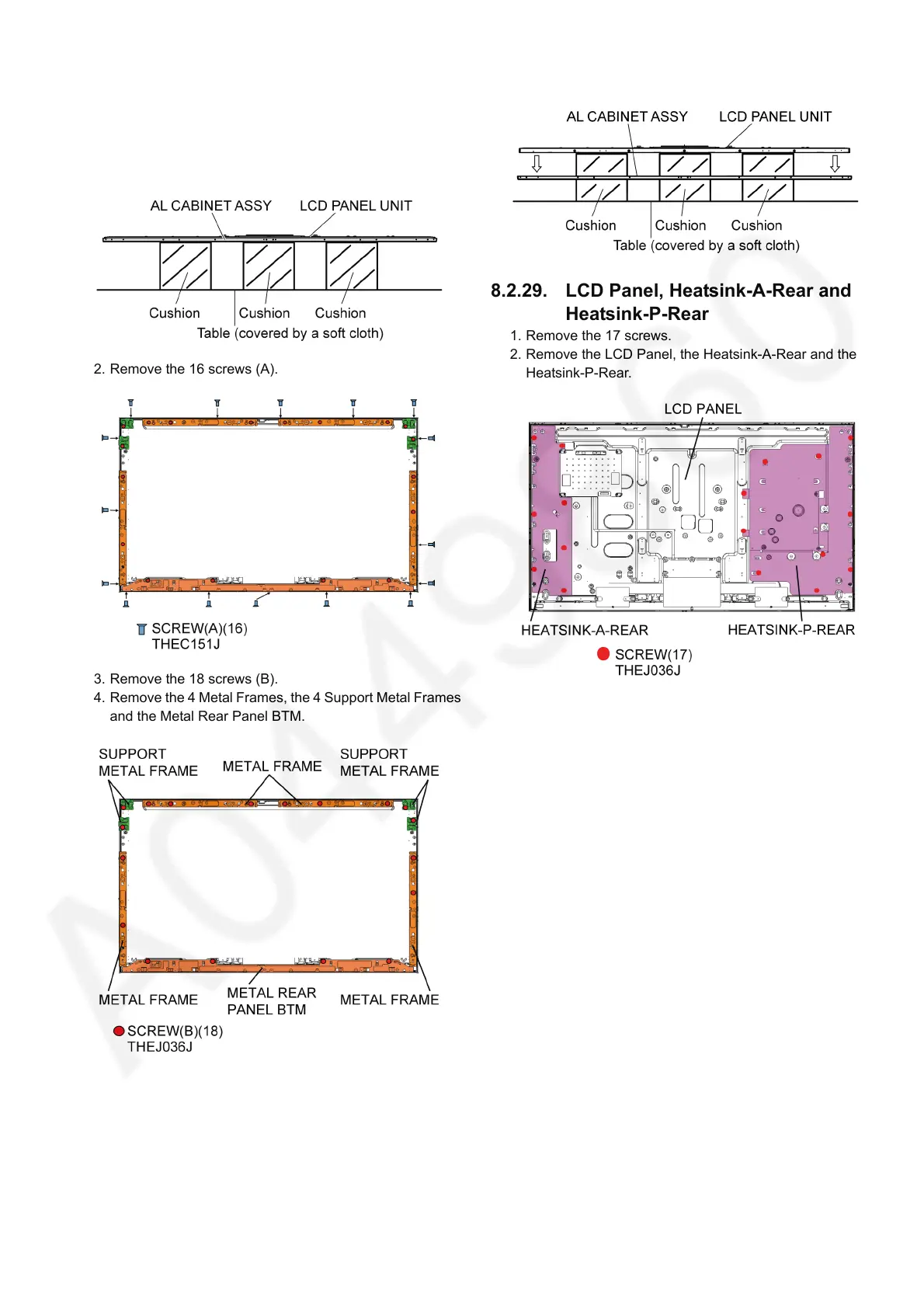

1. Place the Cabinet assy on a flat surface of a table
(covered by a soft cloth) and a cushion.
2. Remove the 16 screws (A).
3. Remove the 18 screws (B).
4. Remove the 4 Metal Frames, the 4 Support Metal Frames
and the Metal Rear Panel BTM.
5. Remove the AL Cabinet Assy.
8.2.29. LCD Panel, Heatsink-A-Rear and
Heatsink-P-Rear
1. Remove the 17 screws.
2. Remove the LCD Panel, the Heatsink-A-Rear and the
Heatsink-P-Rear.
