9.13. Remove the C1-Board

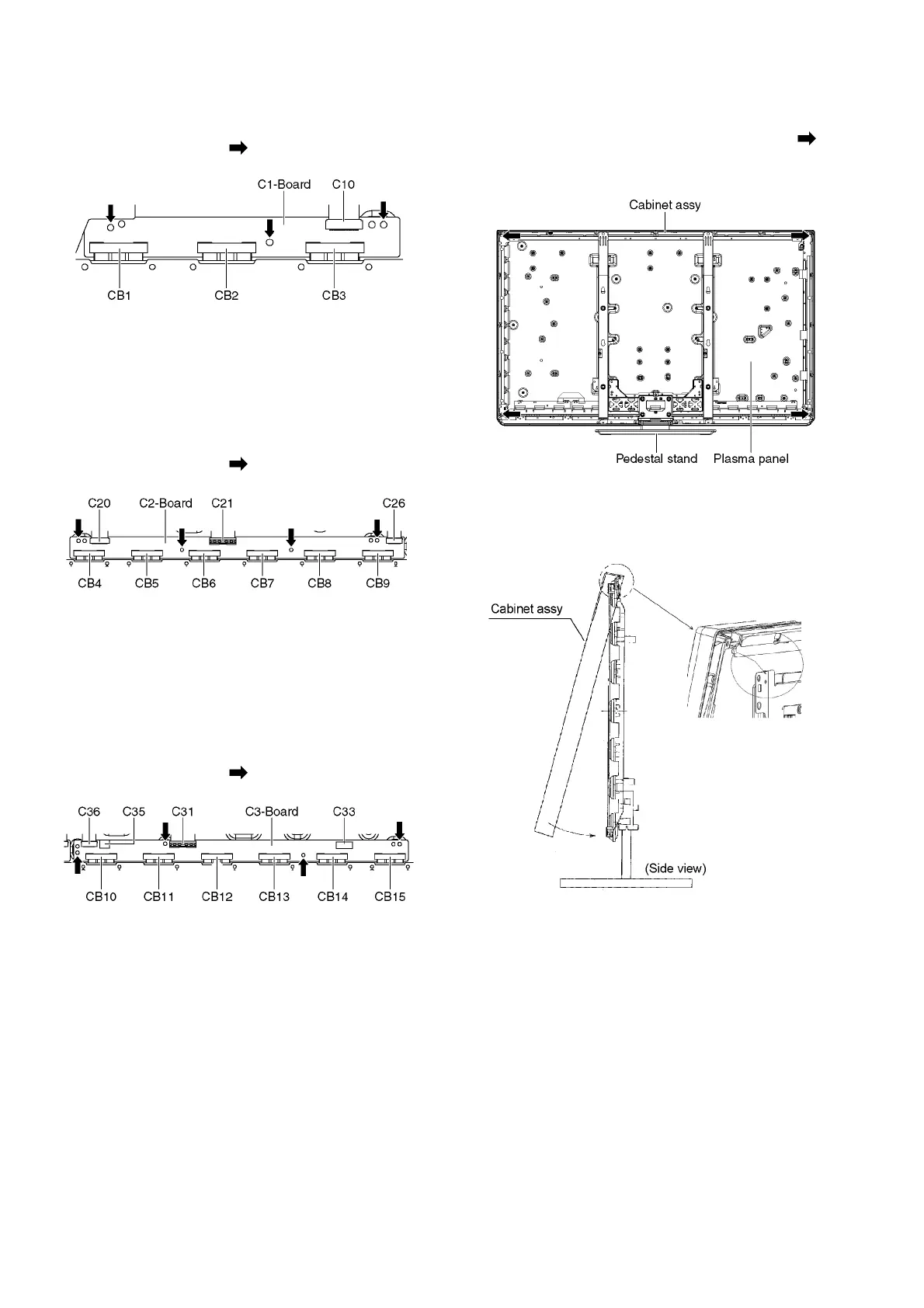

1. Disconnect the flexible cables (CB1, CB2 and CB3).
2. Disconnect the flexible cable (C10).
3. Remove the screws (×3 ) and remove the C1-Board.
9.14. Remove the C2-Board
1. Remove the Stand bracket and the Hanger metal R. (See
section 9.12.)
2. Disconnect the flexible cables (CB4, CB5, CB6, CB7,
CB8 and CB9).
3. Disconnect the flexible cables (C20, C21 and C26).
4. Remove the screws (×4 ) and remove the C2-Board.
9.15. Remove the C3-Board
1. Remove the Stand bracket and the Hanger metal L. (See
section 9.12.)
2. Disconnect the flexible cables (CB10, CB11, CB12,
CB13, CB14 and CB15).
3. Disconnect the flexible cables (C31, C33 and C36).
4. Disconnect the connector (C35).
5. Remove the screws (×4 ) and remove the C3-Board.
9.16. Remove the Plasma panel sec-
tion from the Cabinet assy
1. Remove the Plasma panel fastening screws (×4 ) and
remove the Cabinet assy.
2. For leaving the Cabinet assy from the Plasma panel, pull
the bottom of the Cabinet assy forward, lift, and remove.
