7
3

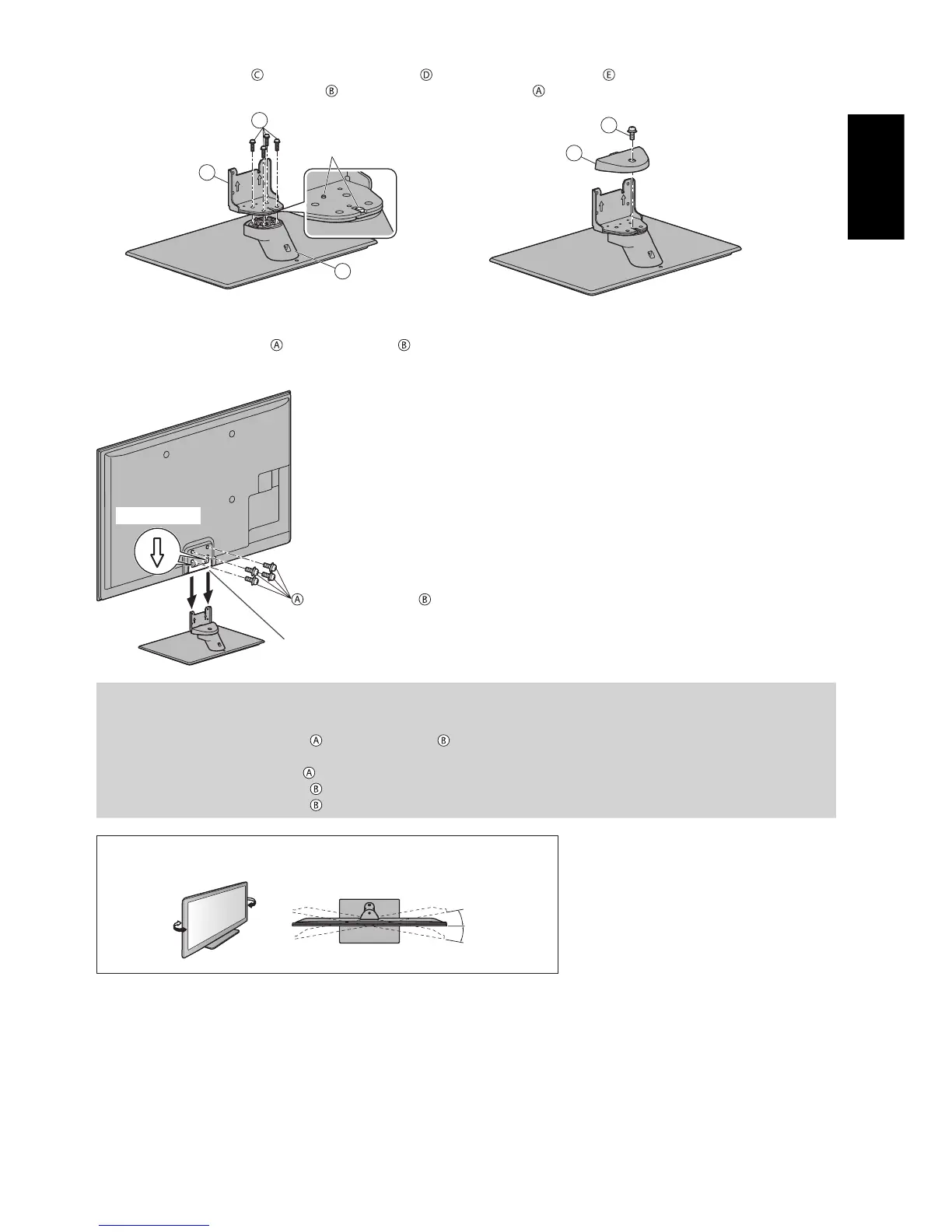

Attach the bracket to the tabs of the neck
and fix with assembly screws
4
Attach the cover and fix securely with assembly
screw
B
C
D
Tabs (top)
E
A
■ Securing the TV
Use the assembly screws (TX-P50VT50E) / (TX-P55VT50E, TX-P65VT50E) to fasten securely.
●
Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.
●
Carry out the work on a horizontal and level surface.
Hole for pedestal installation
Arrow mark
(TX-P50VT50E) / (TX-P55VT50E, TX-P65VT50E)
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws
(TX-P50VT50E) / (TX-P55VT50E, TX-P65VT50E) from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screw
from the cover.
4 Remove the assembly screws
from the bracket.
5 Remove the assembly screws from the back of the base and pull out the neck.
Adjusting the panel to your desired angle (TX-P50VT50E)
●
Do not place any objects within the full rotation range.
10°
10°
(View from the top)
