■ Slim Low Static Ducted Type (M1 Type)
3-17. Required Minimum Space for Installation and
Service
●
This air conditioner is usually installed above the ceiling so
that the indoor unit and ducts are not visible. Only the air
intake and air outlet ports are visible from below.
●

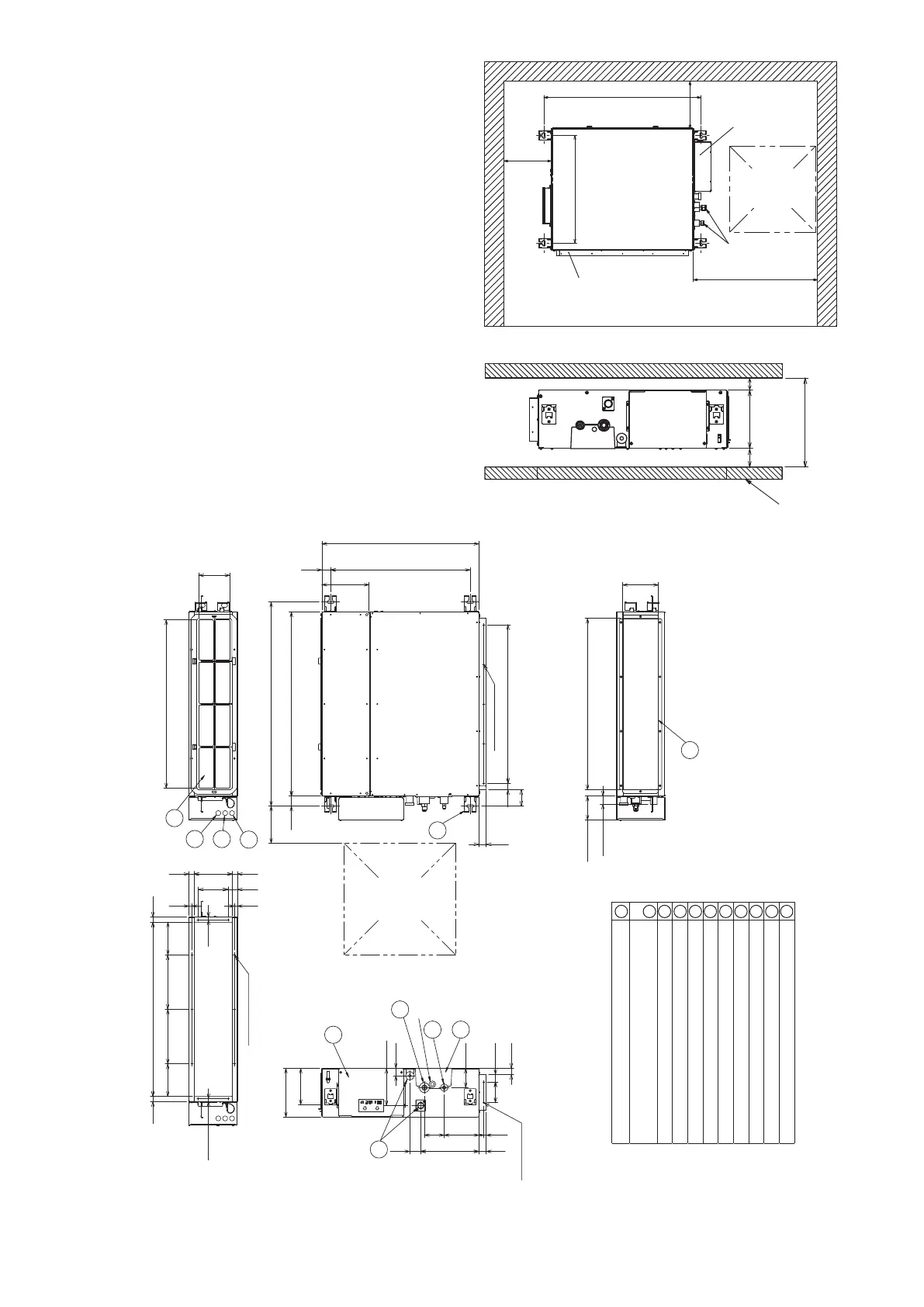

The minimum space for installation and service is shown in
the diagram. (Fig. 3-54)
●
*H dimension means the minimum height of the unit.
●
Select the *H dimension such that a downward slope of at
least 1/100 is ensured as indicated in “3-22. Installing the
Drain Pipe”.
●
The diagram shows the detailed dimensions of the indoor
unit. (Fig. 3-55)
1 Refrigerant tubing joint (narrow tube) 2 Refrigerant tubing joint (wide tube) 3 Upper and bottom drain port (O.D.26mm) 4 Suspension lug 5 Power supply outlet (ø17) 6 Flange for air inlet duct 7 Pl cover 8 Electrical component box 9 Filter
10 Inter-unit control wiring and control wiring for
group control outlet (ø15)
11
Remote control wiring outlet (ø15)
640 (160x4)
564 (Suspension bolt pitch)
5-ø3.1(Hole)
824 (Suspension bolt pitch)
* Filter Uninstalled
2-ø3.1(Hole)
Inspection access
(450x450)
(Field supply)
Unit: mm
10-ø3.1(Hole)
Water inlet
Fig. 3-54
Fig. 3-55
824(Suspension bolt pitch)
Electrical
component box
Inspection
access
450x450
Refrigerant tubing
Min. 650 or more
Flange for air
outlet duct
Min. 200 or more
Unit: mm
Ceiling
*H=Min. 240
Min. 20 or more
Min. 100 mm or more for bottom air intake
Min. 20 or more
Flange for air inlet duct
(Flange for air inlet duct)
Min. 200
or more
