Active Optical Connector V Series
–5–
ACCTB69E 201602-T

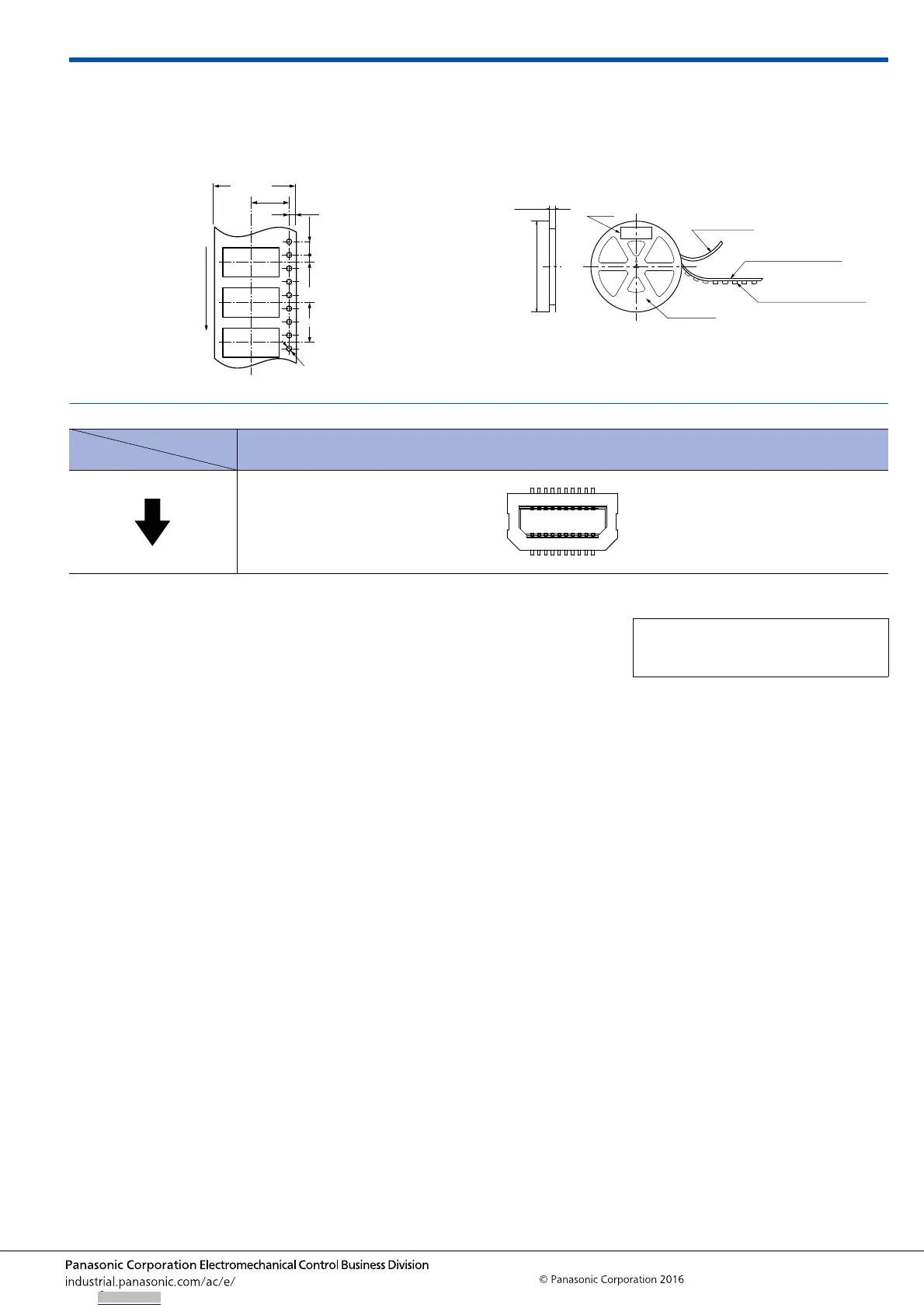

EMBOSSED TAPE DIMENSIONS (Unit: mm)
Receptacle: Embossed tape packaging
Receptacle orientation with respect to embossed tape feeding direction
Please refer to the latest product
specifications when designing your
product.
• Specifications for taping (In accordance with JIS C 0806:1990.
However, not applied to the mounting-hole pitch of some
connectors.)
• Specifications for the plastic reel (In accordance with EIAJ ET-
7200B.)
11.5
1.75
4
2
12.0
24.0±0.3
Leading direction after packaging
1.5 dia.
+0.1
0
25.4±1
Top cover tape
Embossed carrier tape
Embossed mounting-hole
Taping reel
380 dia.
Label
Type
Direction
of tape progress
Receptacle
