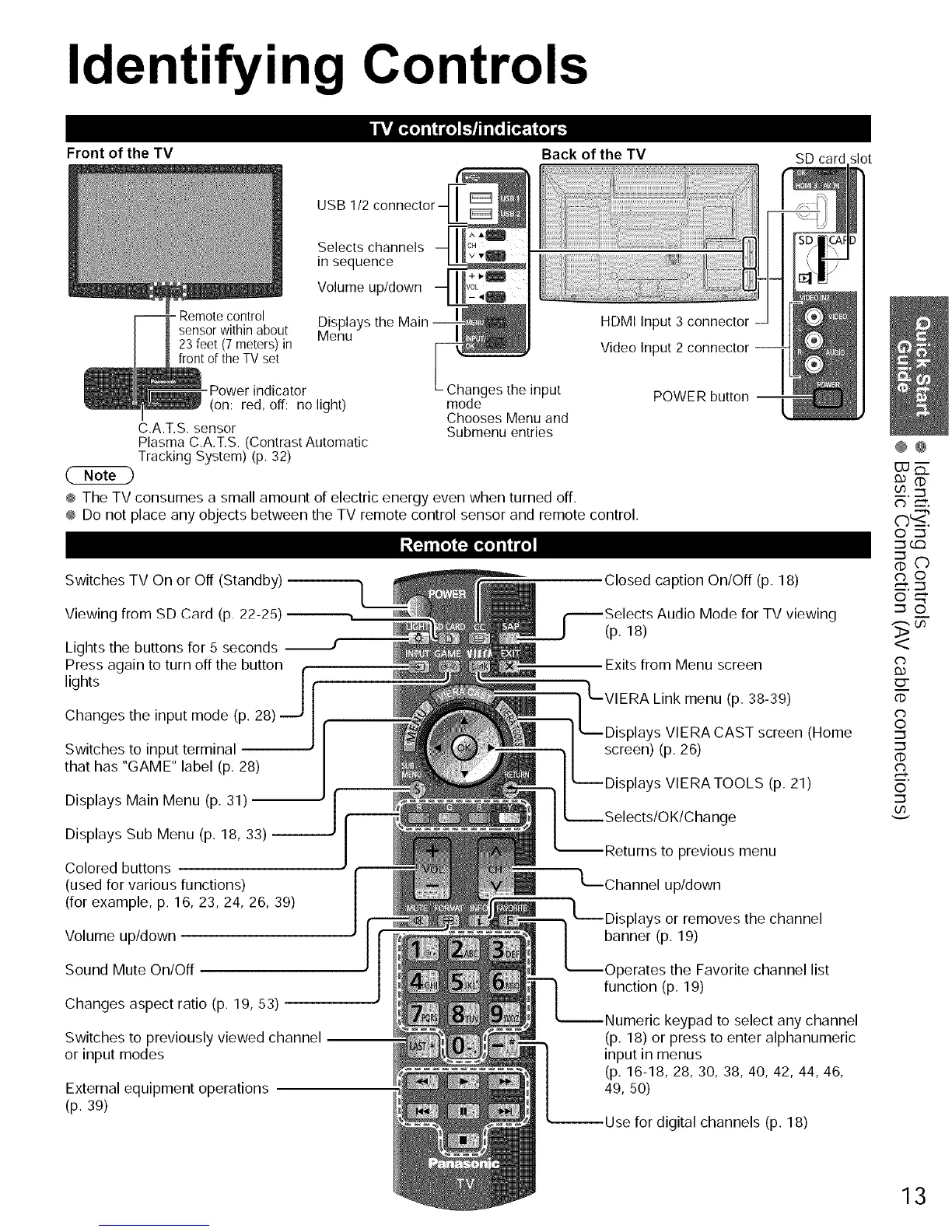

Identifying Controls
Front of the TV
Back of the TV
SD card _lot
USB 1/2
Selects channels
in sequence
Volume up/down
- Remote control Displays the
sensor within about Menu
23 feet (7 meters) in
front of the TV set
HDMI Input 3 connector
Video Input 2 connector
-Power indicator Changes the input
(on: red, off: no light) mode
Chooses Menu and
C.A.T.S. sensor Submenu entries
Plasma C.A.T.S. (Contrast Automatic
Tracking System) (p. 32)
® The TV consumes a small amount of electric energy even when turned off.
® Do not place any objects between the TV remote control sensor and remote control.
POWER button
Switches TV On or Off (Standby) --
Viewing from SD Card (p. 22-25)
Lights the buttons for 5 seconds
Press again to turn off the button (
lights /
Changes the input mode (p. 28)
Switches to input terminal --
that has "GAME" label (p. 28)
Displays Main Menu (p. 31) --
Displays Sub Menu (p. 18, 33)
Colored buttons
(used for various functions)
(for example, p. 16, 23, 24, 26, 39)
Volume up/down
Sound Mute On/Off
Changes aspect ratio (p. 19, 53)
Switches to previously viewed channel
or input modes
External equipment operations
(p. 39)
Closed caption On/Off (p. 18)
Audio Mode for TV viewing
(p. 18)
Exits from Menu screen
L.L__1i_F_yLsinvkIEmRA_(APs_ 8s-c3r_)en (Home
screen) (p. 26)
VIERATOOLS (p. 21)
--Returns to previous menu
up/down
L-Displays or removes the channel
banner (p. 19)
--Operates the Favorite channel list
function (p. 19)
keypad to select any channel
(p. 18) or press to enter alphanumeric
input in menus
(p. 16-18, 28, 30, 38, 40, 42, 44, 46,
49, 50)
digital channels (p. 18)
@@
Eu_-
_CD
__..-_
©-._
_cc1
cb
cb
©
cb
©
13
