Aquarea air / water heat pump – design handbook 07 / 2014
Series Units Hydromodule
(Indoor unit
Bi-Bloc)
Outdoor unit
(Bi-Bloc or
Monobloc)
Operating mode Nominal
heating
capacity kW
Capacity of
additional elec-
tric heater kW
Single or
Three phase
Aquarea LT
WH-SDF03E3E5* WH-UD03EE5 Heating 3 3 single phase
WH-SDC03E3E5* WH-UD03EE5 Heating + cooling 3 3 single phase
WH-SDF05E3E5* WH-UD05EE5 Heating 5 3 single phase
WH-SDC05E3E5* WH-UD05EE5 Heating + cooling 5 3 single phase
WH-SDC07F3E5* WH-UD07FE5 Heating + cooling 7 3 single phase
WH-SDC09F3E5* WH-UD09FE5 Heating + cooling 9 3 single phase
WH-SDC09F3E8* WH-UD09FE8 Heating + cooling 9 3 three phase
WH-SDC12F6E5* WH-UD12FE5 Heating + cooling 12 6 single phase
WH-SDC12F9E8* WH-UD12FE8 Heating + cooling 12 9 three phase
WH-SDC14F6E5* WH-UD14FE5 Heating + cooling 14 6 single phase
WH-SDC14F9E8* WH-UD14FE8 Heating + cooling 14 9 three phase
WH-SDC16F6E5* WH-UD16FE5 Heating + cooling 16 6 single phase
WH-SDC16F9E8* WH-UD16FE8 Heating + cooling 16 9 three phase
WH-MDC05F3E5* Heating + cooling 5 3 single phase
WH-MDF06E3E5* Heating 6 3 single phase
WH-MDF09E3E5* Heating 9 3 single phase
WH-MDC09E3E5* Heating + cooling 9 3 single phase
WH-MDF09C3E8 Heating 9 3 three phase
WH-MDC09C3E8 Heating + cooling 9 3 three phase
WH-MDF12C6E5 Heating 12 6 single phase
WH-MDC12C6E5 Heating + cooling 12 6 single phase
WH-MDF12C9E8 Heating 12 9 three phase
WH-MDC12C9E8 Heating + cooling 12 9 three phase
WH-MDF14C6E5 Heating 14 6 single phase
WH-MDC14C6E5 Heating + cooling 14 6 single phase
WH-MDF14C9E8 Heating 14 9 three phase
WH-MDC14C9E8 Heating + cooling 14 9 three phase
WH-MDF16C6E5 Heating 16 6 single phase
WH-MDC16C6E5 Heating + cooling 16 6 single phase
WH-MDF16C9E8 Heating 16 9 three phase
WH-MDC16C9E8 Heating + cooling 16 9 three phase
* Devices have a high efciency pump and full the criteria of the Ecodesign Directive valid from 2015 for energy-related products (ErP)

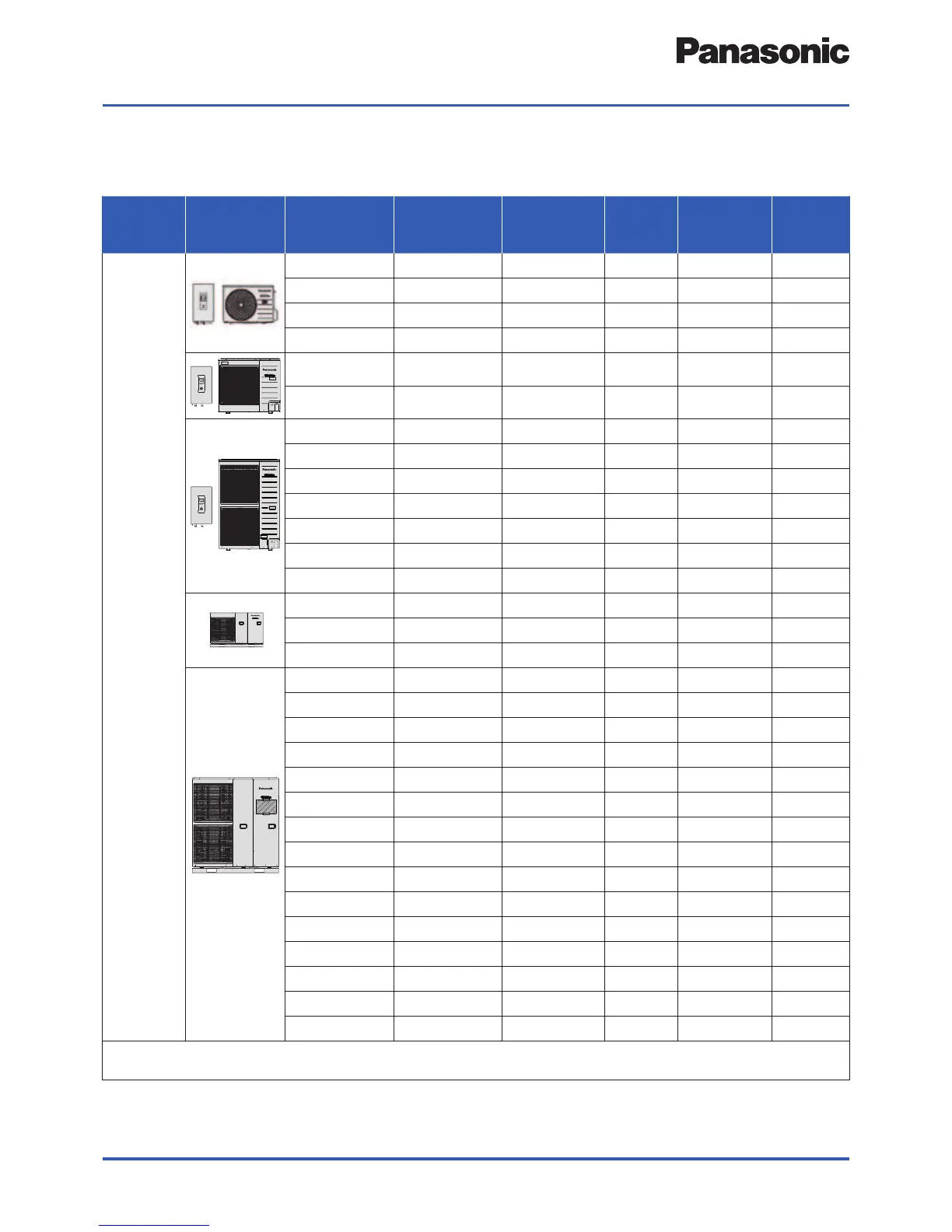

Overview of units
