b Use a cable tie (locally procured) to attach the coaxial cable to the camera
mounting base.
Important:
• The cable tie shall be made of metallic or durable material to be strong enough because
the tie plays the role of camera drop prevention measures in case.
n Connect the power cord and turn on the power.
WV-CL930
Connect between the power connector on the rear side of the camera and a plug socket
with the supplied power cord.

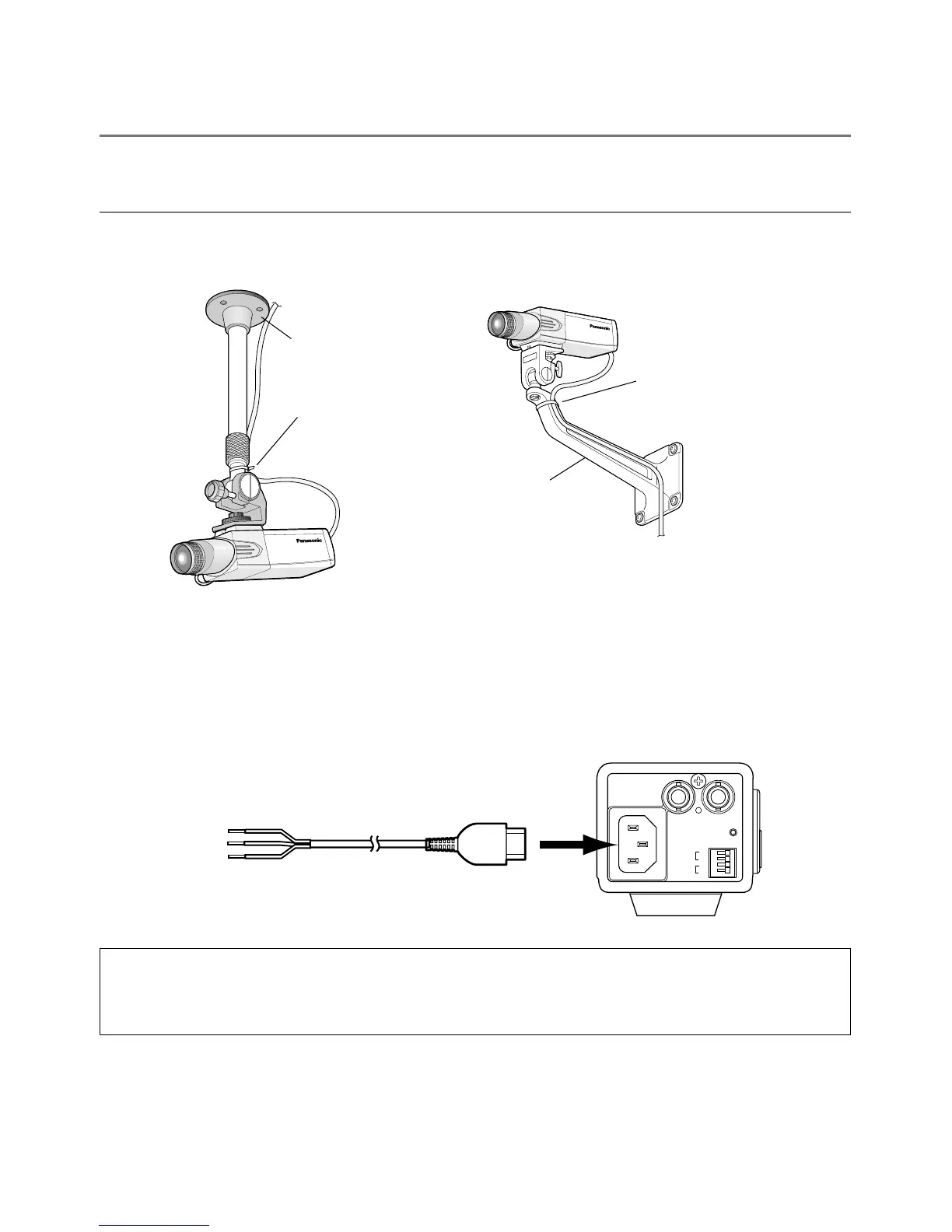

<Installation sample on a ceiling> <Installation sample on a wall>
Camera mounting base
(option)
Camera mounting
base (option)
The cable shall be tied to
the camera mounting
base.
The cable shall be tied to
the camera mounting
base.
120V ~ 50Hz
GEN-LOCK VIDEO OUT
POWER
ALARM
DAY/
NIGHT
GND
GND
IN
OUT
Power cord (accessory)
120 V AC,
60 Hz
Caution:
The camera shall be connected with cord set with plug.
Plug for respective country shall be mounted on the Power cord by a qualified electrical.
