Installations/Connections

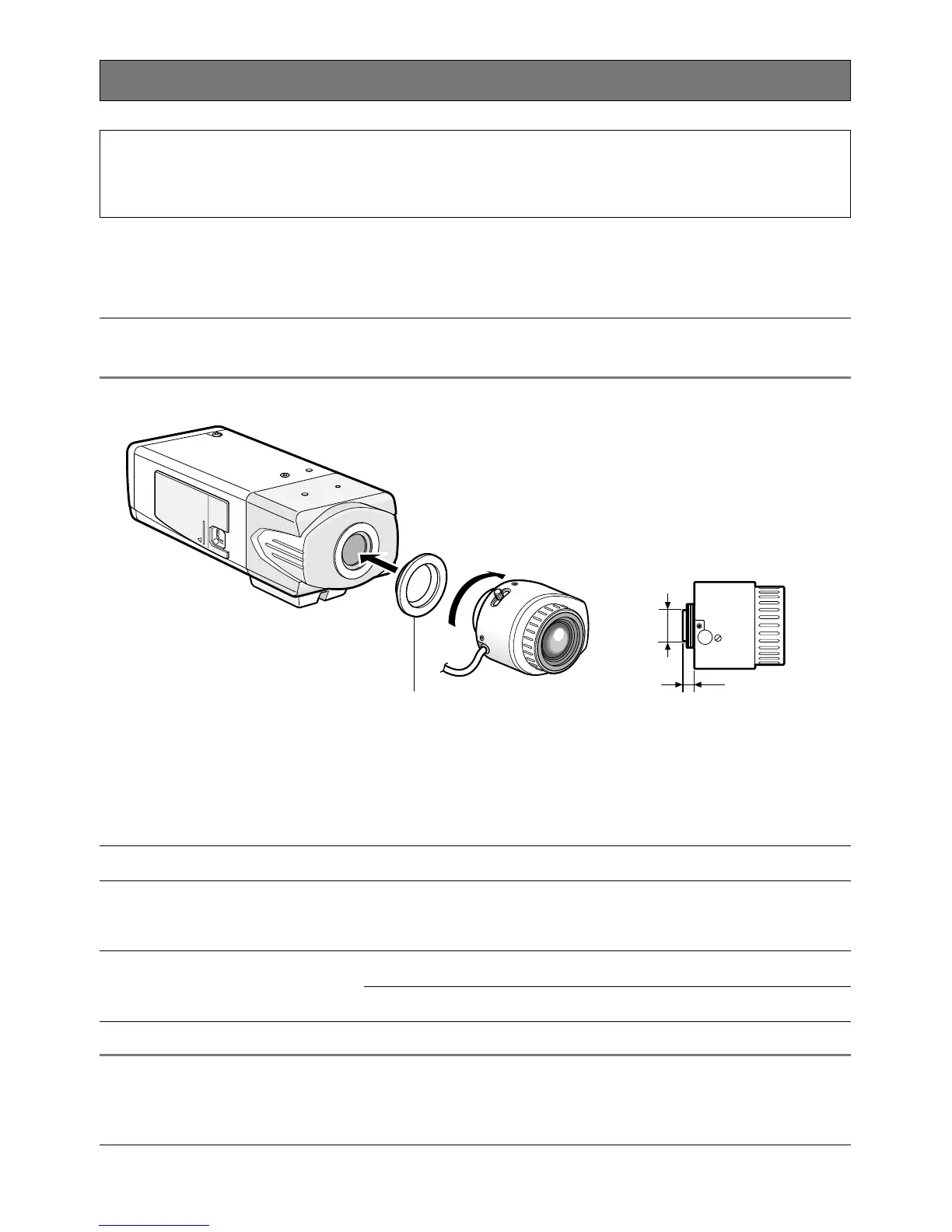

z Rotate the lens (option) clockwise slowly to mount the lens.
Important:
• For use of C-mount lens, use the C-mount adaptor (accessory).
Optional dedicated lens
C-mount adaptor (accessory)
* Required for use of C-mount lens
C mount: 4.5 mm {5/32"} or less
CS mount: 4.5 mm {5/32"} or less
ø20 mm {ø3/4"} or less
Lens type Model No.
1/2-inch type {1/2"} variable
focal lens
1/2-inch type {1/2"} zoom lenses
2 x varifocal
6 x Motorized
10 x Motorized
WV-LZ80/2
WV-LZ81/6A
WV-LZ81/10
Caution:
• ONLY CONNECT WV-CL934 TO 24 V AC OR 12 V DC CLASS 2 POWER SUPPLY.
• Be sure to connect the grounding lead to the GND terminal.
Note:
It is recommended to use a lens whose F number is F1.2 or greater.
When using a lens whose F number is smaller than F1.2, sharpness of image may be
diminished.
