Panasonic WV-CS850B

– 4-6 –

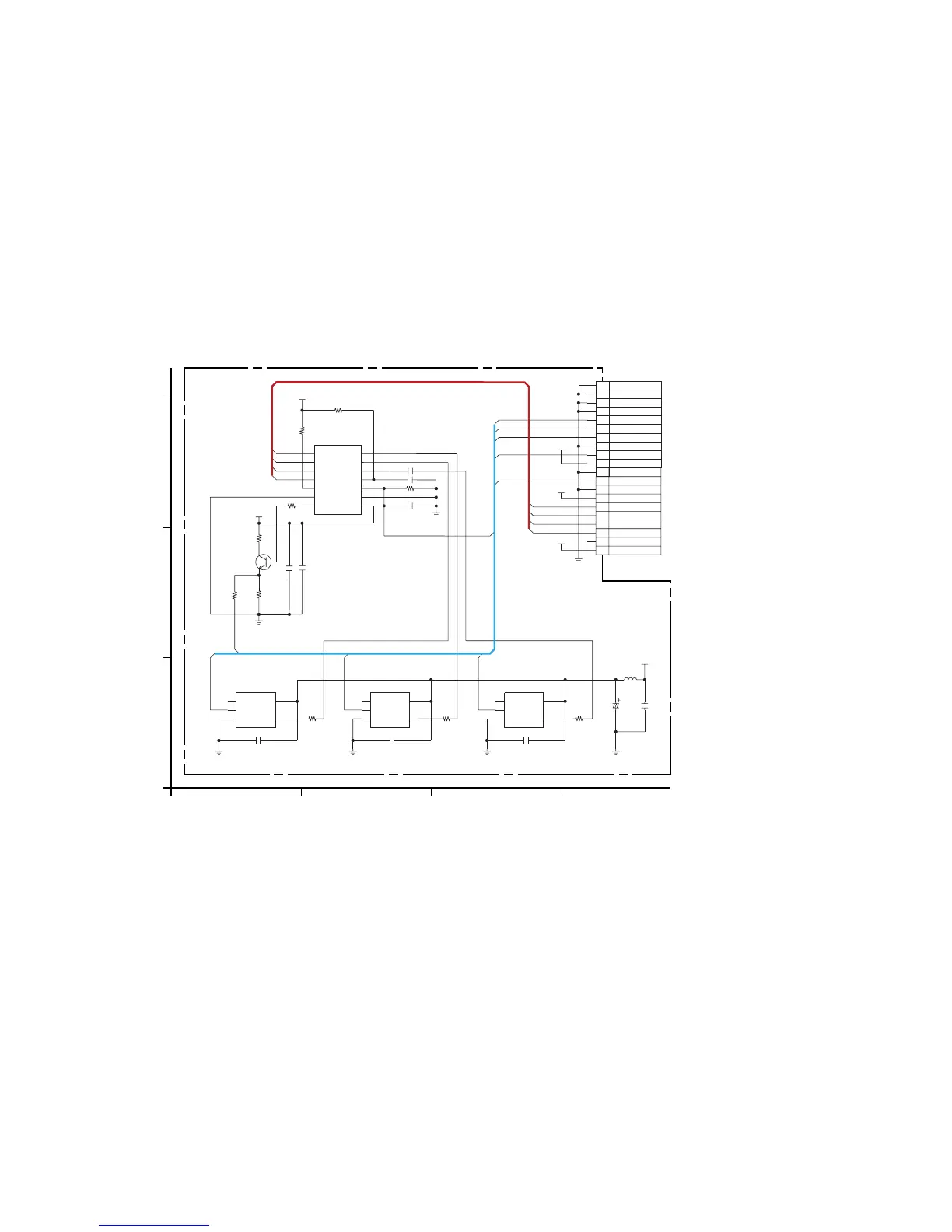

SCHEMATIC DIAGRAM OF SENSOR BOARD
CCDOUT
*H2 *H1
*R
+V[2]
+V[4]
+V[1]
+V[3]
SUB
+V[3]
+V[2]
+V[4]
+V[1]
*H1
*H2
*R
SUB
CCDOUT
GND GND GND
L500
100uH
GND
GND
15V
GND
5V/3.3V
-9V
C502 1uF
GND
5V/3.3V
-9V
15V
R506 10
R503 0
R502 10
R511
1M
R504 3.9k
R505
10
R510
10
C509 0.1uF
C504
0.1uF
Q500
R514
56
C505 OPEN
C510 4.7uF16(15)V
(CN500)
1 -9V
2 *V5
3 *V3
4 *V1
5 *V4
6 *V2
7 3.3V/5V
8 AGND
9 CCDOUT
10 AGND
11 15V
12 SUB
13 AGND
14 R
15 H2
16 H1
17 AGND
18 AGND
19 AGND
20 AGND
C501 0.01uF
C506 270pF
R507 0
R508 OPEN
IC502
1
Vfai1
2
Vfai3
3
Vfai2A
4
Vfai2B
5
VL
6
GND_1
7
VOUT
8
VDD
9
GND_2
10
faiSUB
11
CSUB
12
faiRG
13
Hfai1
14
Hfai2
C500
1uF
C503 1uF C507 1uF
IC500
1
NC
2
A
3
GND
4
Y
5
VCC
1
NC
2
A
3
GND
4
Y
5
VCC
1
NC
2
A
3
GND
4
Y
5
VCC
IC501 IC503
SENSOR BOARD
1 2 34
A
B
C
D
<INDEX>
SENSOR BOARD
IC500 A1
IC501 A2
IC502 C2
IC503 A3
Q500 B1
Note:
IC502 is not included
in Sensor Board Ass’y.
