Step 2. Aesthetic panel's dimensions and installation
2.
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Depending on where your electrical
outlet is, you may need to cut a hole in the
opposite cabinet side.
The aesthetic wooden panel could be processed according to the
installation drawings.
The aesthetic wooden panel could be processed according to the
installation drawings.

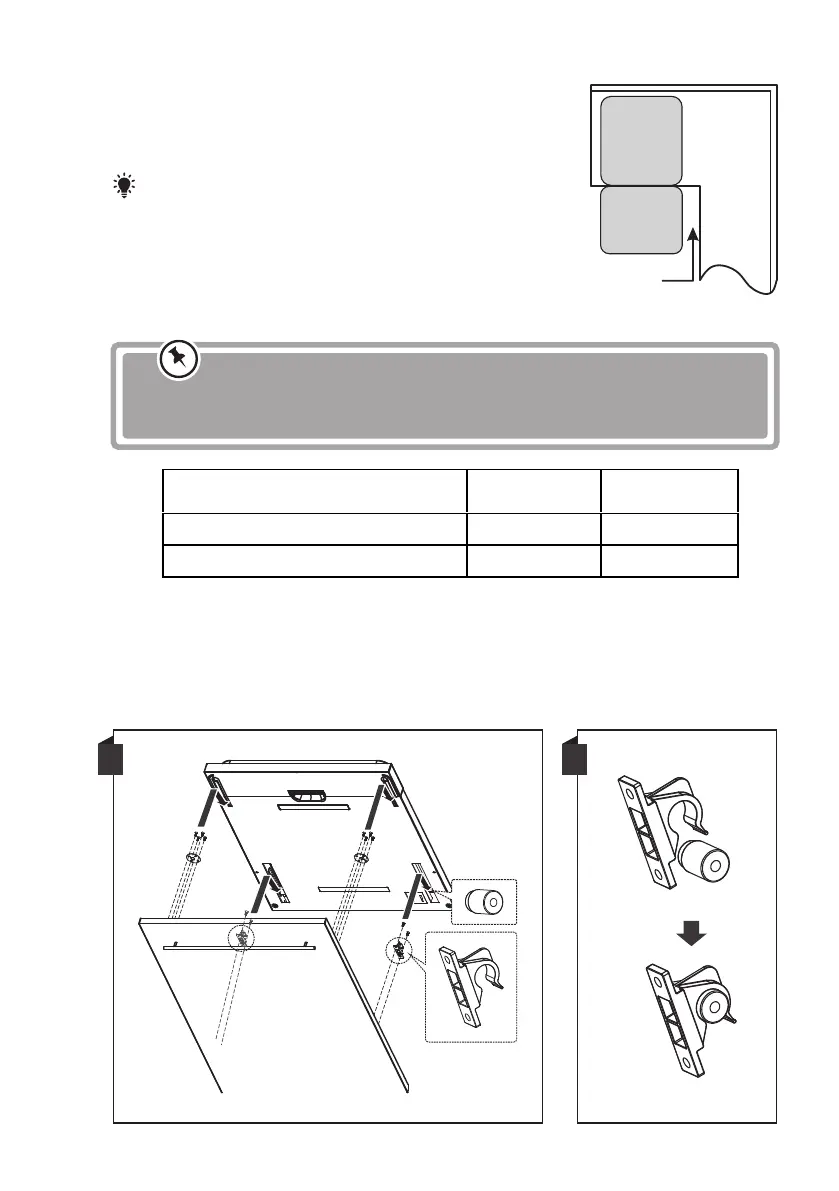

Install the hook on the aesthetic wooden panel (see figure 4A) and put the hook
into the slot of the outer door of dishwasher (see figure 4B). After positioning of
the panel , press top of the aesthetic wooden panel to make sure that the plastic
hook are fastened.
BA
Minimum
Maximum
60cm
4kg
10kg
45cm
4kg
8kg
V
i
i
Built-in model
Weight feature for decorative and
sliding door.
If dishwasher is at the corner of the cabinet, installed
50
