3.4. ASSEMBLY INSTRUCTIONS IN COLUMN / INTEGRATED
Only for models:
PVMAV 45-18
PVMAVP 45-18
PVMAV 60-25
PVMAVP 60-25
PVMAV 88-49
PVMAVP 88-49
PVMAV 124-70
PVMAVP 124-70
PVMAV 178-112
PVMAVP 178-112

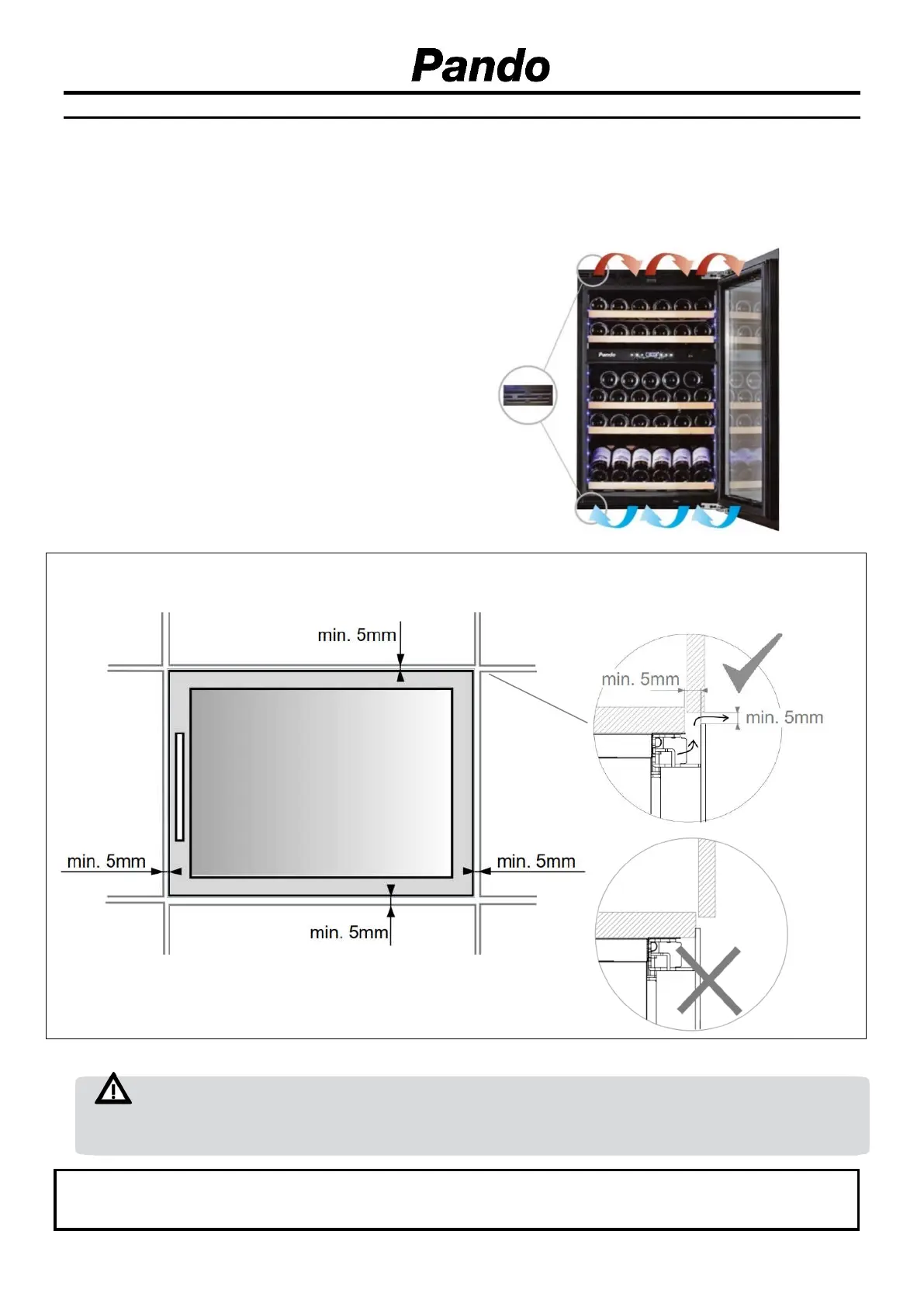

These models have incorporated an exclusive Pando
integrated ventilation system, see image.
They incorporate a ventilation system in the upper and lower
front, invisible with the door of the unit closed.
Do not cover or hinder the grids, keep them clean for free
air circulation.
They can be mounted in the niche of the furniture / column
directly, without the need for ventilation in the furniture.
FRONT VIEW SIDE VIEW
ATENTION
FOR INSTALLATION YOU CAN FIND A DETAILED DIAGRAM IN THE PAGES AT THE END OF THIS MAANUAL
NOTICE
Respect the minimum front ventilation perimeter and interior (5
mm), to avoid malfunctions or product
breakdowns that would NOT be covered by the warranty.
