B20733-02 Page 19 of 39 08-2022
7. Close the print head mechanism on both sides and make sure the latches are engaged securely.
8. Set media sensor type and calibrate the selected sensor.
Note:
Please calibrate the gap/black mark sensor when changing media.
2.7 Adjustment Knob
2.7.1 Print Head Pressure Adjustment Knob

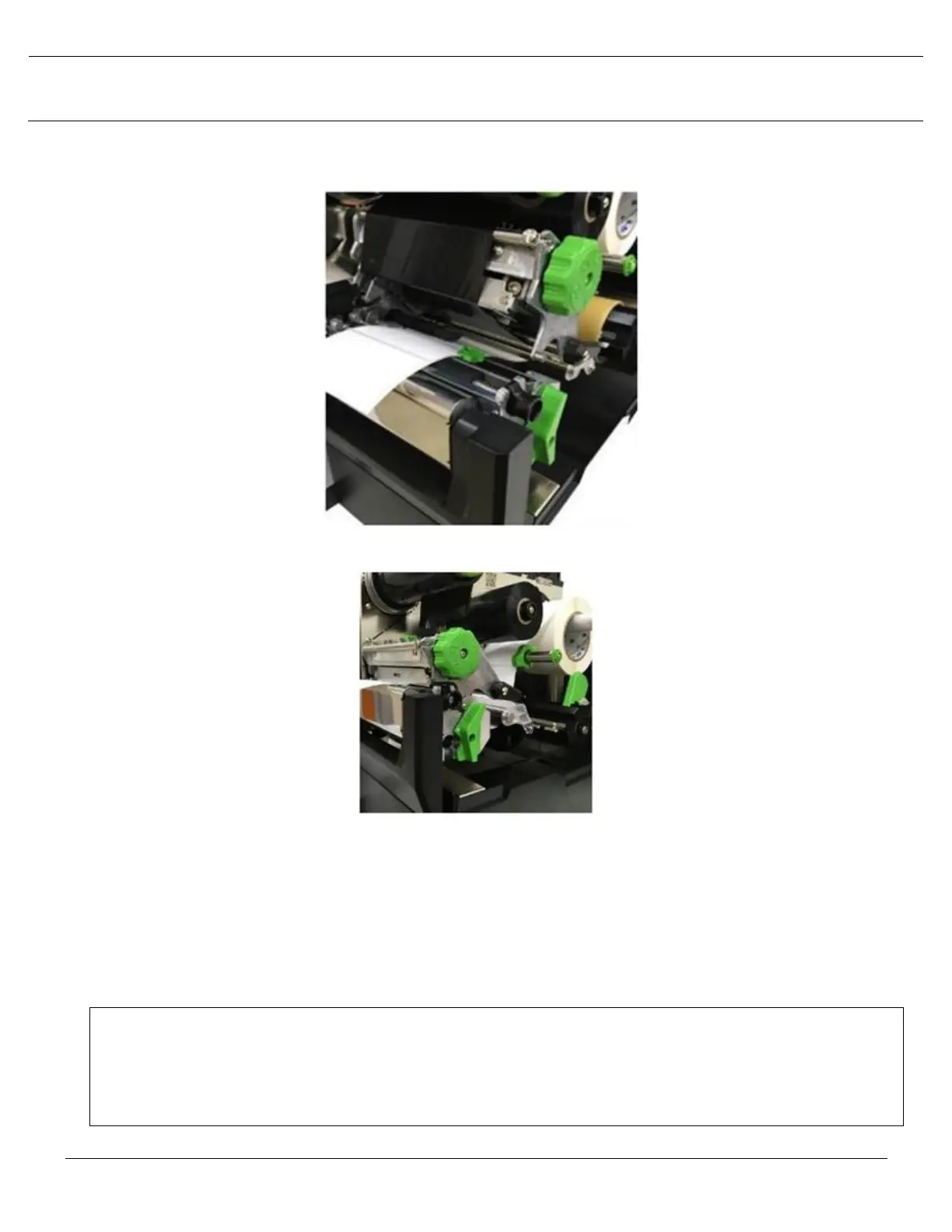

The print head pressure adjustment knob has 5 levels of adjustment. Because the printer’s paper alignment is to the
left side of mechanism, different media widths require different pressure to print correctly. Therefore, it may require
adjusting the pressure knob to get your best print quality. For example, if the label width is 4”, adjust both print head
pressure adjustment knobs to the same level. If the label is less than 2” wide, increase the left side print head pressure
by rotating the adjustment knob clockwise and decrease the right-side pressure by rotating the adjustment knob
counter-clockwise to level 1.
