Pantum M6503 Series

5
5
Paper Stop
6
Feeder Tray
7
Automatic Feeder Tray
8
Power switch
Note：
• The power switch of the printer is divided into two types: “touch type” and
“self-locking type”. The actual appearance of the purchased printer will prevail.
• The “touch type” power switch of the printer only has one mode, and can be reset by
short-pressing.
1) ON: short-press the power switch in the OFF state to turn on the power supply of
the printer.
2) OFF: long-pressure the power switch for about 3s in the ON state to turn off the
power supply of the printer.
• The “self-locking type” power switch of the printer has two modes: lock and
disconnect.
1) ON: short-press the power switch in the OFF state to turn on the power supply of
the printer.
2) OFF: short-press the power switch in the ON state to turn off the power supply of
the printer.

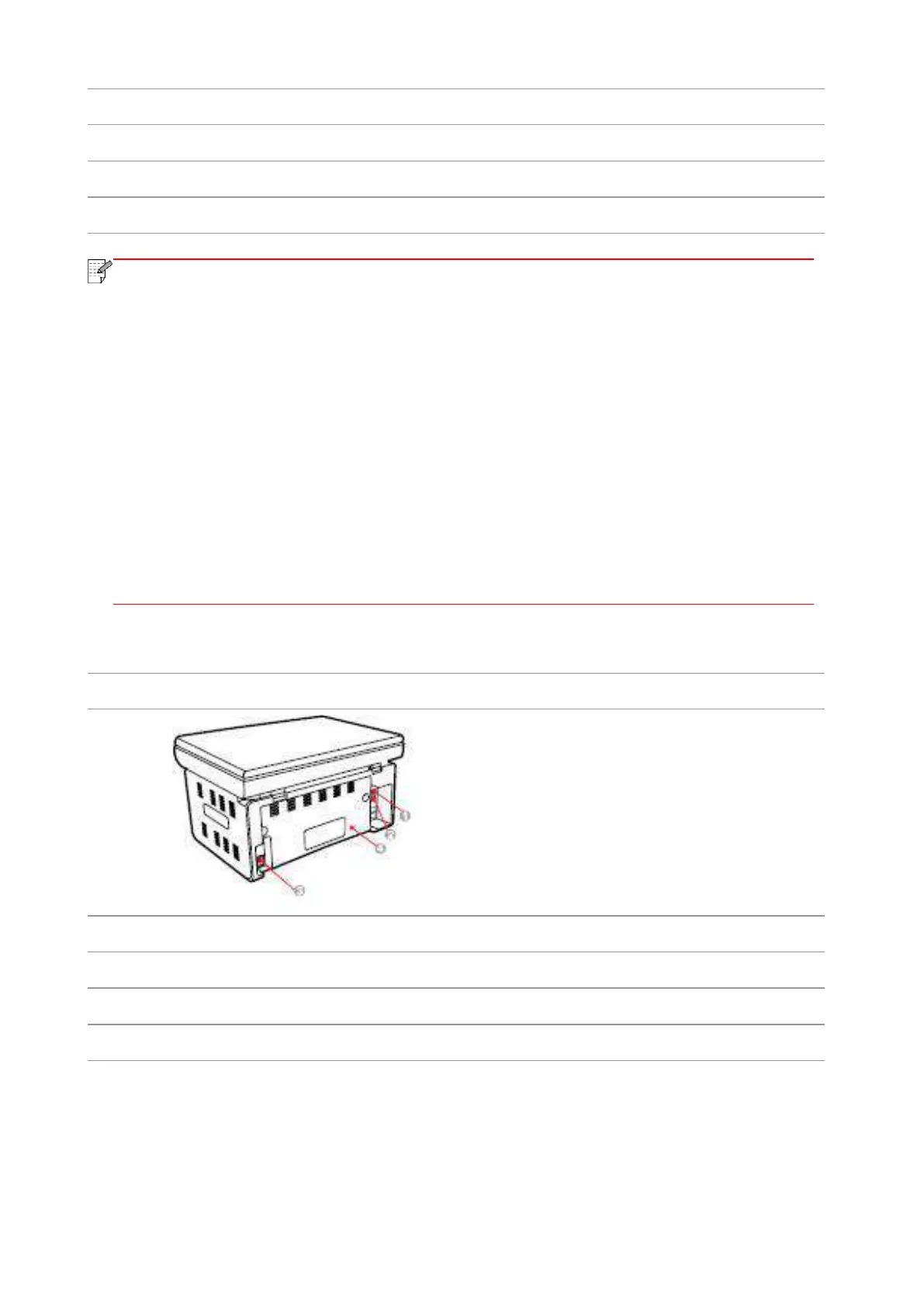

| Rear View
No.
M6200/M6500 Series
Diagram
1
USB Interface
2
Network Interface
3
Power Interface
4
Rear Cover
