PAPILLON MULTICUTTER 33N - Component List

cod.97845
" apillorr
WARNING: WHEN YOU BUY THE BRUSH CUTTER. THE PROTECTION OF THE BLADE IS
NOT ASSEMBLED. MAKE SURE YOU HAYE rT INSTALLED CORRECTLY, BEFORE YOU
START AND USE THE TRIMMER.
6
16
/
0 G@
0
I I I I
12 13 14 15

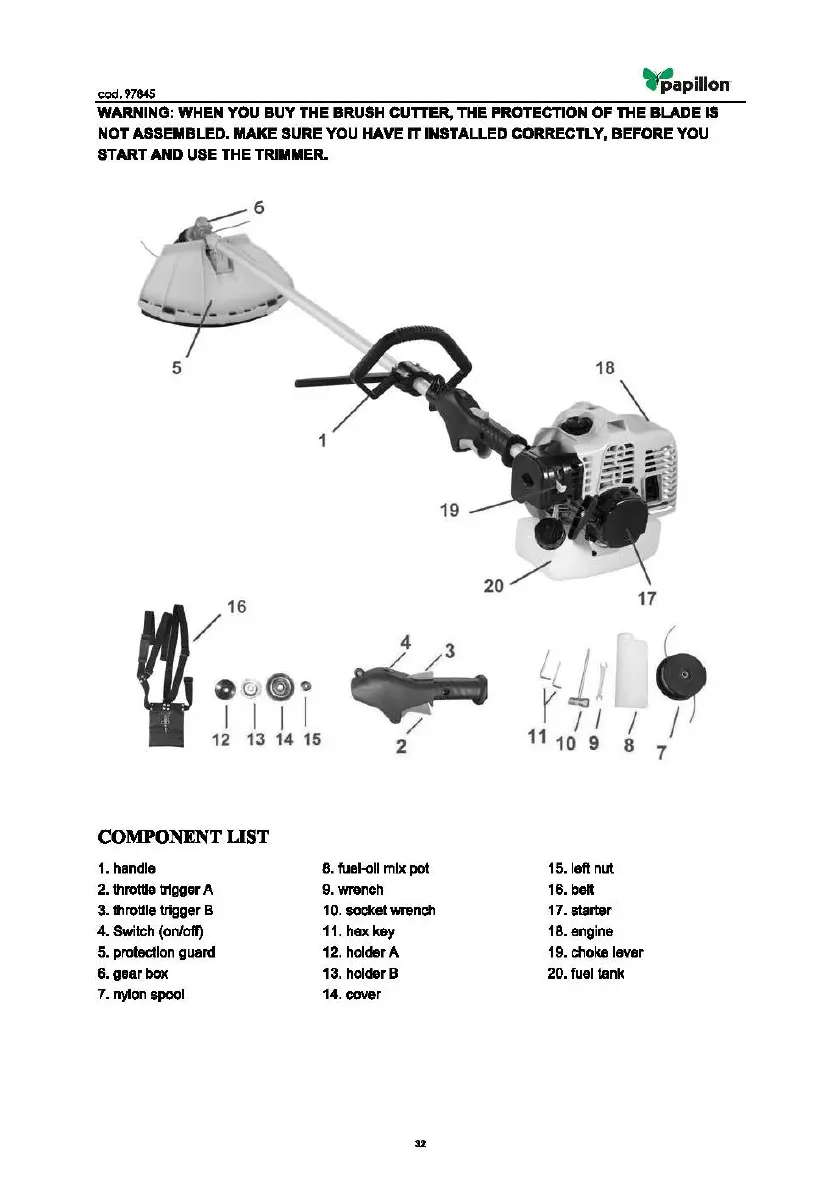

COMPONENT LIST
1. handle
2. throttle tr1gger A
3.
throttle trigger B
4.
Switch (onlofl)
5. protection guard
6. gear
box
7. nylon spool
8. fuel-oil mix pot 15. left nut
9.wrench
16.beft
10. socket wrench
17.
starter
11. hex key
18. engine
12.
holder A 19. choke lever
13. holderB 20. fuel tank
14. c;over
