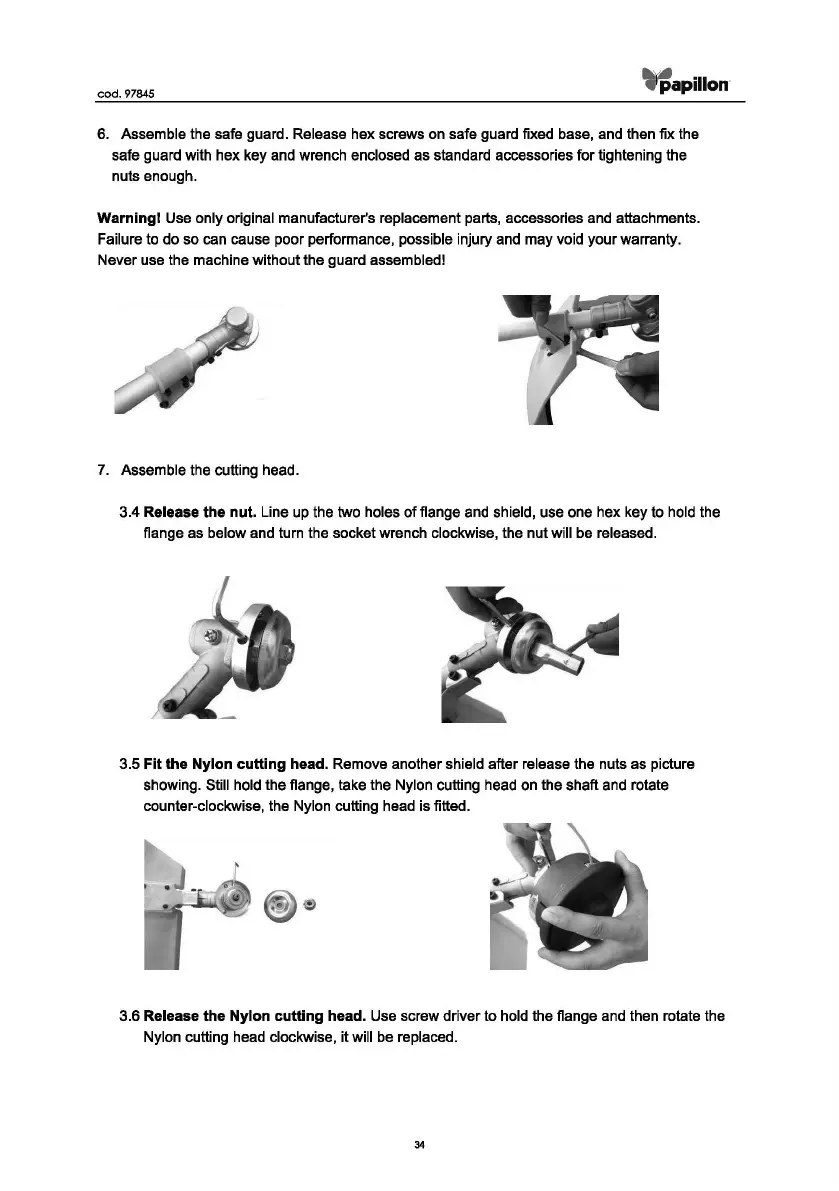

6. Assemble the safe guard. Release hex screws on safe guard fixed base, and then fix the
safe guard with hex key and wrench
enclosed
as
standard accessories
for
tightening the
nuts enough.
Warning!
Use only original manufacturer's replacement parts, accessories and attachments.
Failure to
do
so
can cause poor performance, possible injury and may void
your
warranty.
Never use the machine without the guard
assembled!
7. Assemble the cutting head.
3.4
Release the nut. Line up the two holes
of
flange and shield, use one hex key
to
hold the
flange
as
below and turn the socket wrench clockwise, the
nut
will be released.
3.5 Fit the Nylon cutting head. Remove another shield after release the nuts
as
showing.
Still hold the flange, take the Nylon cutting head on the shaft and rotate
counter-clockwise, the
Nylon cutting head
is
fitted.
3.6 Release the Nylon cutting head.
Use screw driver
to
hold the flange and then rotate the
Nylon cutting head clockwise, it will be replaced.
