USING
THE
MACHINE

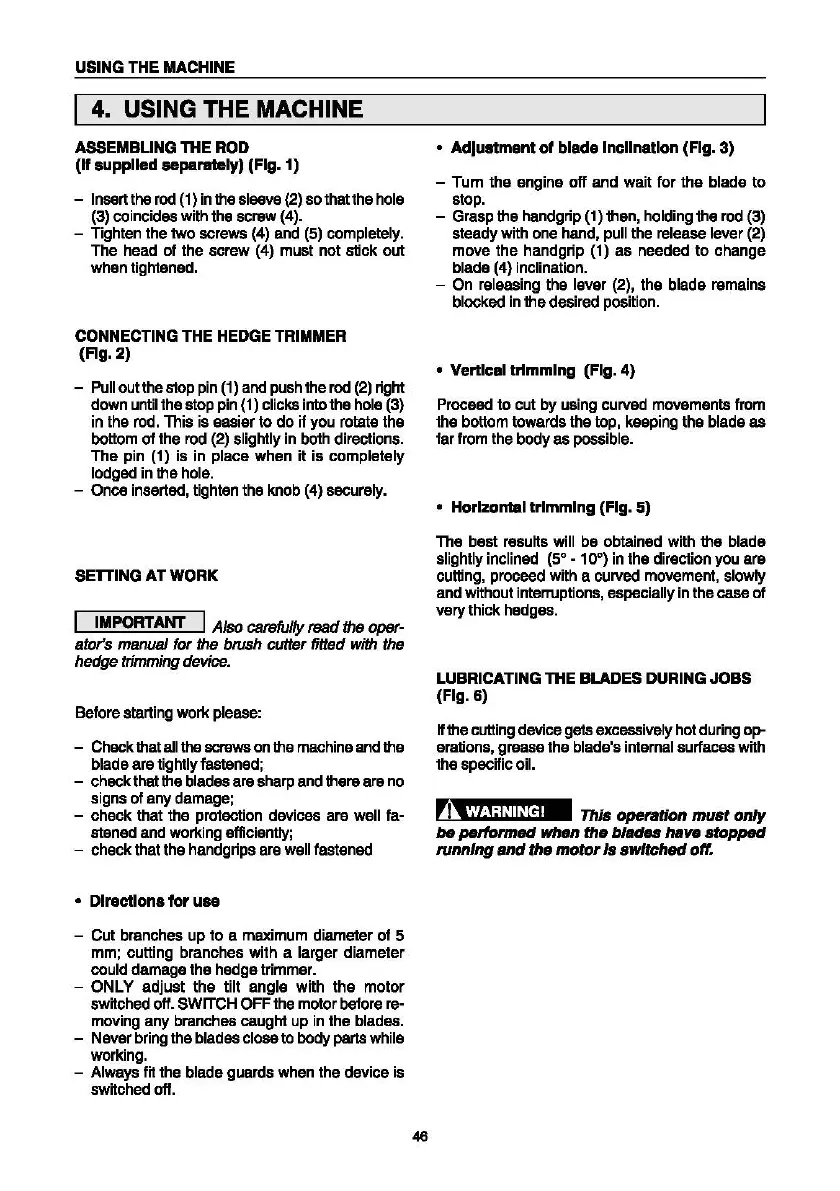

I 4. USING THE MACHINE
ASSEMBLING
TME
ROD
(If
supplled separately) (Fig. 1)
- Insert the rod (1) in the sleeve (2)
so
that the hole
(3) coincides with
the
screw (4).
- Tighten the
two
screws (4)
and
(5) completely.
The head
of
the
screw
(4)
must
not
stick
out
when tightened.
CONNECTING
THE
HEDGE
TRIMMER
(Fig.
2)
- Pull out
the
stop pin (1) and push
the
rod (2) right
down until
the
stop pin (1) clicks into
the
hole (3)
in
the
rod.
This
is
easier
to
do
if you rotate
the
bottom of the rod (2) slightly
in
both directions.
The
pin (1)
is
in
place
when
it
is
completely
lodged in
the
hole.
- Once inserted, tighten the knob (4) securely.
SETIING
AT
WORK
I
IMPORTANT
I Also carefully read the oper-
ator's manual for
the
brush cutter fitted
with
the
hedge trimming device.
Before starting
work
please:
- Check that all the screws on the machine and the
blade
are
tightly fastened;
- check that the blades are sharp
and
there
are
no
signs of any damage;
-
check
that
the
protection devices
are
well fa-
stened
and
working efficiently;
-
check
that
the
handgrips are well fastened
• Directions
tor
use
-
Cut
branches
up
to
a maximum diameter
of
5
mm; cutting branches with a larger
diameter
could damage
the
hedge
trimmer.
-
ONLY
adjust
the
tilt
angle
with
the
motor
switched off. SWITCH OFF
the
motor before re-
moving
any
branches caught
up
in the blades.
- Never bring
the
blades close to body parts while
working.
- Always fit
the
blade guards when the device is
switched off.
46
• Adjustment
of
blade lncllnatlon (Fig.
3)
-
Tum
the
engine off
and
wait for
the
blade
to
stop.
- Grasp the handgrip (1) then, holding the rod (3)
steady with
one
hand, pull the release lever (2)
move
the
handgrip (1)
as
needed
to
change
blade (4) inclination.
- On releasing the lever (2),
the
blade remains
blocked
in
the
desired position.
• Vertlcal trtmmlng (Fig. 4)
Proceed
to
cut
by
using curved movements from
the
bottom towards
the
top, keeping
the
blade as
tar
from the
body
as possible.
• Horlzontal
trimming
(Fig.
5)
The
best resuns will
be
obtained with
the
blade
slightly inclined (5° - 10°) in
the
direction you are
cutting, proceed with a curved movement, slowly
and without interruptions, especially
in
the
case of
very
thick hedges.
LUBRICATING
TME
BLADES
DURING
JOBS
(Fig.
6)
If the cutting device gets excessively hot during op-
erations, grease the blade's internal surfaces with
the
specific oil.
rl\W.!;!i!!@M
This operation
must
only
be
performed
When
the
blades
have stopped
running
and
the
motor
Is
switched off.
