ParaBody 821 - Page 7

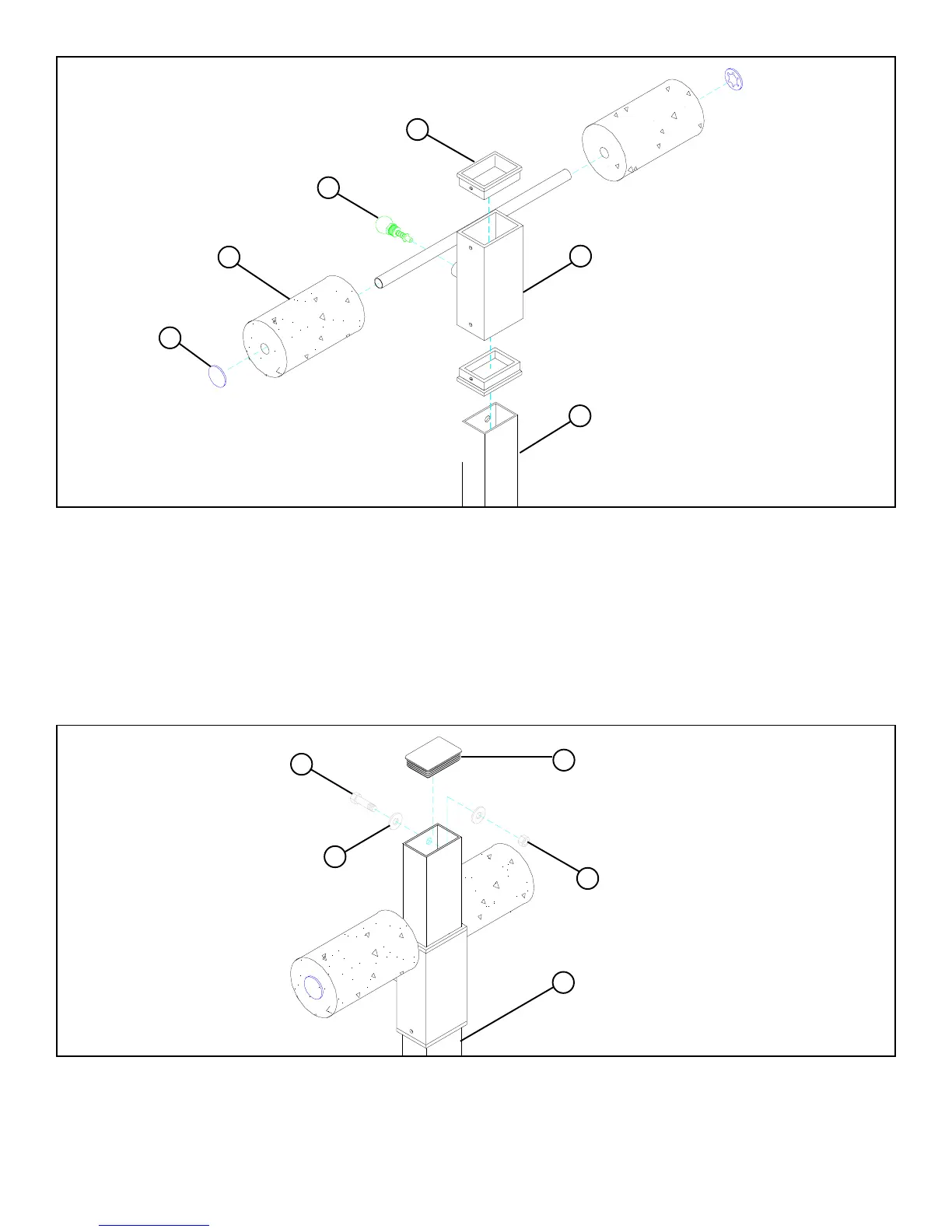

STEP 3:
• Insert two 3 X 2” INSERT GUIDES (21) into the end of each of the ROLLER PAD SUPPORT (1) as shown in
FIGURE 3.
FIGURE 3
• SECURELY assemble the SPRING PIN ASSEMBLY (22) to the ROLLER PAD SUPPORT (1). See FIGURE 3.
STEP 4:
• Insert one 3 X 2” END CAP (18) into the top of the REAR UPRIGHT (6) as shown in FIGURE 4.
FIGURE 4
• SECURELY assemble on 3/8 X 1” BOLT (9), two 3/8” WASHERS (14), and one 3/8” LOCK NUT (12) into the top
hole on the REAR UPRIGHT (6). See FIGURE 4.
7
• Pull back the SPRING PIN and CAREFULLY slide the ROLLER PAD SUPPORT (1) over the REAR UPRIGHT
(6). as shown in FIGURE 3.
• Slide the two ROLLER PADS (8) onto the ROLLER PAD SUPPORT (1) using two STARLOCK COLLARS (19)
as shown in FIGURE 3.
21
6
1
22
8
19
14
18
12
6
3/8 X 1” 9
