STEP 4:

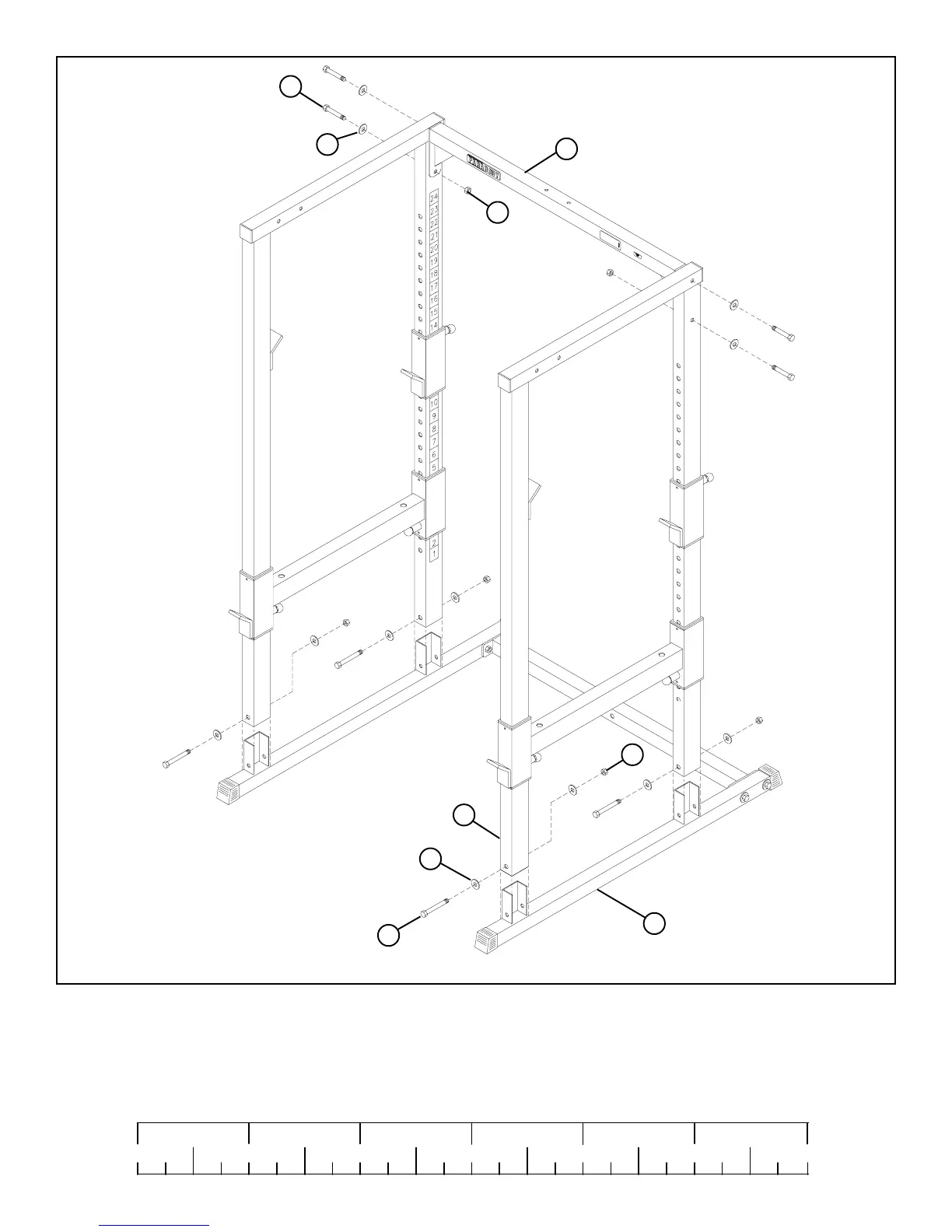

FIGURE 4
• LOOSELY assemble each UPRIGHT (1) to the UPRIGHT BASE (2) using four 1/2 X 4” BOLTS (9), eight 1/2” WASHERS (10),
and four 1/2” LOCK NUTS (11). See FIGURE 4.
• LOOSELY assemble the UPPER CONNECTOR (7) using four 1/2 X 3” BOLTS (8), four 1/2” WASHERS (10), and two 1/2”
LOCK NUTS (11). See FIGURE 4.
