ParaBody 893103 - Steps 4-5: Safety Rails and Carriage Components

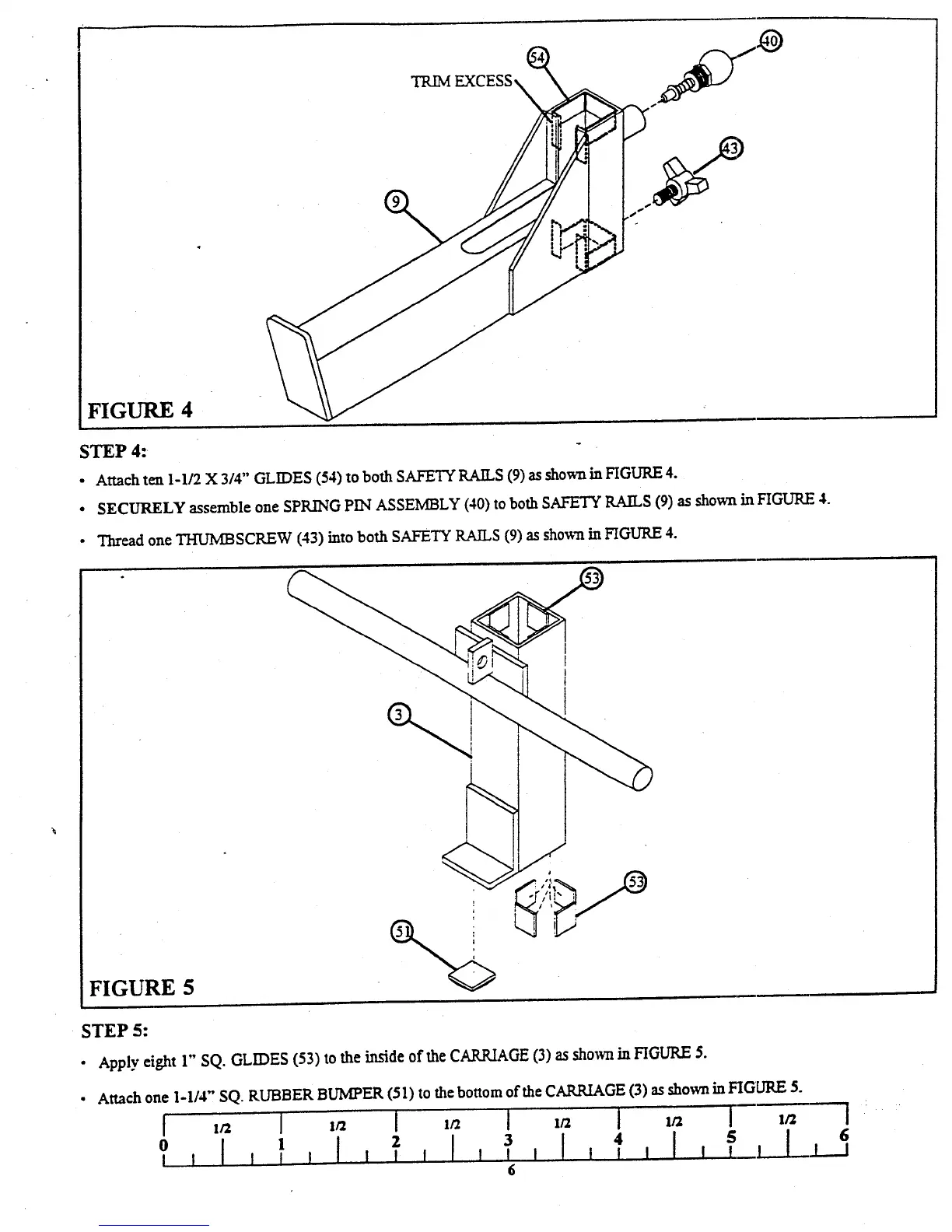

FIGURE 4
STEP 4:
¯ Attach ten 1-1/2 X 3/4" GLIDES (54) to both SAFETY RAILS (9) as shown in FIGURE
¯ SECURELY assemble one SPRING PIN ASSEMBLY (40) to both SAFETY RAILS (9) as shown in FIGURE
¯ Thread one TH’UMBSC1LEW (43) into both SAFETY RAILS (9) as shown in FIGURE
FIGURE 5
STEP 5:
¯ Apply eight 1" SQ. GLIDES (53) to the irtside of the CARRIAGE (3) as showrt in FIGURE 5.
¯ Attach one I-1/4", SQ. RUBBER BUMPER (51) to the bottom ofthe CAR.1UAGE (3) as shown in FIGtJR.E
