STEP 3:

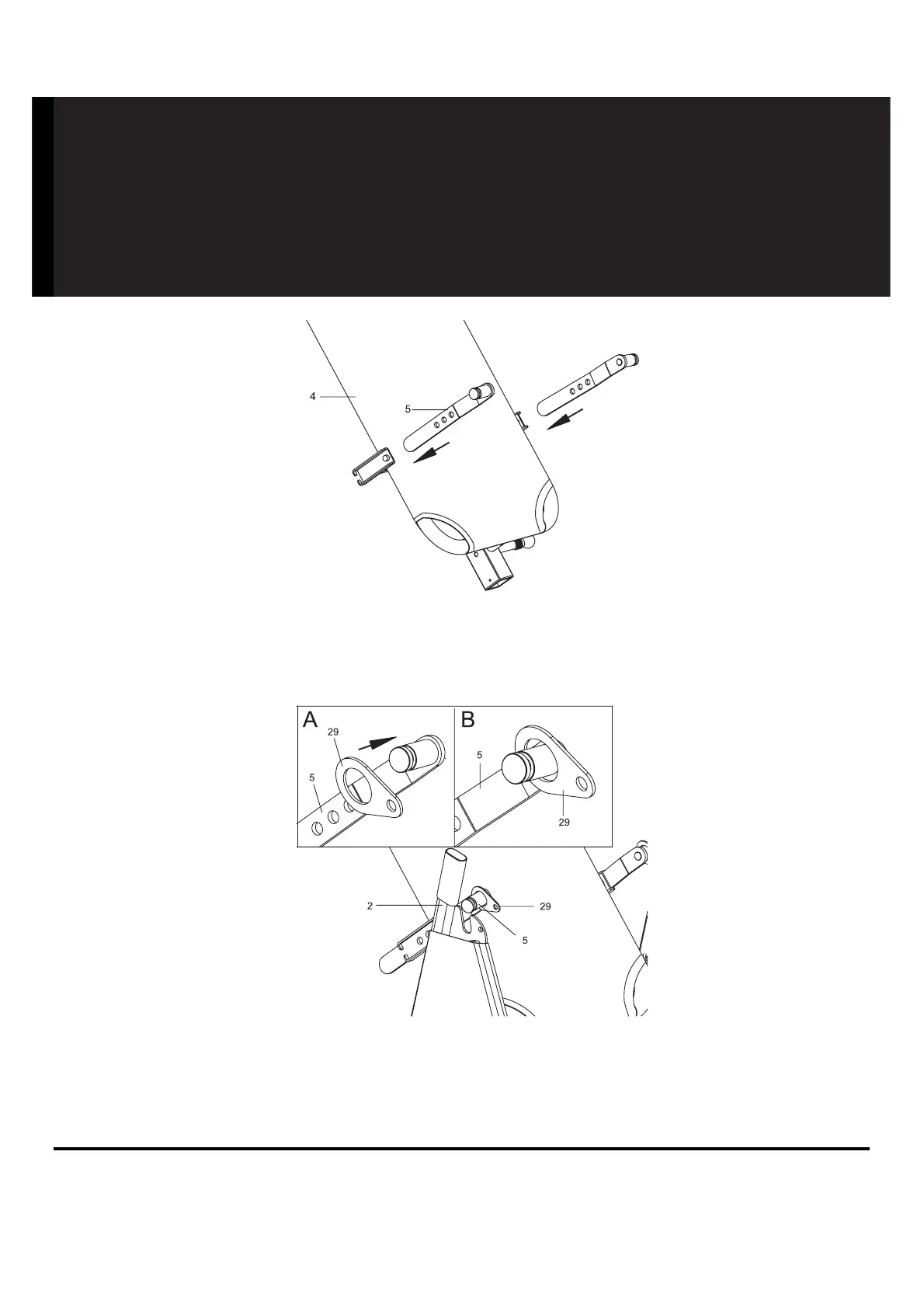

Slide the bottom of the Pivot Arms (5) into the brackets that located at each side of the Bed Frame
(4), align to the desired hole on the arm with the peg on the bracket. Insert the peg into the hole
to lock the Pivot Arms (5) in place. It is recommended that you use the bottom hole on the Pivot
Arms (5) until you become more familiar with the equipment.
STEP 4:
Install the Pivot Arm Reinforcement Plates (29) onto the Pivot Arms (5). Mount the Bed Frame (4)
to the Rear U-Frame (2) by inserting the ends of the Pivot Arms (5) into the channels on the plates.
The slotted portion of the rollers on the end of the Pivot Arms (5) should be inserted into the
channels on the plates.
