EVOHD User Manual 23

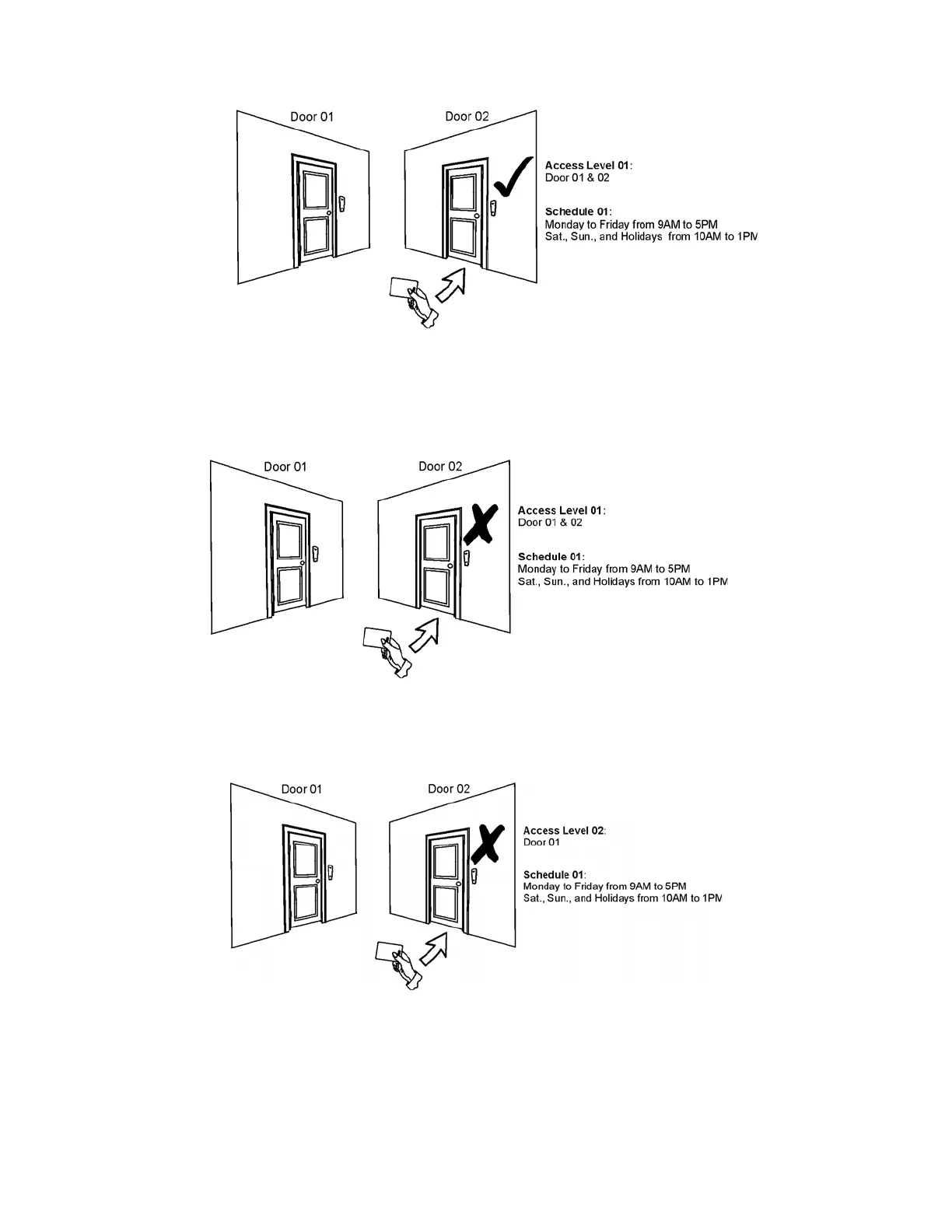

Figure 3 – Example A
Bonnie’s Access Control card is programmed with Access Level 01 and Schedule 01. If she presents her card to
the reader or the EVO641R / DGP2-641RB keypad on Door 02 on Tuesday, August 3 at 3:00 p.m., she will gain
access to the room.
Figure 4 – Example B
If Bonnie presents her card to the reader or the EVO641R / DGP2-641RB keypad on Door 02 on Saturday or on a
Holiday at 3:00 p.m., she will be denied access.
Figure 5 – Example C
If we change Bonnie’s Access Level to 02 and she presents her card to the reader or the EVO641R / DGP2-641RB
keypad on Door 02 on Tuesday, August 3 at 3:00 p.m., she will be denied access.
