IPR512-EQ03 09/2009 Page 7 PARADOX.COM
Step 13: What’s Next
This completes the basic installation and set up required to get the receiver up and running. For more detailed instructions, refer
to the IPR512 GPRS/IP Monitoring Receiver Operations Manual.
The next step is to register Paradox reporting modules to the receiver. No monitoring station operator action is required to register
a module. Registration is initiated by the installer upon installation of the module. However, the monitoring station must provide
the installer with the following information that is entered by the installer.
• IP Account # for each partition of the site.
• IP Address and Port of the receiver(s) you wish that site to report to. Refer to item #2 in Step 10: Configure the Receiver on
page 4.
• Receiver Password (1 to 32 digits). Refer to item #8 in Step 10: Configure the Receiver on page 4.
• Security Profile (2 digits). Refer to Step 12: Set Security Profile on page 6.
Once the installer has entered this information, the installer then initiates communication with the receiver and the Paradox
reporting module will be automatically registered in the receiver, refer to Installer Instructions on page 8 for more information.
--------------------------------- This completes installation and setup of the IPR512 ---------------------------------

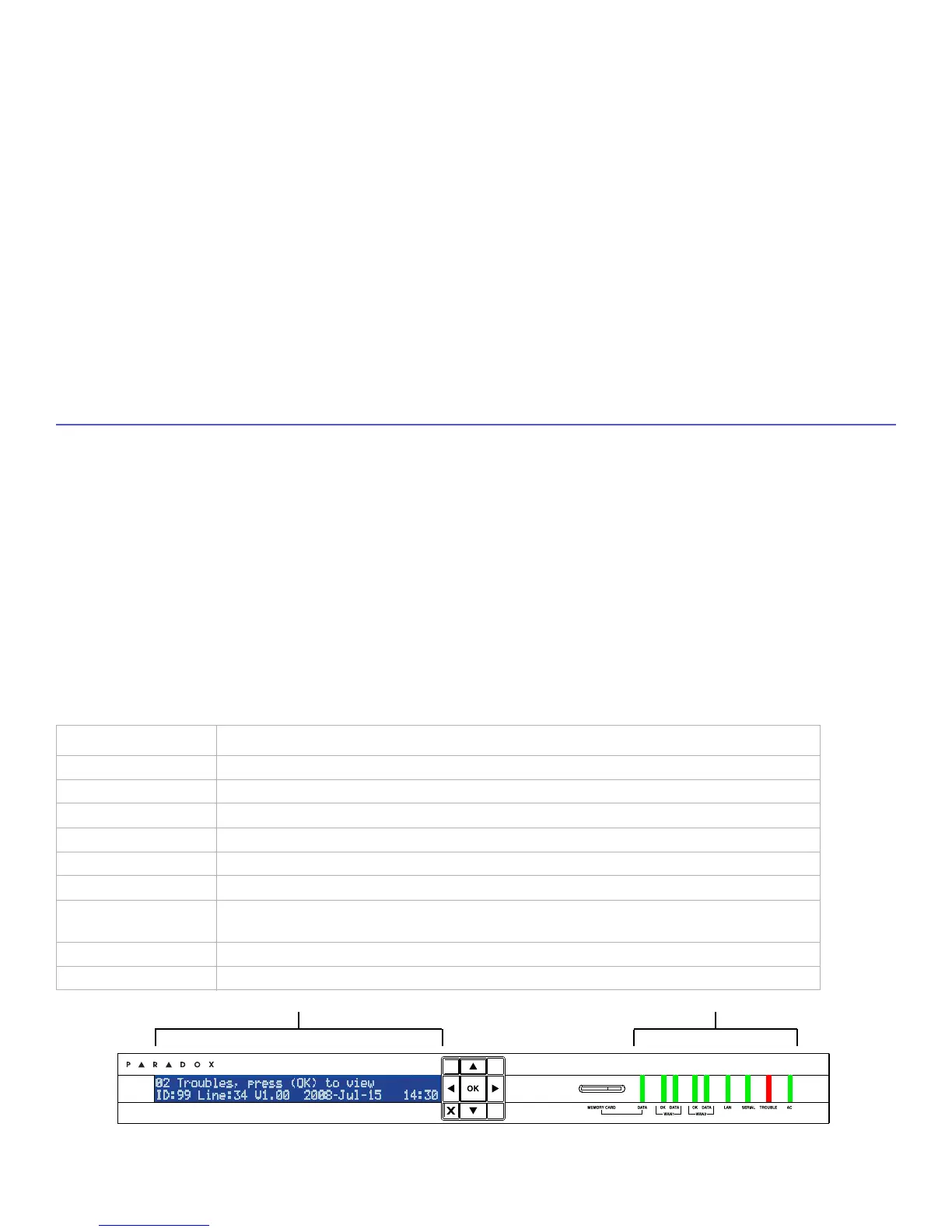

Trouble and LED Display
Trouble Display
If a trouble occurs on the receiver, the TROUBLE LED will turn on and the screen will display “XX Troubles, click [OK] to
view”. Press OK to access the trouble menu, which will display one or more of the following troubles.
• LAN network connection failure
• WAN1 network connection failure
• WAN1 Internet connection failure
• WAN2 network connection failure
• WAN2 Internet connection failure
• Memory card not detected
• Memory card init failed
• Time server unreachable
LED Display
The Status LEDs on the front of the receiver provide the following information:
LED On Status
DATA (memory card) Accessing (reading/writing) the memory card (back up).
WAN1 OK Network connection is detected on WAN1 port.
WAN1 DATA Sending or receiving data through WAN1 port.
WAN2 OK Network connection is detected on WAN2 port.
WAN2 DATA Sending or receiving data through WAN2 port.
LAN Network connection is detected on the LAN port.
SERIAL Connected with the automation software on COM1 (ACK/NACK must be enabled, refer to
item# 5 in Step 10: Configure the Receiver on page 4.
TROUBLE Trouble with the unit is detected. Troubles can be viewed through the LCD.
AC The IPR512 is powered.
IP Monitoring Receiver
IPR512
Trouble Display LED Display
