1. General Description
The Matrix2000 advanced analog re alarm control panels have been designed to
provide full re detection coverage to buildings or installations that require re detection
systems of 4 to 24 zones.
There are six (6) basic models for the Matrix2000 panel:
Model Zones Common Relays
M2004 4 2
M2008 8 2
M2012 12 2
M2016 16 2
M2020 20 2
M2024 24 2
Table 1. Matrix2000 panel models
Operating Voltage 220-240 VAC / 50-60Hz or 110-120 VAC / 50-60Hz.
Matrix2000 panel has the following optional components:
- Expansion Zone Board
- Expansion Relay Board
- Remote Zone Annunciator
The analytic indications and the simple controls of the Matrix2000 panel ensure the
easy handling and controlling of the system by the operator.
2. Keyboard Indications and Controls
Operating, monitoring and programming of the panel is performed in three different ac-
cess levels. Access to level 2 is achieved by the keyswitch on the face of the panel
(Figure 1). Operations at access level 2 are performed with the silicon rubber keypad.
Access level 3 operations are accomplished with the microswitches on the main circuit
board of the panel.

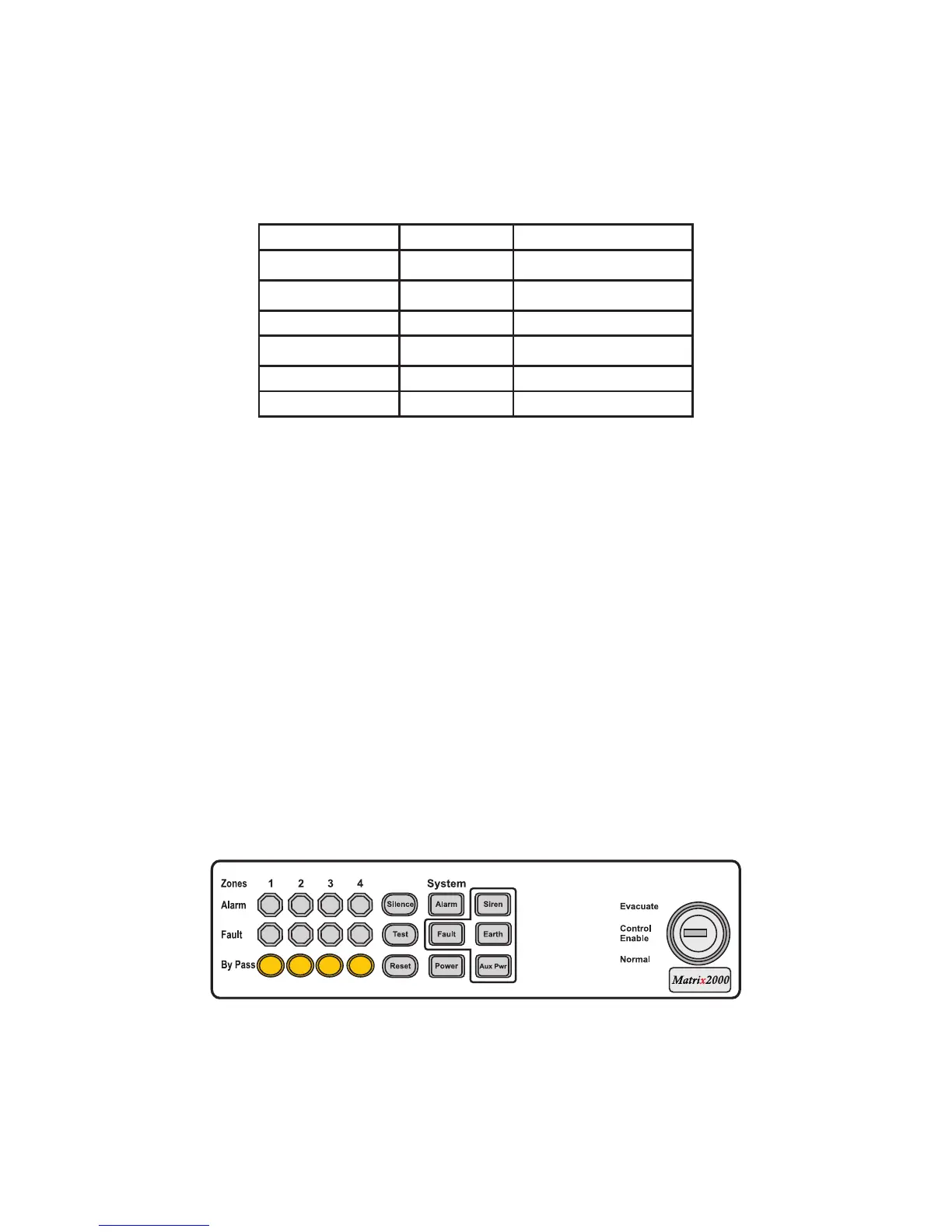

Figure 1. Matrix2000 keyboard
2.1 POWER Indication
The POWER indication is permanently ON if the main power is present and batteries are
healthy. This condition signies normal system operation.
POWER indicator OFF signies a total power failure of the system. This can be due to a
