Magellan & Spectra SP • Programming Guide

Hardware Connections

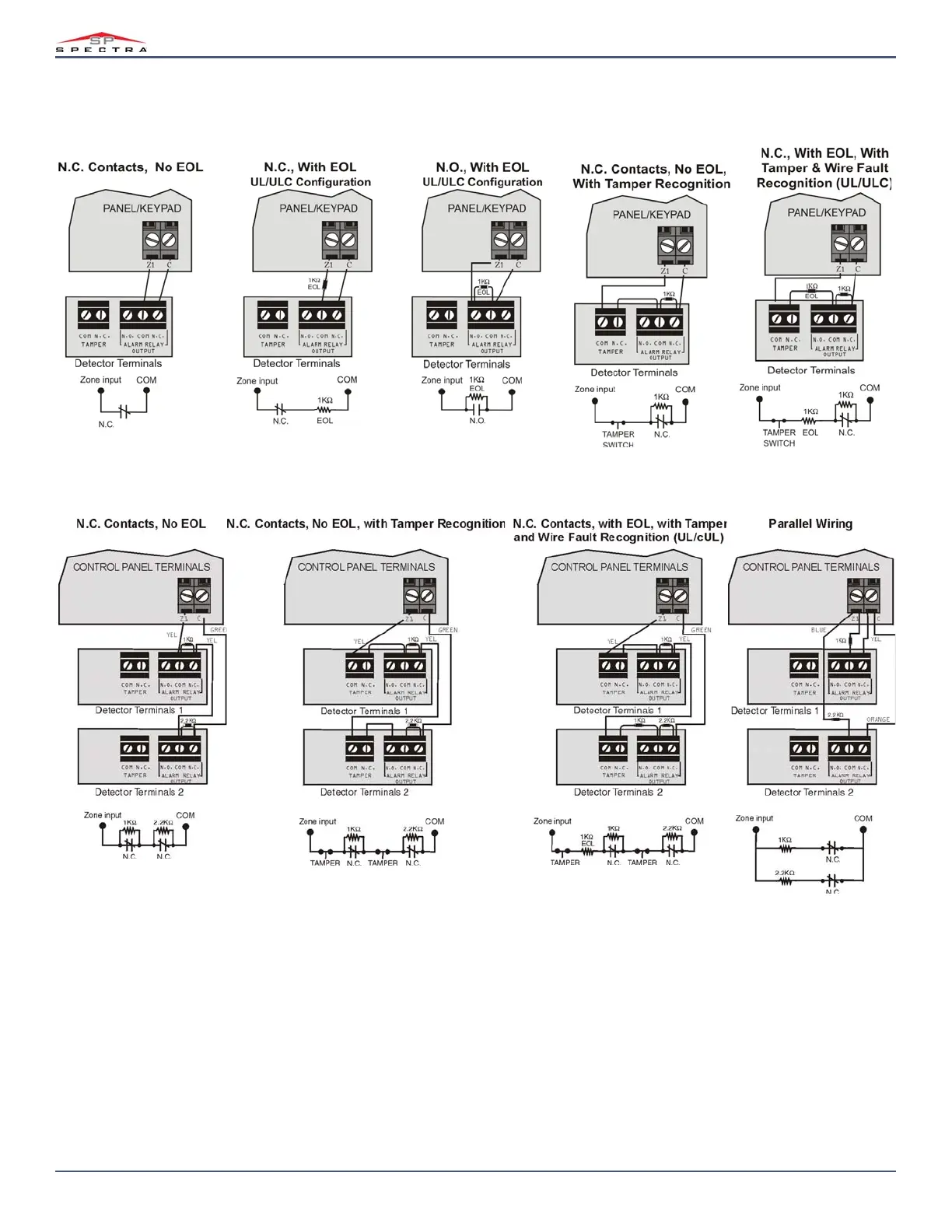

Single Zone Inputs

NOTE: Keyswitches are connected as standard zones and will follow ATZ options 1 and 2, programmed in section [705] (see page 38).

Advanced Technology Zone (ATZ) Connections

Table of Contents5
Installer Quick Menu7
Communicator8
Cancel Communication8
Keypad Programming8
Pgms8
Bus Module Planning9
Wireless Keypad Planning10
Wireless Siren Planning10
Programmable Output (PGM) Planning11
Wireless Repeater Planning11
Zone Planning11
Zone Recognition13
MG Series13
SP Series14
Zone Definitions16
Custom Zone Definitions18
Zone Timers18
MG Series18
SP Series18
Wireless Zone Assignment19
Wireless Transmitter Signal Strength19
Zone Report Codes and Labels19
Zone Report Codes19
Zone Labels20
Programmable Output Programming20
Programmable Output Recognition20
Description of MG/SP Events21
PGM Activation/Deactivation Events27
PGM Options28
PGM Delays29
PGM Serial Numbers29
Wireless PGM Signal Strength29
PGM Labels29
User Programming30
System Codes30
User Code Options30
User Report Codes31
User Labels31
Wireless Repeater Programming (RPT1)31
Wireless Repeater Assignment31
Wireless Repeater Signal Strength32
Wireless Repeater Options32
Wireless Repeater Labels33
Wireless Keypad Programming33
Automatic Wireless Keypad Assignment33
Compatibility Check (K37 Only)33
Standard Wireless Keypad Assignment33
Wireless Keypad, Repeater, and Siren Options33
Wireless Keypad Signal Strength34
Wireless Keypad Labels34
Remote Control Programming34
Remote Control Button Assignment34
User Assignment for Remote Controls36
Wireless Siren Programming36
Wireless Siren Assignment36
Wireless Siren Signal Strength36
Wireless Siren Labels36
Cancelling the Tamper Supervision for Wireless Sirens37
Description of Sections [700] to [704]37
Zone Options38
ATZ Options38
General Zone Options38
Miscellaneous System Options39
System Timers39
Keypad Lockout39
Programming the Daylight Savings Feature39
Country Codes40
Customized Daylight Savings Features40
Partition Programming40
Partition Options40
Partition Timers41
Partition Labels41
SMS and Bus Module Programming41
SMS Site Name41
Bus Module Labels41
Communication Programming42
Dialer Options42
Event Call Direction Options43
GSM Options43
IP/GPRS Options43
Report Codes and Partition Accounts44
Landline and GSM Communication44
Timers44
VDMP3 Options44
Test Report and Report Delays45
GSM Settings45
System and Communication Report Codes45
Entering Report Codes45
Special Arming and Disarming Report Codes45
Special Alarm Report Codes45
System Trouble Report Codes46
System Trouble Restore Codes46
System Special Report Codes46
Installer Function Keys46
Contact ID Report Codes47
Automatic Report Codes49
Communication Report Codes51
Communication Restore Report Codes51
Software Options and Additional Timers51
Additional Communication Timers51
Babyware Options52
IP and Software Configurations52
IP Account Numbers52
Software and PCS Connection Settings52
IP Receiver Configurations52
Usability Sections53
Description of Sections [950], [955], and [960]53
Description of Section [965]53
Description of Sections [966] and [967]54
Description of Sections [970], [975], and [980]54
Label Programming with LCD Keypads54
Function Keys54
Catalogues of Special Characters55
Keypad Letter Assignments56
Trouble Display56
Hardware Connections58
Single Zone Inputs58
Advanced Technology Zone (ATZ) Connections58
Connecting Fire Circuits59
Alarm Relay and PGM Connections59
AC Power & Backup Battery Connections59
Demonstration or Emergency System Power-Up Without an AC Source59
PCB Layouts/Wiring Diagrams60
Mg500060
Mg5050/Mg5050E61
Mg507562
