Magellan & Spectra SP • Programming Guide

Version 4.7/4.92/5.12

Hardware Connections | 59

Hardware Connections

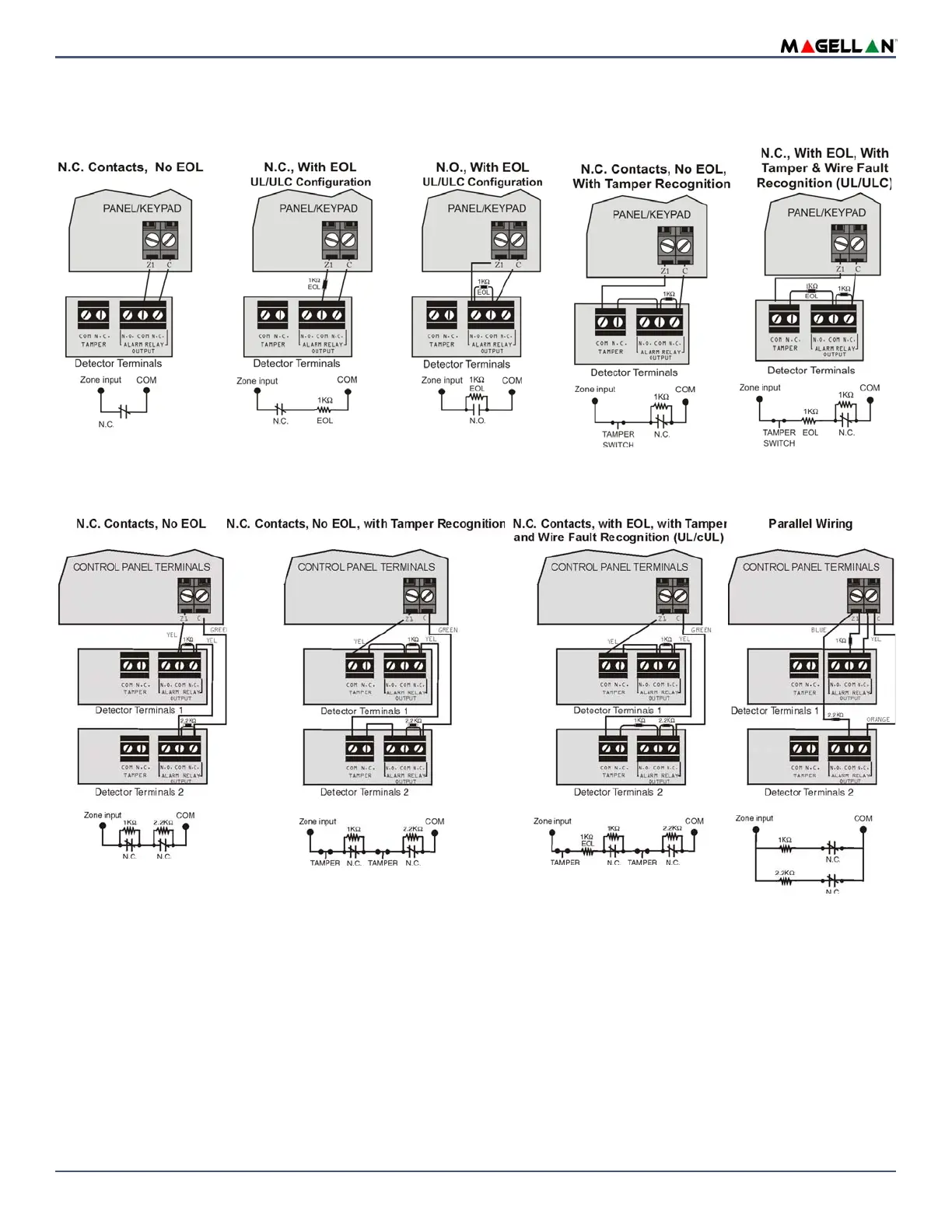

Single Zone Inputs

NOTE: Keyswitches are connected as standard zones and will follow ATZ options 1 and 2, programmed in section [705] (see page 37).

Advanced Technology Zone (ATZ) Connections
