DOC-0017-04-EN: AC20 Series - Hardware Installation Manual
DOC-0017-04-EN-A 22.03.2023 105 (154)

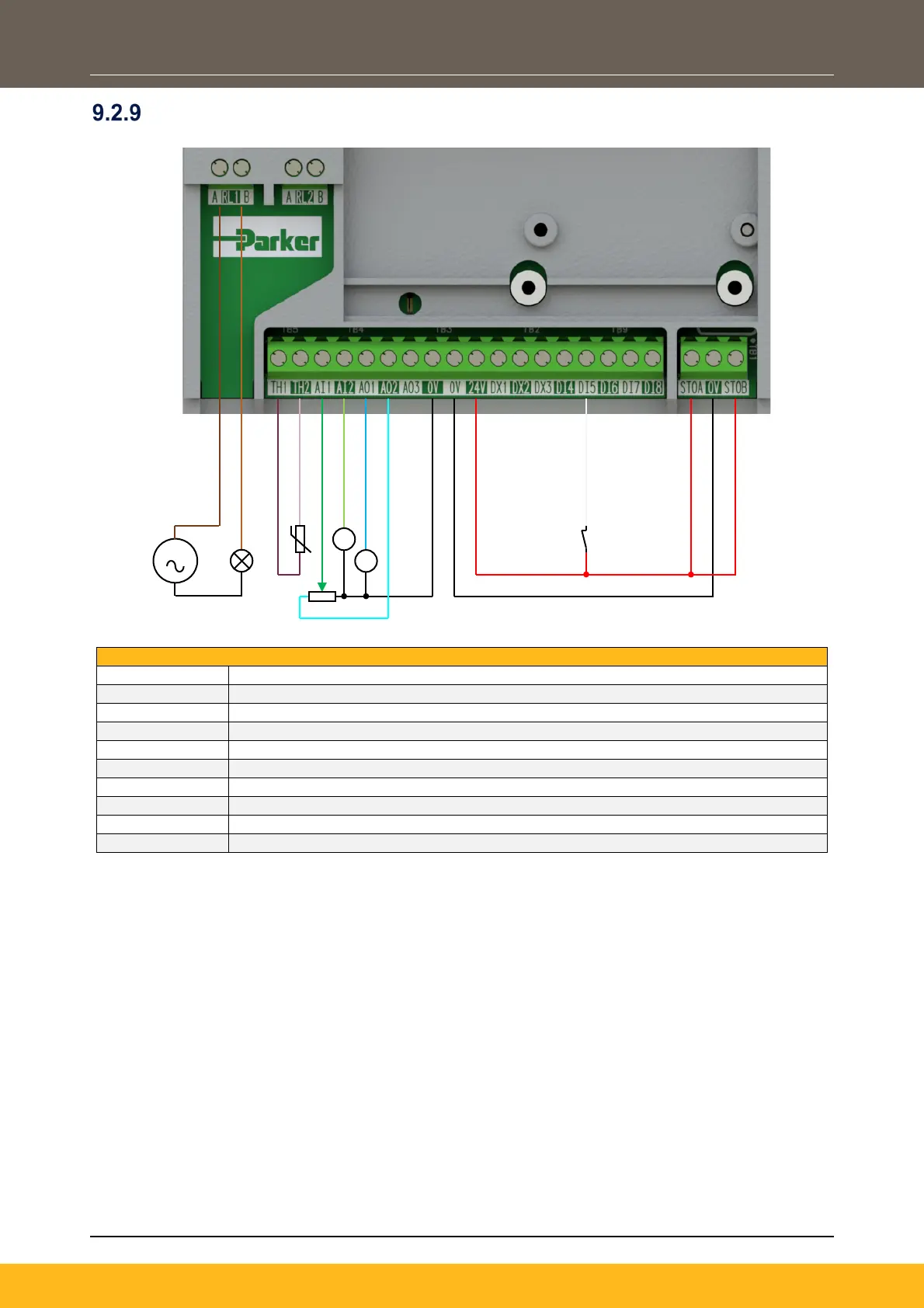

Application ‘6’: Aux Comms
110-230Vac (or 24Vdc) voltage supply
Healthy: Relay output (to lamp)
Motor Thermistor ‘+’ connection
Motor Thermistor ‘-’ connection
Remote Setpoint (%) – input 1: 0-10V variable input (from potentiometer)
Remote Setpoint ‘Trim’ (%) – input 2: 4-20mA variable input (from current source)
Speed Demand (%): 0-10V variable output (to voltmeter)
Value = 100%: 0-10V variable output (+10V fixed reference voltage)
Not Coast Stop: 24V digital input
STO DISABLED (drive operational)
S
