TWP/TWB200 – TWP/TWB9000
31

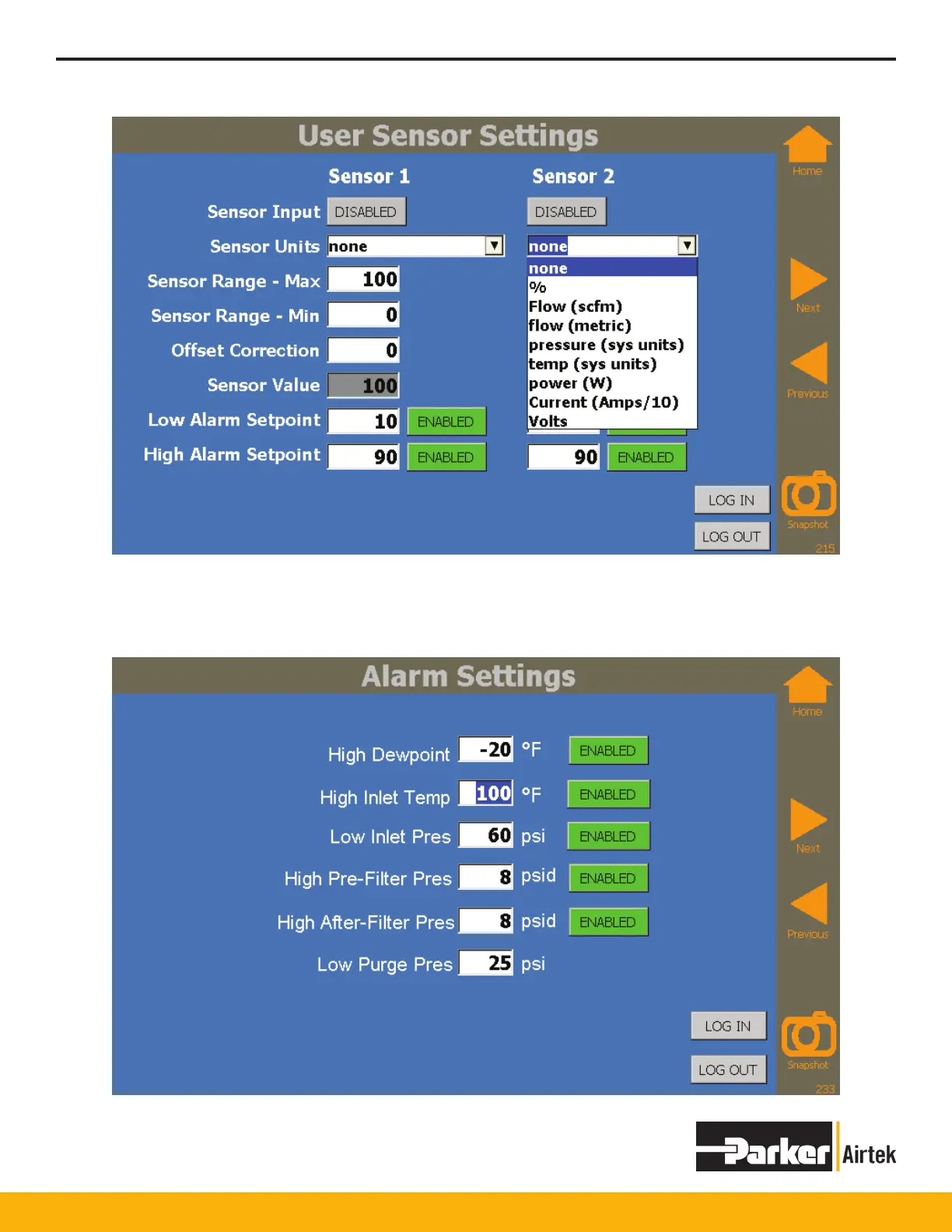

User Sensor Settings
There are two 4-20 mA inputs on the PLC for the user.
If Sensor #1 is selected as a Flow Meter input, its value is displayed on the Main Display
Sensors #1 and #2 real-time values are accessed from the Sensor Screen.
Alarm Settings
