10 - EN

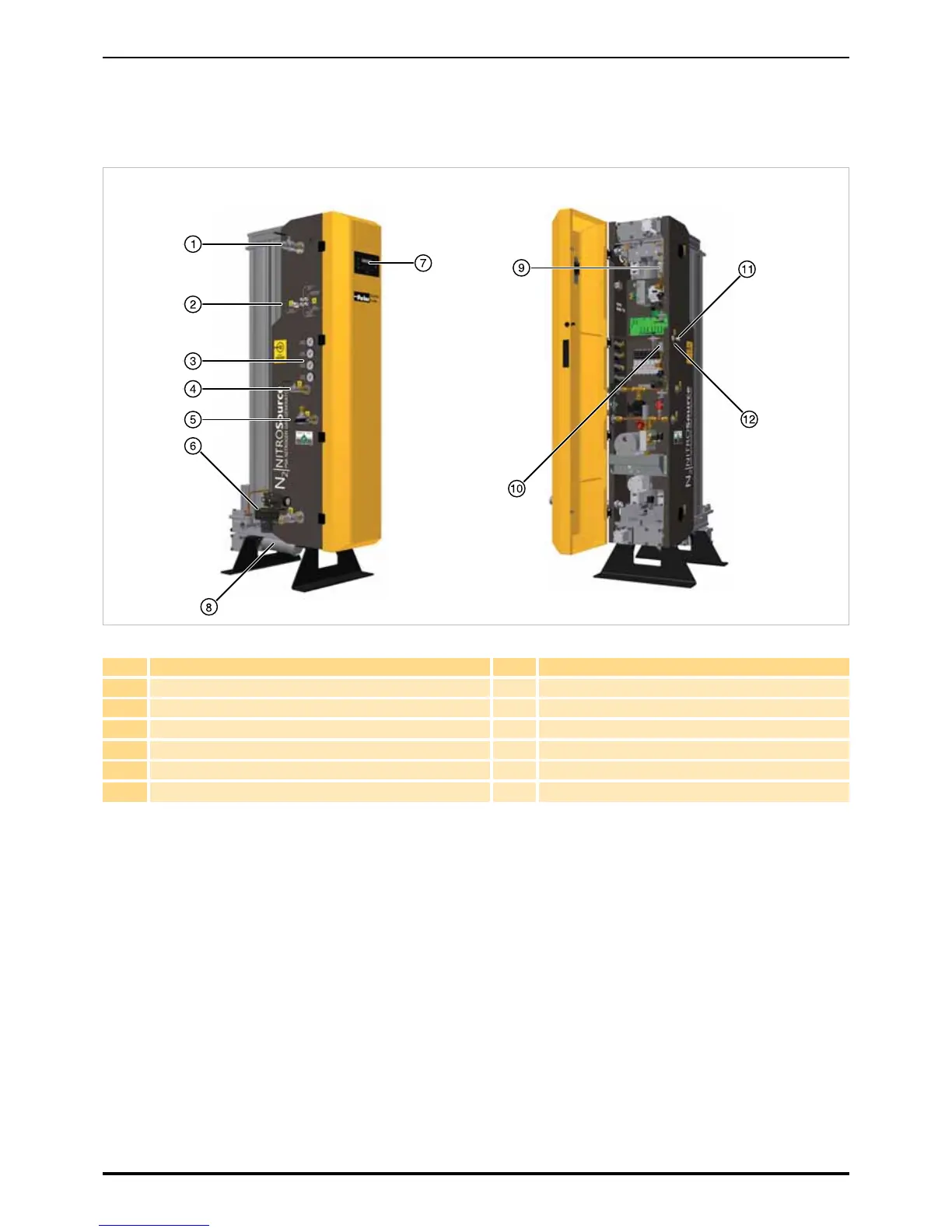

2.6 Overview of the equipment
Key:
Note. The pressure gauges are for indication only. Items #1, #4, #5, and #6 are available on both sides of the generator.
Ref Description Ref Description
1 Outlet Port: To Buffer Vessel 7 User control interface with 20 x 2 line menu display
2 Cable glands 8 Exhaust silencer
3 Pressure gauges 9 Oxygen Dependant Switching (EST) Sensor (if fitted)
4 Inlet Port: From Buffer Vessel 10 Oxygen Sensor
5 Outlet Port: Nitrogen Outlet 11 4 - 20mA Cable gland
6 Inlet Port: Compressed Air Inlet with Pressure Regulator (supplied) 12 Calibration port
