STARTING THE ENGINE
(FIG. 18-21):
Push the fuel lever G to the
right (On position).
Push the choke lever H to the
left; closing the choke for initial
start-up.
NOTE: Do not use the choke
if the engine or air tempreture
is warm.
Turn the engine switch
clockwise to the ON position.
Pull the black starting rope
handle gradually until you
feel resistance; then make a
rapid pull.
NOTE: Return the starting
rope handle gently to prevent
damage to the starter
assembly.
Do not pull the rope all the
way out as this can damage
the starter assembly.
Let the engine idle for a short
while to preheat before pushing
the choke lever J to the right.
STOPPING THE ENGINE
(Fig 24-25):
In an emergency turn the
engine switch L anticlockwise
to the OFF position to stall the
engine.
To stop the appliance normally
use the following sequence.

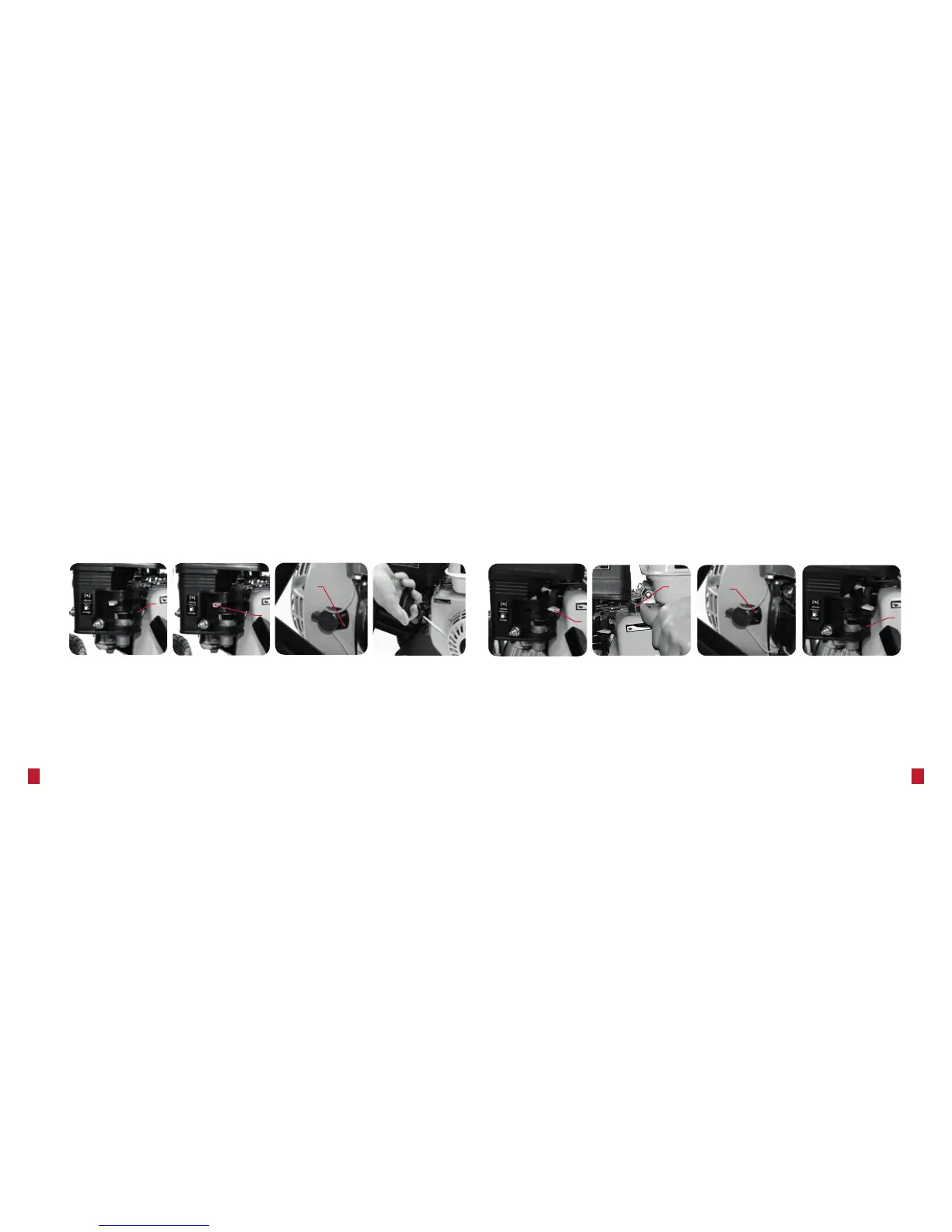

FIG. 18 FIG. 19 FIG. 20 FIG. 21 FIG. 22 FIG. 23 FIG. 24 FIG. 25
When the appliance is in
operation, the speed can be
adjusted by moving the throttle
K control lever to the high
position (indicated by a hare).
NOTE: There is a stop bracket
on the throttle control lever, do
not force this bracket as it can
damage the engine.
Turn the engine switch
anticlockwise to the OFF
position. Then slide the fuel
lever M to the right; OFF
position.
CAUTION: When you have
nished working turn off the
engine. When the machine is
switched off, always discharge
the pressure by pressing the
trigger.
