LOCATING THE UPPER FRAME
(Figs. 1.-4):
The upper handle can only be
located in one way.
Insert the upper handle into the
uprights of the lower base and
secure in place using the nuts and
securing dials provided.
TO ASSEMBLE THE WHEELS
(Figs. 5.-7):
Ensure the appliance is kept in the
upright position.
Insert the axle bar into the axle
support tube on the lower frame,
tighten the bolt to secure in place.
ASSEMBLY
NOTE: Every machine is tested during production, so there may a few drops of water inside the pump assembly.

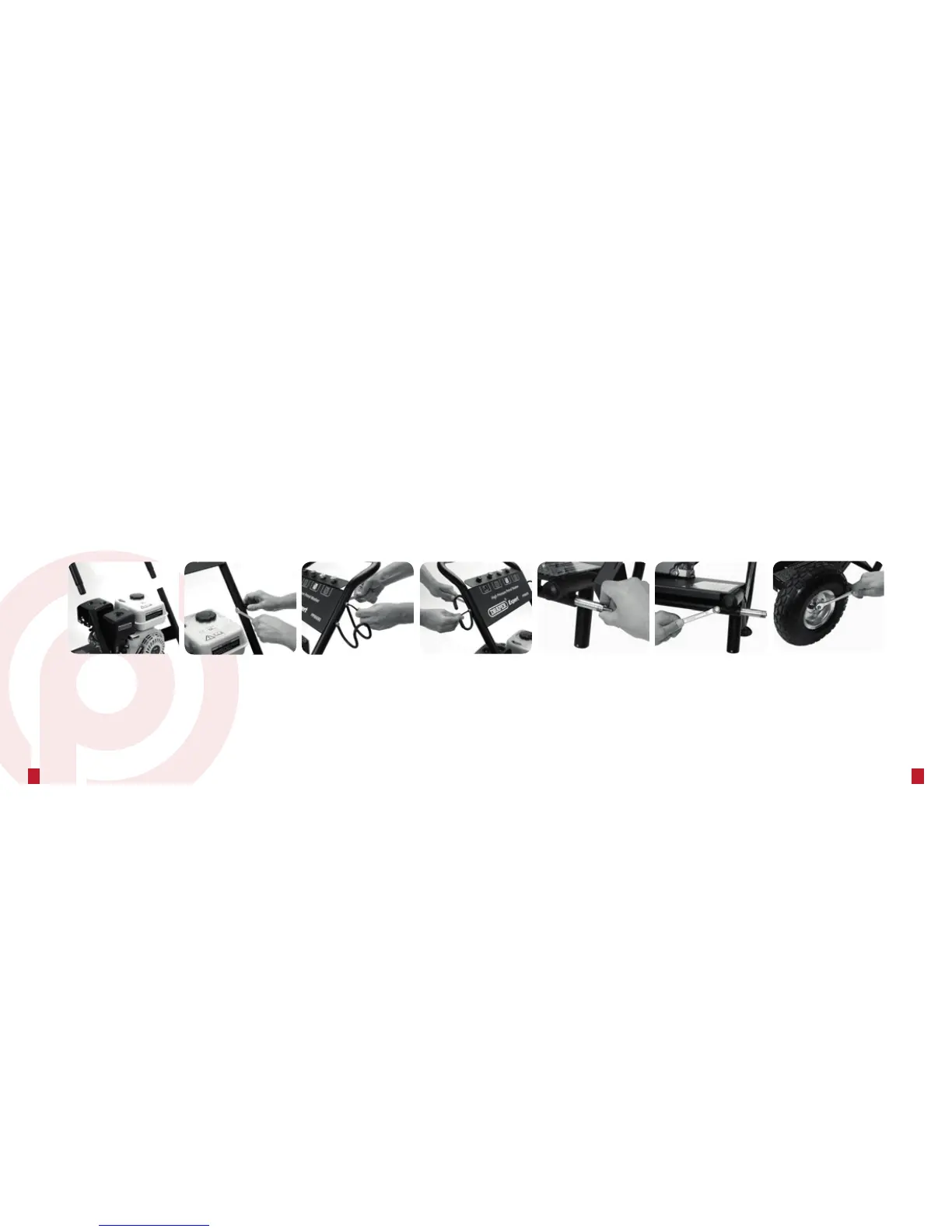

FIG. 1 FIG. 2 FIG. 3 FIG. 4 FIG. 5 FIG. 6 FIG. 7
Locate the hose and lance onto the
upper frame and secure using the
nuts and bolts provided.
Fit a wheel to the axle and secure
using the locking nut provided.
Repeat this process for each wheel.
