Parker SC Series User Manual

3
Service Bulletin 33-00C
August 2005

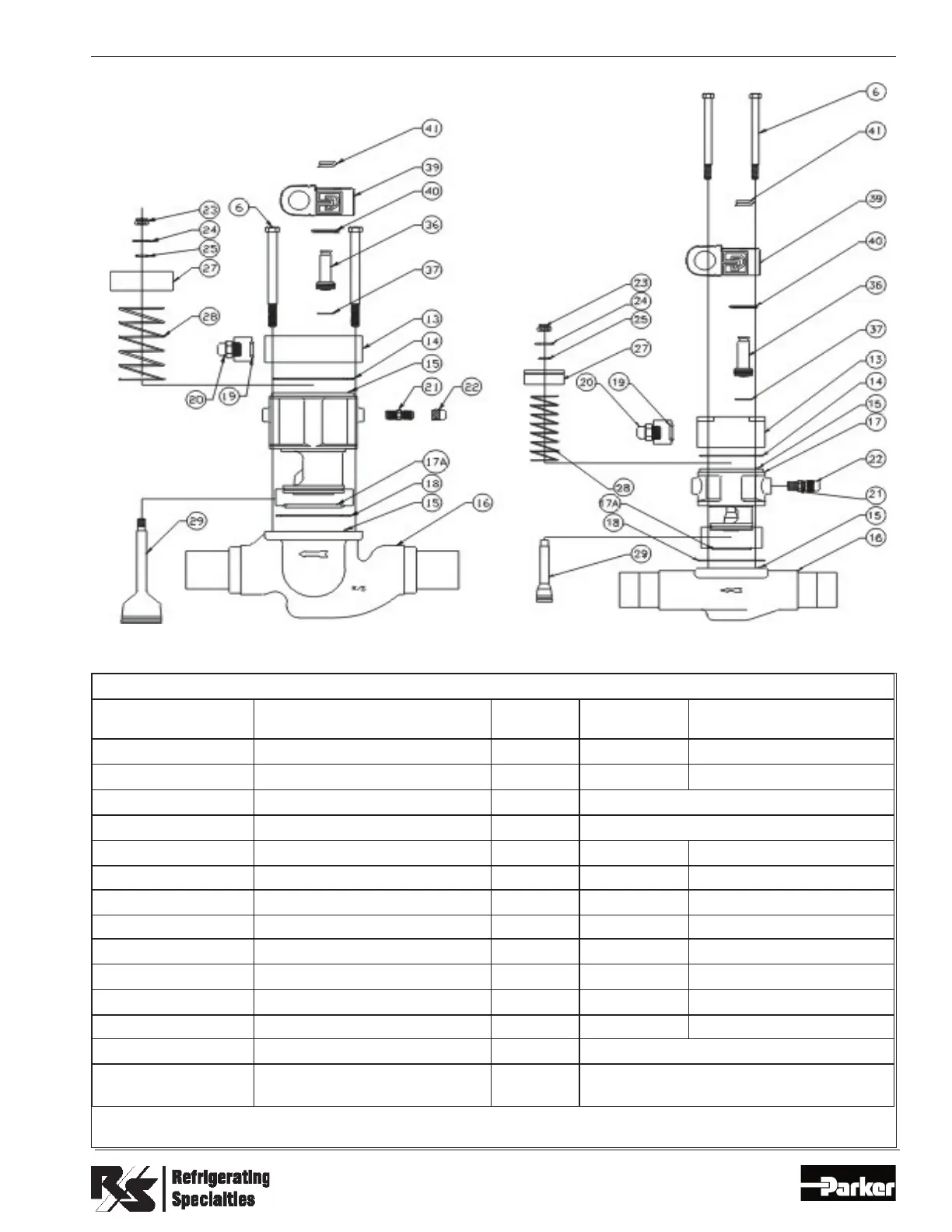

Repair Kits for SC1 and SC2 Solenoid Valves
Item No. Description Qty. SC1 3 thru 11 SC2 13 thru 21
6 Bolt Package 4 204677 204676
13,14,19,20,36,37 Adapter Assembly 1 204671 204670
15 Pin, Locating 1 N/A Separately
16 Body Assembly 1 N/A Separately
14,17,17A,18 Cartridge Kit (3/8”) - 03 1 204452 ------
14,17,17A,18 Cartridge Kit (5/8”) - 05 1 204453 ------
14,17,17A,18 Cartridge Kit (7/8”) - 07 1 204454 ------
14,17,17A,18 Cartridge Kit (1 1/8”) - 09 1 204455 ------
14,17,17A,18 Cartridge Kit (1 3/8”) -11 1 204456 ------
14,17,17A,18,26,30 Cartridge Kit (1 5/8”) - 13 1 ------ 207159
14,17,17A,18,26,30 Cartridge Kit (2 1/8”) - 17 1 ------ 207160
14,17,17A,18,26,30 Cartridge Kit (2 5/8”) - 21 1 ------ 207161
30 Items: 27,28,29 1 Only with cartridge kit
39,40,41
Coil and Housing Kit 120/60,
110/50 1 206004
