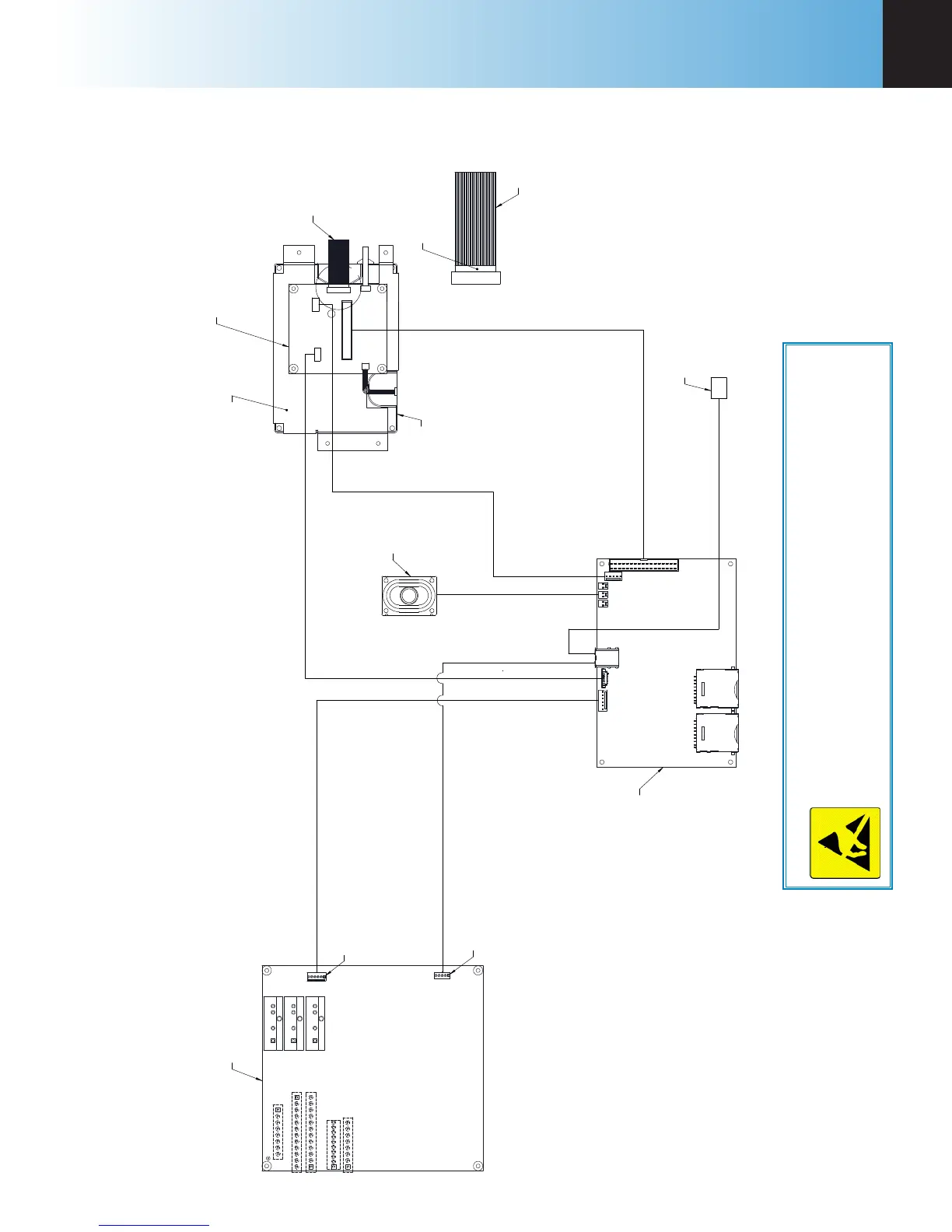

Figure 14-5
A1250DD2 Control Schematic
P8
USB PORT
J8
J10
P6
J1
A1821E
PIN #1
USB PORT
J5
J1
BOARD TO
DISPLAY CABLE
IO BOARD
A2163E LCD CABLE ASSY
J8
ASSEMBLY
A1823E TOUCH
PIN #1
J9
A2165E
BOARD
J9
J6
DETAIL "A"
LCD TRANSISTION
TRANSITION
1472DD
ON ENCASEMENT)
J1
LCD ENCASEMENT
A2164E BACKLIGHT CONTROL CABLE ASSY
J17
2147E
J19
J6
J2
J4
A2140E
(SEE SHEET 2 FOR INSTALLATION
CABLE
SPEAKER
LCD DISPLAY
SCREEN CABLE ASSY
J10
BACK PANEL
A2141E
CONTACTS ARE
EXPOSED
IN THIS VIEW
J100
A2167E USB PERIPHERAL
CABLE ASSY
CONNECTS IN LOWER PORT OF J4 ON CPU
CONNECTS IN UPPER PORT
OF J4 OF CPU
A1822E POWER CABLE ASSY
A2166E IO TO CPU USB CABLE ASSY
(RED WIRE ON CABLE CONNECTS TO PIN #1)
A2154E
CPU BOARD
A2165E
REF
A
BY
BY
SCALE
DWG NO.
DATE
DRAWN
DESCRIPTION
REVISIONS
FOR
DATE
CONTROLLER SCHEMATIC
02-22-10
NTS
6300/6400 CALORIMETER
MAW
SIZE
C
A1250DD2
COMPANY.
DRAWN IN 3rd ANGLE PROJECTION
.000 .... ±.003
APPROVED
PARR INSTRUMENT CO.
211 53rd STREET
MOLINE, ILLINOIS 61265
DO NOT SCALE DRAWING
TOLERANCES
IN INCHES
UNLESS OTHERWISE SPECIFIED
1/X .... ±1/64
.00 .... ±.010
OR BETTER
64
MACHINED SURFACES:
UNMARKED RADII .03"
ANGULAR ... ±1/2°
PROPRIETARY
NEITHER THE DRAWING
NOR INFORMATION
CONTAINED HEREIN
MAY BE COPIED,
REPRODUCED, OR
OTHERWISE USED
WITHOUT WRITTEN
PERMISSION FROM
PARR INSTRUMENT
SHEET 1 OF *
ATTENTION:
Electrostatic Discharge (ESD) hazards. Observe precautions for
handling electrostatic sensitive devices.
