Parrot MULTICAN Manual

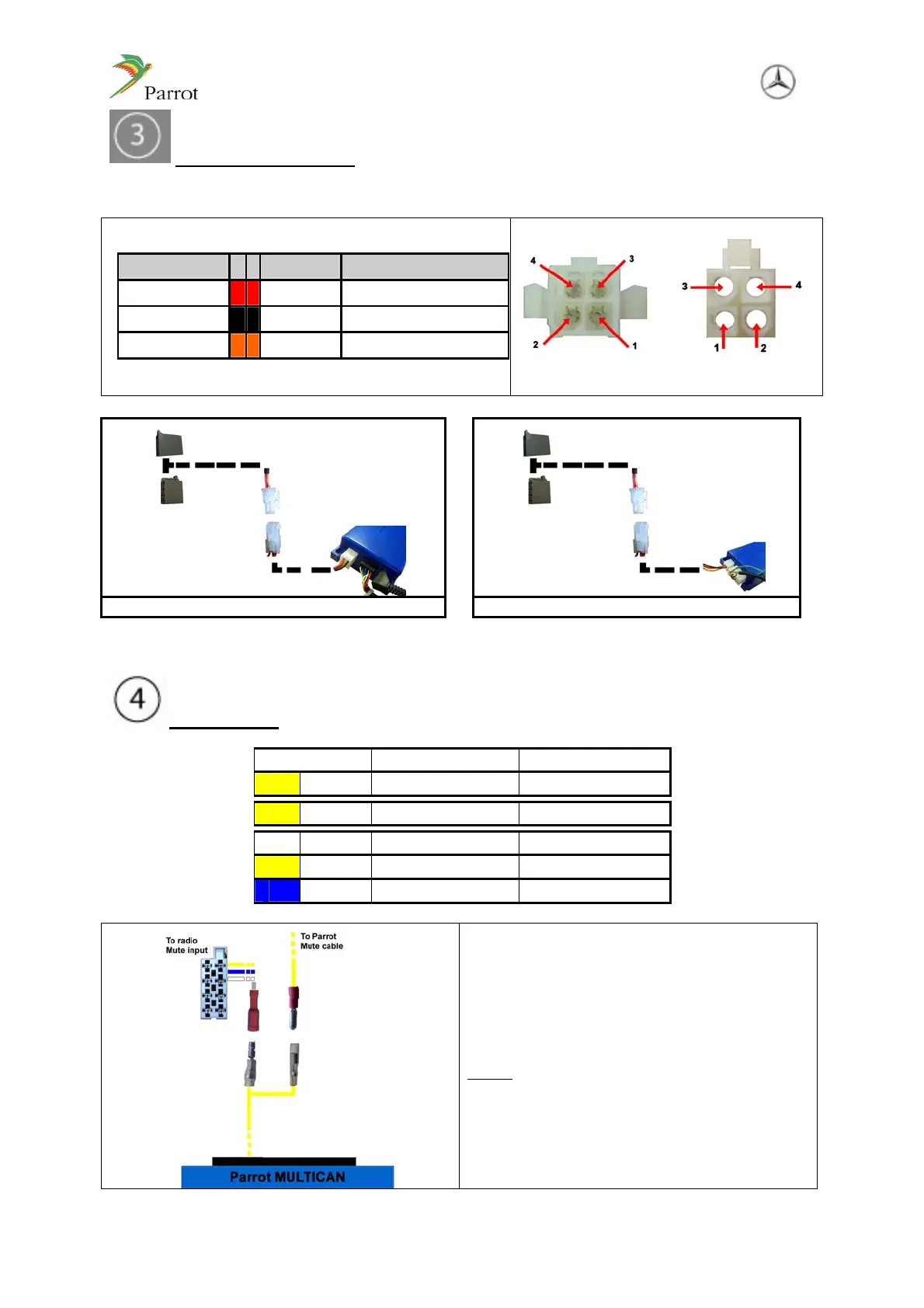

Supply connections
Important: Usually the 12v ignition is supplied by MULTICAN unit
Pin Number Colour Description
1 Red 12v Permanent
2 Black Ground
3 Orange 12v Ignition
CK3000 EVOLUTION CK3100 LCD
Connect the MULTICAN interface's power cable to the Parrot control unit and to the power
cable of the hands-free kit.
Mute input
Connect the yellow mute wire of the
MULTICAN interface :
- To the Parrot yellow mute wire
- And to the car stereo's mute input if
applicable
Notes:
If you don’t know where your mute input is, see
the usual guide of your radio or contact your
Mercedes dealer for having the correct position
of mute input.
Colors Cable Description
Yellow Mute cable Mute Output
Yellow MULTICAN cable Interface Mute input
White ISO Power cable Mute input 1
Yellow ISO Power cable Mute input 2
Blue ISO Power cable Mute input 3
